Utility [08/2014 - ]

HINT:

• When an item is memorized in the Charge Cancel History, the next time the power switch is turned on (IG) a message is displayed on the multi-information display as "CHARGE RESULT:".
• Reading the freeze frame data that is recorded at the time when a charging failure occurs helps determine the cause of plug-in charging failure (canceled, delayed, etc.).

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Enter the following menus: Powertrain / Plug-in Control / Utility / Charge Cancel History.
4. Referring to the following table, confirm the "Charge Cancel History".
   USER OPERATION (CONNECTOR RELATED)



   Tester Display [Multi-information Display]	Accumulated total memory	Memorization Condition
   		Possible Cause		Action to be Taken
   Charges Canceled (Charge Connector Not Engaged Properly) [CHARGE STOPPED DUE TO CHARGE CONNECTOR OPERATION]	Stored	During plug-in charging, the latch release button on the charging connector is pressed longer than a certain period of time before the HV battery becomes fully charged.
   		Vehicle	Service life of engagement parts on the charging connector or charging inlet	Inspect the charging cable. Refer to INSPECTION [08/2014 - ]
   			PISW circuit malfunction (open/short)	Check PISW signal circuit. Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2014 - ]
   		User	Charging connector connection not secured properly Latch release button pressed too long (mis-operation)	Interview customer and provide instruction on usage
   Charges Canceled (Power Failure) [CHARGE STOPPED DUE TO OUTAGE OR PLUG REMOVE]	Stored	During plug-in charging, AC power is cut off (including voltage drop) or CPLT (control pilot signal) cannot be received with the charging cable correctly connected.
   		Vehicle	Charging cable internal malfunction	Inspect the charging cable. Refer to ON-VEHICLE INSPECTION [08/2014 - ]
   			CPLT (control pilot signal) circuit malfunction (open/short)	Check Control Pilot Signal Circuit. Refer to Control Pilot Signal Circuit [08/2014 - ]
   		Charging environment	Plug disconnected Power outage	Interview customer and provide instruction on usage
   			Charging station self-diagnosis error	Check the charging station Charge with the charging cable provided with the vehicle
   		User	Charging connector disconnected	Interview customer and provide instruction on usage

   CHARGING CABLE/CHARGING EQUIPMENT



   Tester Display [Multi-information Display]	Accumulated total memory	Memorization Condition
   		Possible Cause		Action to be Taken
   Charges Canceled (AC Line) [CHARGE STOPPED DUE TO CHARGE CABLE OR OTHER]	-	AC voltage is not output for a certain period of time even though the charging cable is connected correctly and CPLT (control pilot signal) is generated.
   		Vehicle	Open in the AC line in the charging cable Open in the AC line (Electric vehicle charger assembly - Electric vehicle charger cable)	Inspect the charging cable Check AC line (Electric vehicle charger assembly - Electric vehicle charger cable). Refer to Open in AC Line [08/2014 - ]
   		Charging environment	Open in the AC line in the charging station	Check charging station Charge with the charging cable provided with the vehicle
   Charges Canceled (CCID Relay) [CHARGE STOPPED DUE TO CHARGE CABLE OR OTHER]	-	AC voltage is applied to the electric vehicle charger assembly for a certain period of time before the charging cable CCID relay is closed.
   		Vehicle	Charging cable CCID relay is stuck closed	Inspect the charging cable. Refer to ON-VEHICLE INSPECTION [08/2014 - ]
   		Charging environment	Charging station CCID relay is stuck closed	Check charging station Charge with the charging cable provided with the vehicle
   Charges Canceled (Nonstandard Cable) [CHARGE STOPPED DUE TO CHARGE CABLE OR OTHER]	-	Non-standard CPLT (control pilot signal) pulse received for a certain number of times or non-standard duty received.
   		Vehicle	Charging cable malfunction	Inspect the charging cable. Refer to ON-VEHICLE INSPECTION [08/2014 - ]
   		Charging environment	Incompatible with charging station used	Check charging station Charge with the charging cable provided with the vehicle

   OTHER



   Tester Display [Multi-information Display]	Accumulated total memory	Memorization Condition
   		Possible Cause		Action to be Taken
   Charges Canceled (Battery Temperature) [CHARGE COMPLETE (RESTRICTED DUE TO BATT. TEMP.)]	Stored	HV battery temperature is too high and SOC is too low when charging completed
   		Charging environment	Drop in SOC at full charge due to extremely hot HV battery	Explain to the customer that SOC at full charge drops if the HV battery is too hot
   Charges Canceled (Rated Electricity Power Supply) [CHARGE STOPPED DUE TO INSUFF. POWER SUPPLY]	-	AC power voltage is not as specified or 120 V outlet charge power decreased due to AC line circuit impedance, etc.
   		Vehicle	AC voltage sensor (VAC sensor) malfunction	Check VAC sensor. Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2014 - ]
   		Charging environment	Decrease in 120 V outlet charge power from the infrastructure side System voltage decreased due to use of a multi-outlet or an extension cord	Interview customer and provide instruction on usage
   Charges Canceled (+B) [CHARGE STOPPED TO PROTECT BATTERY DUE TO HI ELEC. CONSUMP.]	Stored	During plug-in charging, HV battery charge power drops and low SOC is detected.
   		Vehicle	Discharged auxiliary battery	Turn the power switch on (READY) and leave the vehicle for 15 min (to charge the auxiliary battery) Explain to the customer that the auxiliary battery will discharge when the vehicle is left without being started for a long time. Inspect auxiliary battery. Refer to ON-VEHICLE INSPECTION [08/2014 - ]
   		User	SOC dropped because auxiliary power consumption increased due to the use of accessories or turning the power switch on (IG)	Explain to the customer to minimize auxiliary power consumption during plug-in charging
   Charges Canceled (System) [ - ]	-	System malfunction is detected if plug-in charging status cannot be switched to start or the auxiliary battery is discharged (including large auxiliary load).
   		Vehicle	Discharged auxiliary battery	Inspect auxiliary battery. Refer to ON-VEHICLE INSPECTION [08/2014 - ]

   DELAYED



   Tester Display [Multi-information Display]	Accumulated total memory	Memorization Condition
   		Possible Cause		Action to be Taken
   Charges Delayed (Charge Control Value Low) [ - ]	Stored	During plug-in charging, WIN (charge control value) remains low for a certain period of time.
   		Charging environment	WIN (charge control value) decreased due to extremely low or high temperature environment	Explain to the customer that charge time may be longer depending on ambient temperature
   Charges Delayed (+B) [ - ]	Stored	When charge power being monitored is compared to outlet charge power from the electric vehicle charger assembly, auxiliary power consumption exceeding the allowable auxiliary power consumption is detected.
   		User	Charge power dropped because auxiliary power consumption increased due to the use of accessories or turning the power switch on (IG)	Explain to the customer to minimize auxiliary power consumption during plug-in charging
   Charges Delayed (Charger Output Low) [ - ]	Stored	Outlet charge power remains constant for a certain period of time when target charge power is constant.
   		Vehicle	Electric vehicle charger assembly internal thermistor malfunction	Replace Electric vehicle charger assembly. Refer to COMPONENTS [08/2014 - ]
   		Charging environment	Electric vehicle charger assembly output limitations in extremely hot environments System voltage decreased due to use of a multi-outlet or an extension cord	Interview customer and provide instruction on usage

HINT:

• Up to three of the most recent data for each "Charge Cancel History" group (user operation (connector related), charging cable/charging equipment, others, and delay) is recorded as freeze frame data.
• The latest "Charge Cancel History" freeze frame data can record data at the time a charging failure is detected as well as up to 3 seconds from that point. Freeze frame data is useful when performing troubleshooting or interviewing a customer because the plug-in charging failure condition (canceled, delayed, etc.) and user operation condition can be accurately confirmed by reading it. It can also be useful when performing a reproduction test.
• With the latest "Charge Cancel History" freeze frame data, the charging failure detection point changes between point 3 and 4 depending on the conditions.

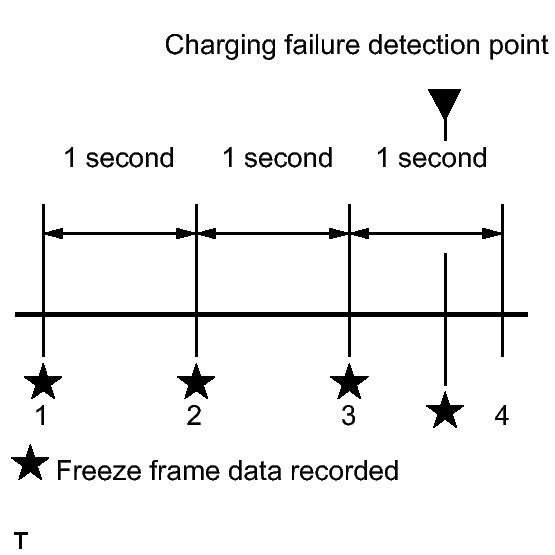

  Fig 1: Identifying Charge Cancel History Freeze Frame Data

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Enter the following menus: Powertrain / Plug-in Control / Utility / Charge Cancel History.
4. Select "Charge Cancel History" to display the freeze frame data for the time a plug-in charge failure (canceled, delayed, etc.) occurred.
5. Check the freeze frame Data recorded with the Charge Cancel History.
   CHARGE CANCEL HISTORY FREEZE FRAME DATA



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Charging Control Status	Charge control status/ 0, 1, 2, 3 or 4	0: Initial state 1: Start 2: Charging 3: Interrupted 4: End	Progress of charging sequence can be checked.
   On-Board Charger Input Voltage	Effective AC voltage (VAC sensor value) input to the electric vehicle charger assembly from the charging inlet/ V	Almost the same as rated voltage	Whether input voltage was too low or the voltage output from the electric vehicle charger assembly was too low (due to boost circuit malfunction, etc.) can be checked. The VAC sensor is located inside the electric vehicle charger assembly and sends a signal to the plug-in charge control ECU assembly via the electric vehicle charger assembly.
   On-Board Charger Stopping Input Voltage	Effective AC voltage (VAC sensor value) input to the electric vehicle charger assembly from the charging inlet when the charger is not operating/ V	Almost the same as rated voltage	-
   Rated Electricity Power Supply	Rated power for charging when the electric vehicle charger cable assembly is connected/ kW	1.44 kW: Rated power AC 100 V 2.00 kW: Rated power AC 200 V	The rated power appropriate for the capacity of the electric vehicle charger assembly is set based on the AC voltage and rated amperage.
   Current Upper Limit Value	Upper limit of amperage which can be input from the EVSE (charging station)/ A	-	ILMT duty value requested by the plug-in charge control ECU assembly to the electric vehicle charger assembly at the ILMT terminal.
   Charger Output Current	Amperage (ICHG sensor value) output from the electric vehicle charger assembly/ A	-	The ICHG sensor is located inside the electric vehicle charger assembly and sends a signal to the plug-in charge control ECU assembly via the electric vehicle charger assembly.
   Offset Value of Charger Output Current	Offset value of amperage (ICHG sensor value) output from the electric vehicle charger assembly/ A	-	-
   Charger Output Voltage	Voltage (VCHG sensor value) output from the electric vehicle charger assembly/ V	-	The VCHG sensor is located inside the electric vehicle charger assembly and sends a signal to the plug-in charge control ECU assembly via the electric vehicle charger assembly.
   Auxiliary Battery Voltage	Auxiliary battery voltage/ V	10.0 to 15.0 V: Always	-
   SOC	HV battery state of charge/ %	0.0 to 100.0%: Always	-
   Battery Minimum Temperature	HV battery minimum temperature/ °C	-	Low HV battery temperature may be the cause of charge time delay.
   Plug-in Charge Start Signal	Power source condition of plug-in charge system/ ON or OFF	ON: Power ON OFF: Power OFF	An activation signal generated by the plug-in charge control ECU assembly.
   Battery Current	HV battery current/ A	-170 to 230 A: Always	HV battery current monitored by the power management control ECU.
   Battery Current (High Accuracy)	HV battery current/ A	-27 to 13 A: Plug-in charging	HV battery current (high accuracy) monitored by the power management control ECU.
   Battery Voltage	HV battery voltage/ V	168.0 to 229.6 V: Always	HV battery voltage monitored by the power management control ECU.
   On-Board Charger Status	Electric vehicle charger assembly charging condition/ 0, 1 or 2	0: Stand-by 1: Ready 2: Abnormal interruption	Signals are input from the electric vehicle charger assembly to the plug-in charge control ECU assembly. The status of the signal has 3 patterns; Stand-by, Ready and Abnormal interruption
   Normal Charging Complete Status	Normal charging completion state/ Incomp or Complete	Incomp: Normal charging not complete Complete: Normal charging complete	-
   Push Charging Complete Status	Push charging completion state/ Incomp or Complete	Incomp: Push charging not complete Complete: Push charging complete	-
   CPLT Duty Ratio	Duty value of CPLT signal generated at the electric vehicle charger cable assembly side (including EVSE (charging station))/ %	-	Whether the amperage was limited to the needs of EVSE (charging station)) can be checked. Allowable amperage from EVSE (charging station) can be determined based on CPLT duty. (Allowable amperage [A] = CPLT duty value x 0.6) The plug-in charge control ECU assembly commands the electric vehicle charger assembly to limit the amperage (ILMT, etc.) based on CPLT duty value, however the allowable amperage is not exactly the same as the value obtained using the above formula.
   CPLT Pulse Time	Duration of 1 cycle of CPLT/ μs	980 to 1020 μs: CPLT (control pilot signal) generated	Whether a non-standard cable was used can be checked.
   CPLT Status	Generation of CPLT (control pilot signal)/ ON or OFF	ON: CPLT (control pilot signal) generated ON: CPLT (control pilot signal) not generated	-
   Target Charge Power	Charging power target value/ kW	-	-
   Request Charge Power	Charging power command sent from the plug-in charge control ECU assembly to the electric vehicle charger assembly/ kW	0.00 to 2.00 kW	-
   Charge Control Value	WIN (charge control value) of chargeable HV battery/ kW	-	Whether charging is limited by HV battery control can be checked. Positive value indicates charging.
   Charge Control Value Limit	Charging WIN (charge control value) (HV battery side WIN (charge control value) + WIN (charge control value) when offset learning fails)/ kW	-	Whether charging is limited by HV battery control can be checked. Negatives value indicates charging.
   Request CCID Relay Connect	CCID relay connection request/ ON or OFF	OFF: CCID relay connection not requested ON: CCID relay connection requested	-
   SMR Status	SMR connection state/ Unconnect or Connect	Unconnect: SMR OFF Connect: SMR ON	-
   Request CHRB Connect	CHRB relay connection request/ ON or OFF	OFF: CHRB relay open requested ON: CHRB relay close requested	Request sent to CHRB relay excitation cable
   Request CHRG Connect	CHRG relay connection request/ ON or OFF	OFF: CHRG relay open requested ON: CHRG relay close requested	Request sent to CHRG relay excitation cable
   Charge Cable Inserted	Electric vehicle charger cable assembly insertion condition without considering ON/OFF of the latch release button (PI switch)/ ON or OFF	OFF: Electric vehicle charger cable assembly not inserted ON: Electric vehicle charger cable assembly inserted	Connection condition, open, connection failure, etc. of the electric vehicle charger cable assembly can be checked.
   Charge Cable Engaged	Electric vehicle charger cable assembly latch release button (PI switch) condition/ ON or OFF	OFF: Latch release button (PI switch) engaged when electric vehicle charger cable assembly inserted ON: Latch release button (PI switch) released when electric vehicle charger cable assembly inserted	Connection condition, open, connection failure, etc. of the electric vehicle charger cable assembly can be checked.
   Request On-Board Charger Start	Electric vehicle charger assembly activation request/ ON or OFF	OFF: Electric vehicle charger assembly deactivation requested ON: Electric vehicle charger assembly activation requested	-
   Charger Gate Request	CHEN signal (electric vehicle charger gate open/close) request/ Close or Open	Close: Electric vehicle charger gate close requested Open: Electric vehicle charger gate open requested	-
   Charging Permit Status	Charging permission status/ ON or OFF	-	-
   Charge Power Request Capability Status	Charge power request transmission status/ NG or OK	-	-
   Charging Time	Plug-in charging time/ min	-	-
   Charging Suspended Time	Duration of plug-in charging temporary cancellation/ s	-	-
   IG Status	IG condition/ ON or OFF	OFF: IG OFF ON: IG ON	-
   A/C Inverter Gate Status	A/C inverter gate status/ ON or OFF	OFF: A/C inverter gate not operating ON: A/C inverter gate operating	-
   Remote A/C Request	Remote air conditioning system request status/ ON or OFF	OFF: Remote air conditioning system not requested ON: Remote air conditioning system requested	-
   Request DC/DC Converter Stop	Hybrid vehicle converter prohibition signal/ ON or OFF	OFF: Not requested ON: Requested	-
   Auxiliary Battery Low after DC/DC Converter Stop	Drop in auxiliary battery SOC after the hybrid vehicle converter stops operating/ ON or OFF	OFF: Did not drop ON: Dropped	-
   Request Current Sensor Offset Learning	Current sensor offset learning request/ ON or OFF	OFF: Not requested ON: Requested	-
