Main Body ECU Communication Stop Mode [08/2014 - ]: Procedure

1. Turn the power switch off.
2. Disconnect the main body ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION

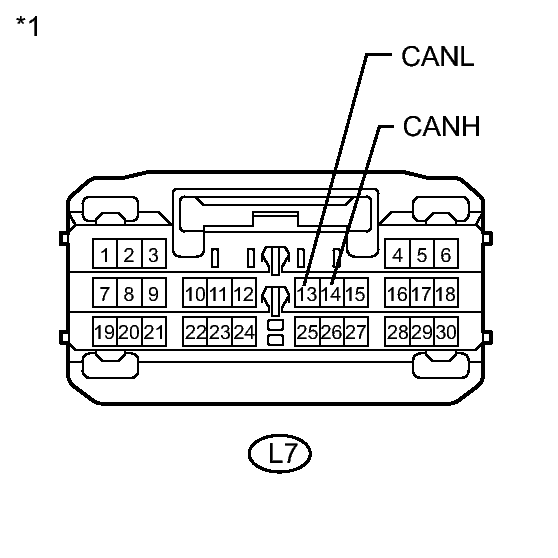

   *1	Front view of wire harness connector (to Main Body ECU)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   L7-14 (CANH) - L7-13 (CANL)	Power switch off	54 to 69 Ω

NG → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (MAIN BODY ECU BRANCH WIRE)

OK: Go to next step

1. Disconnect the instrument panel junction block connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION

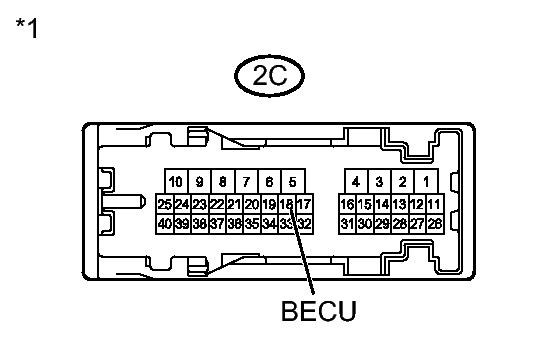

   *1	Component without harness connected (Instrument Panel Junction Block)

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   2C-18 (BECU) - Body ground	Always	11 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition

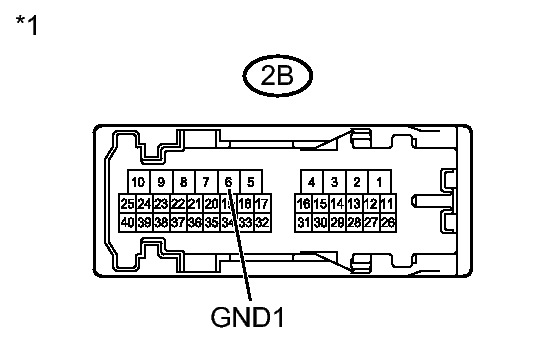

   2B-6 (GND1) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Instrument Panel Junction Block)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (GROUND CIRCUIT)

OK → See step   4
