Components [08/2014 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

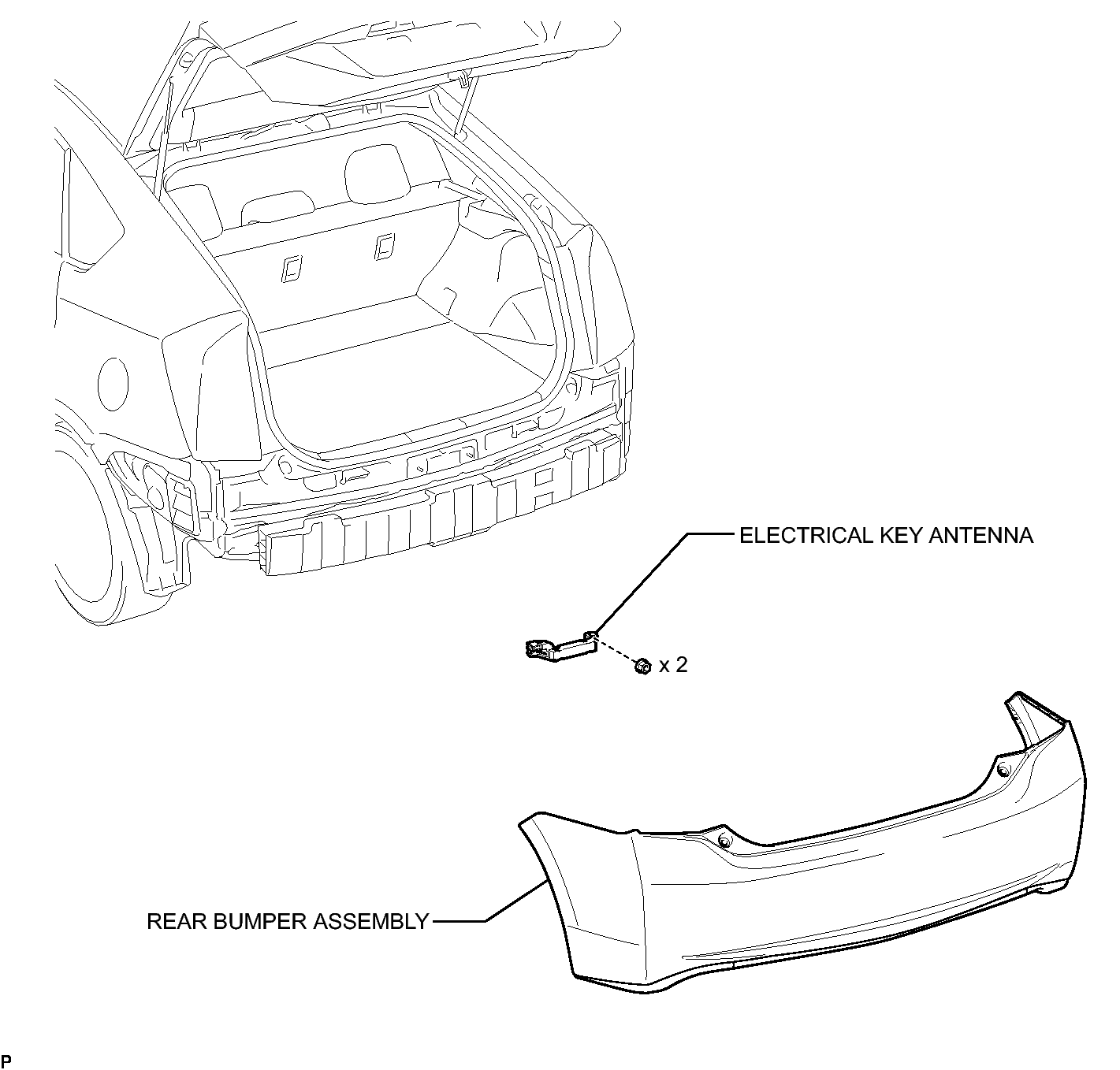

Fig 1: Electrical Key Oscillator (For Rear Side) Replacement Components
GTY326764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
