DTC B2274: ACC Monitor Malfunction [08/2014 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

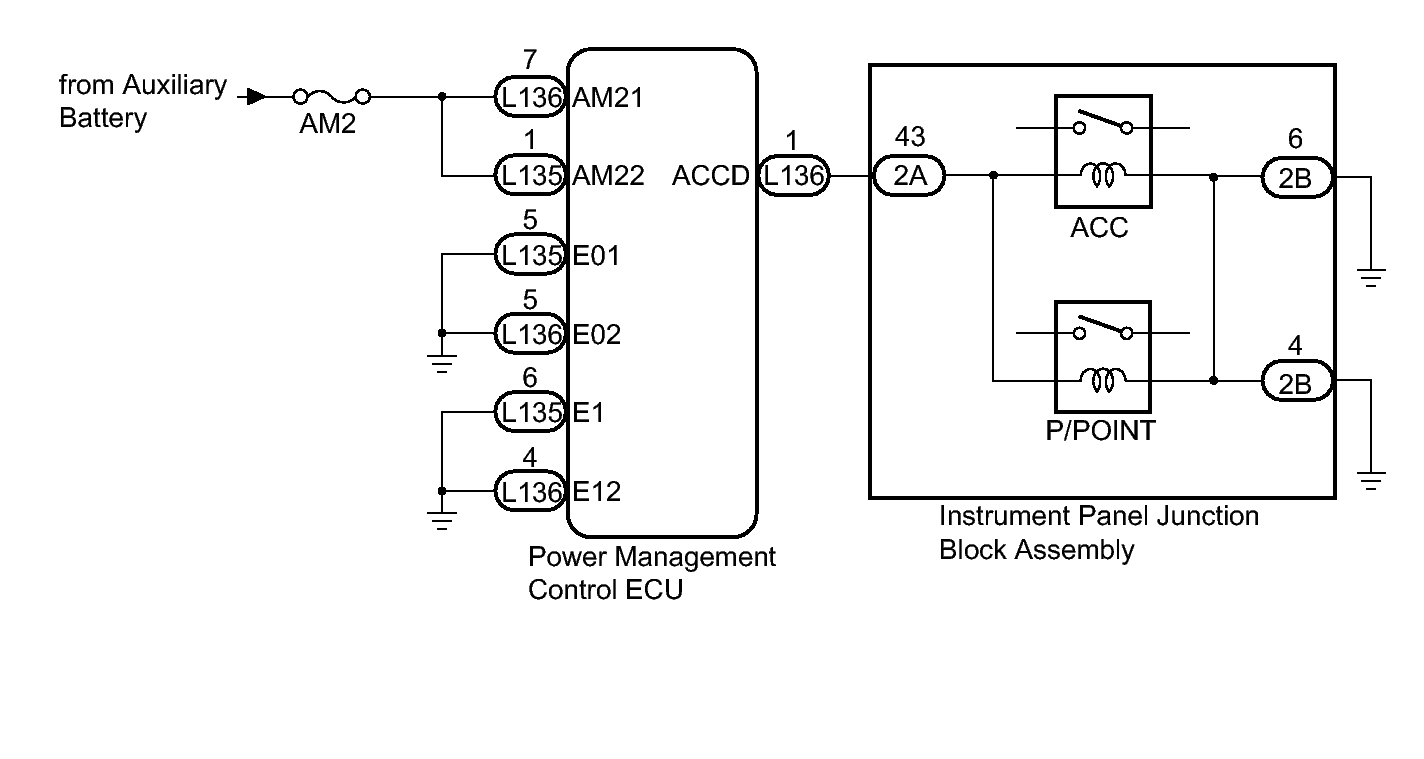

Fig 1: Identifying Power Management Control ECU Circuit Diagram
GTY331352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
