DTC U1119: Lost Communication with Object Recognition ECU (CAN) [08/2014 - ]: Wiring Diagram

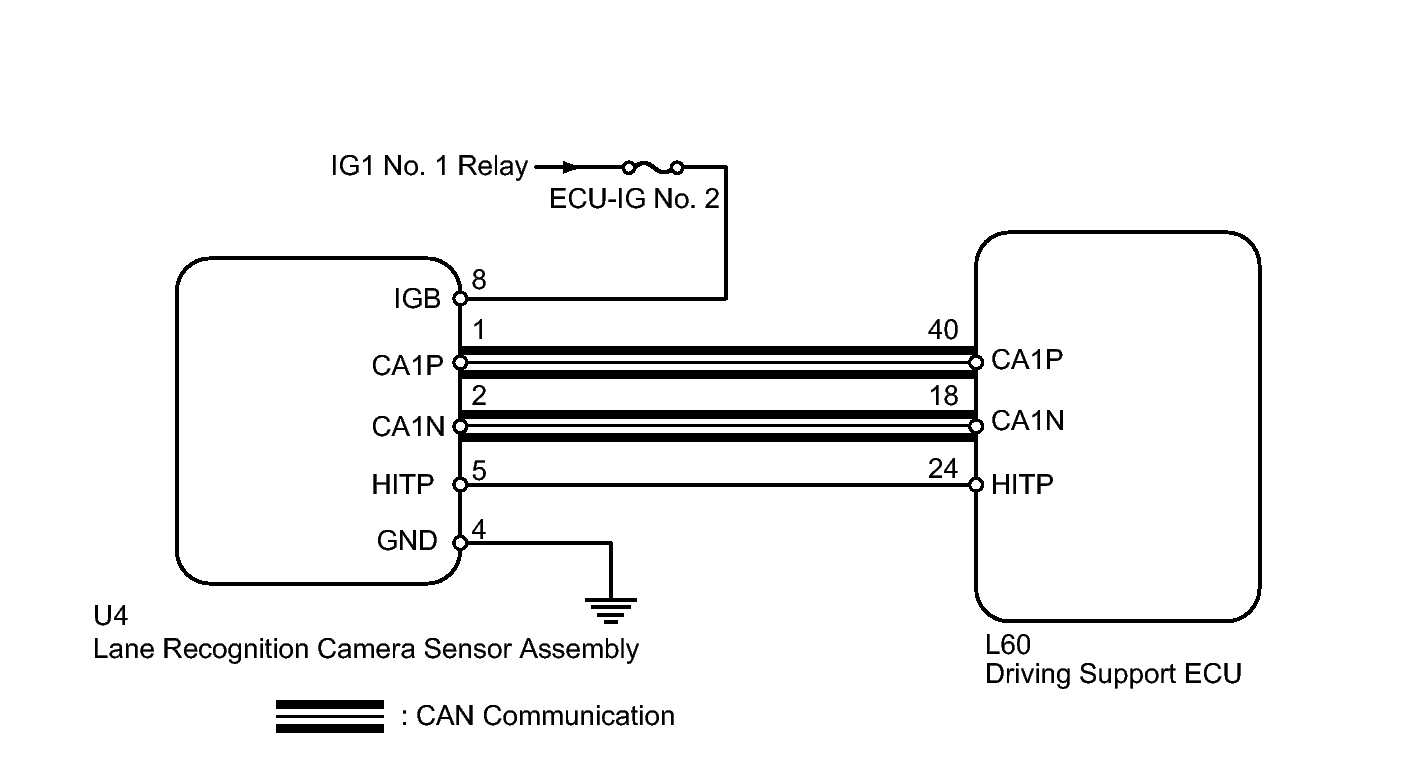

Fig 1: Identifying CAN Communication Lane Recognition Wiring Diagram
GTY473344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
