Components [08/2014 - ]: Illustration

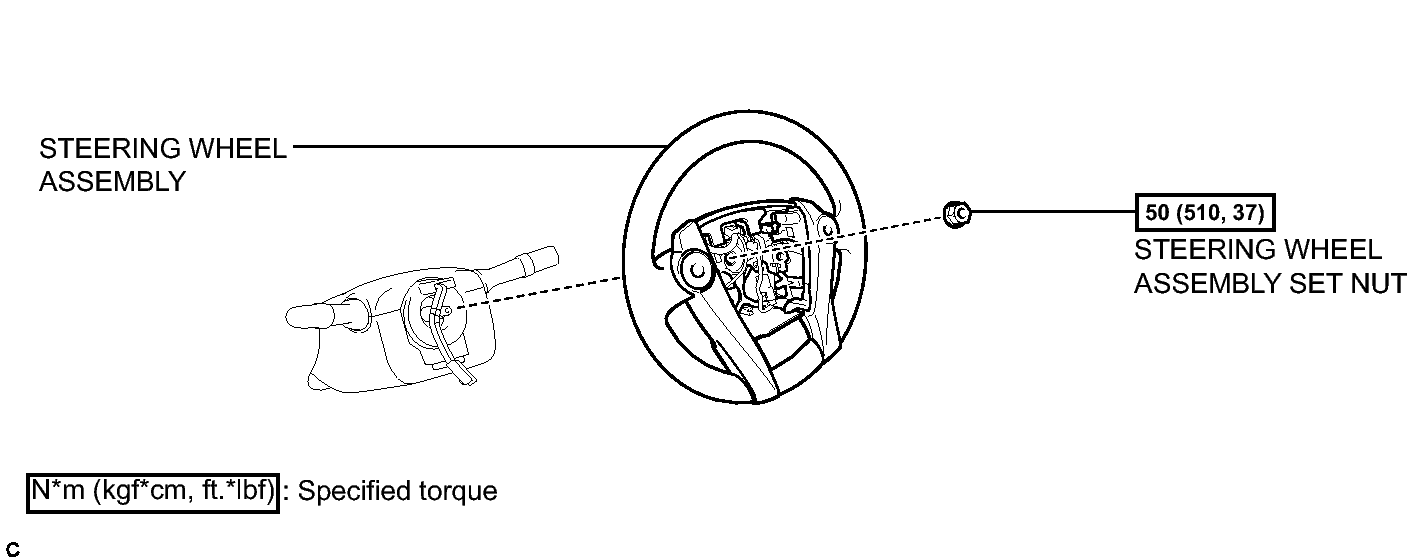

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 6)
GTY229863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

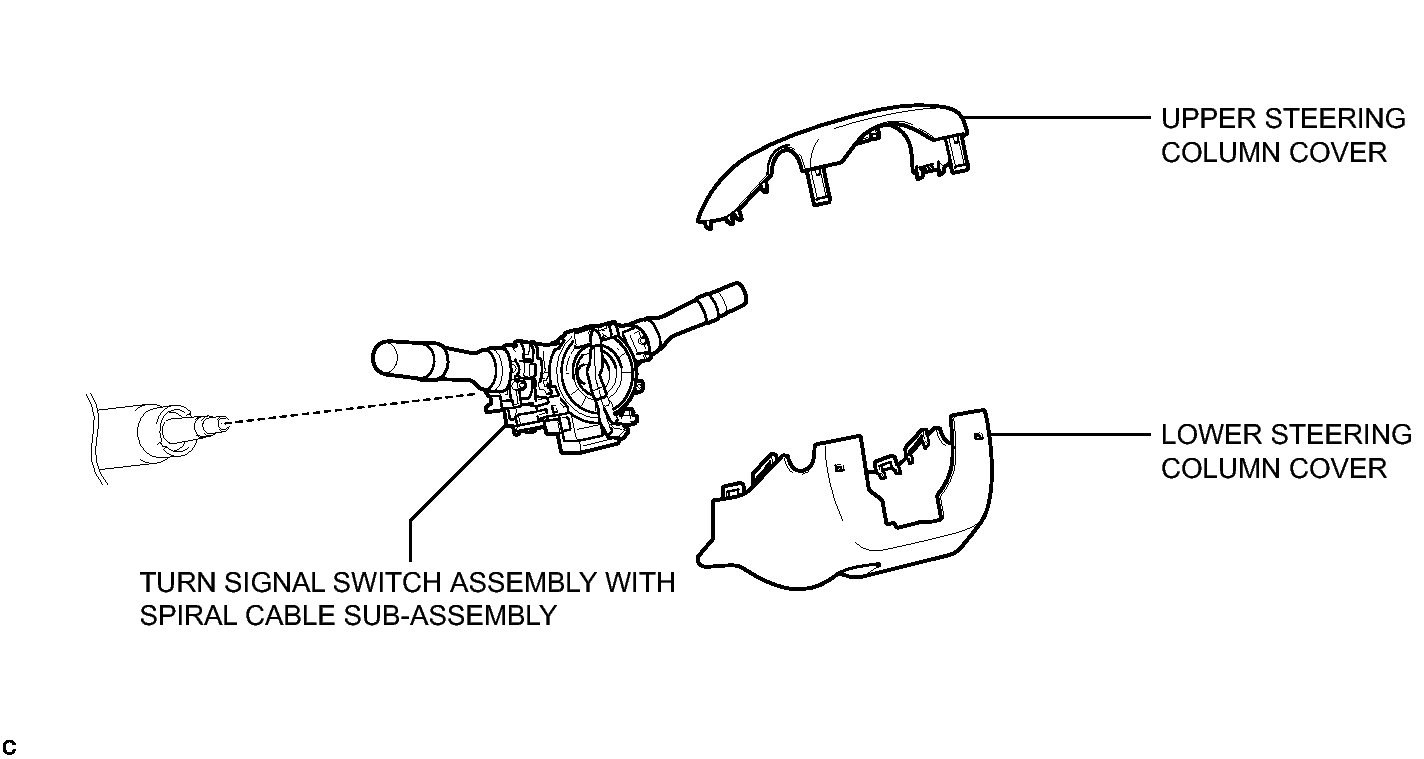

Fig 1: Identifying Steering Column Assembly Replacement Components (2 Of 6)
GTY236137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

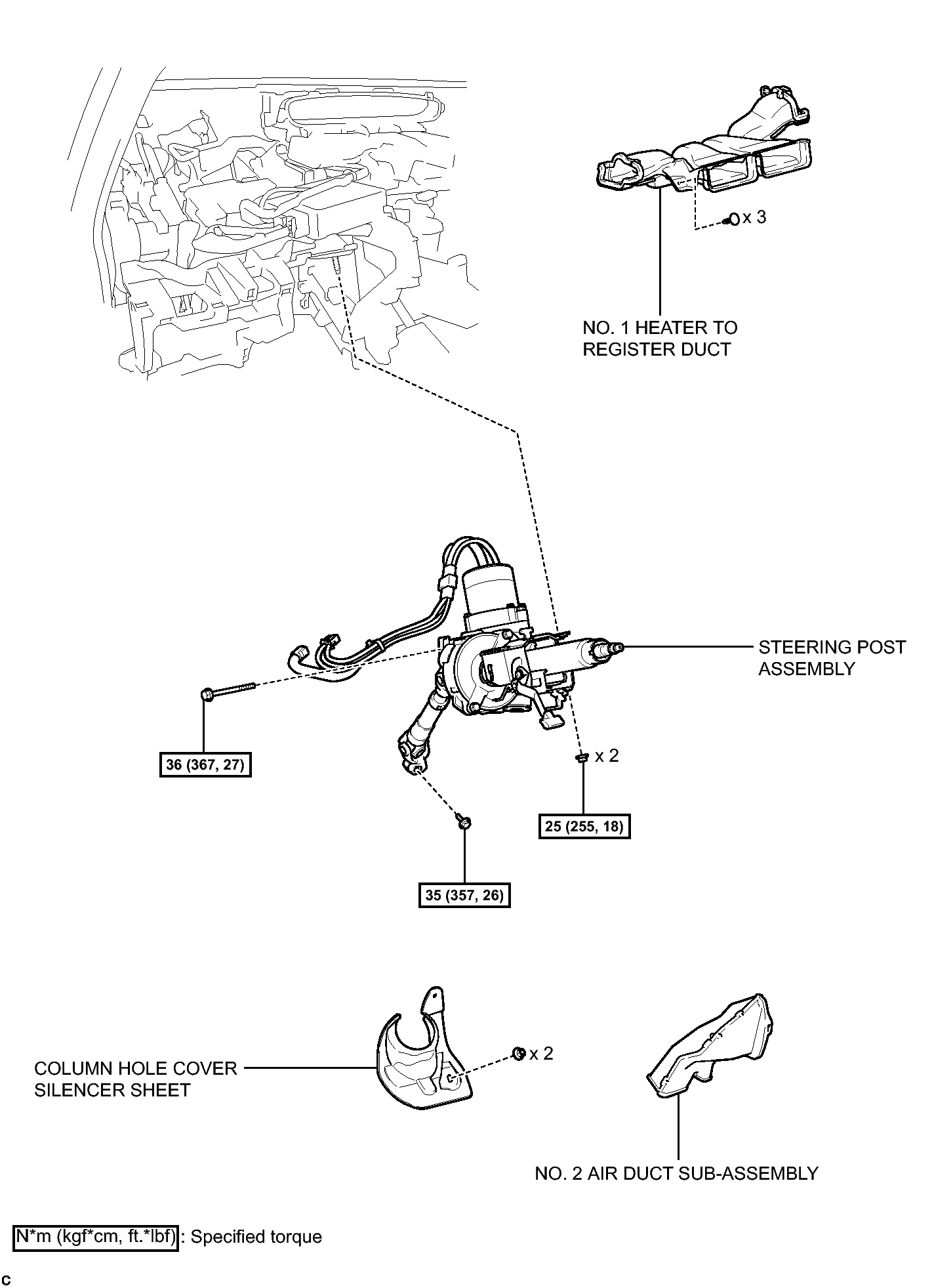

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (3 Of 6)
GTY381750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

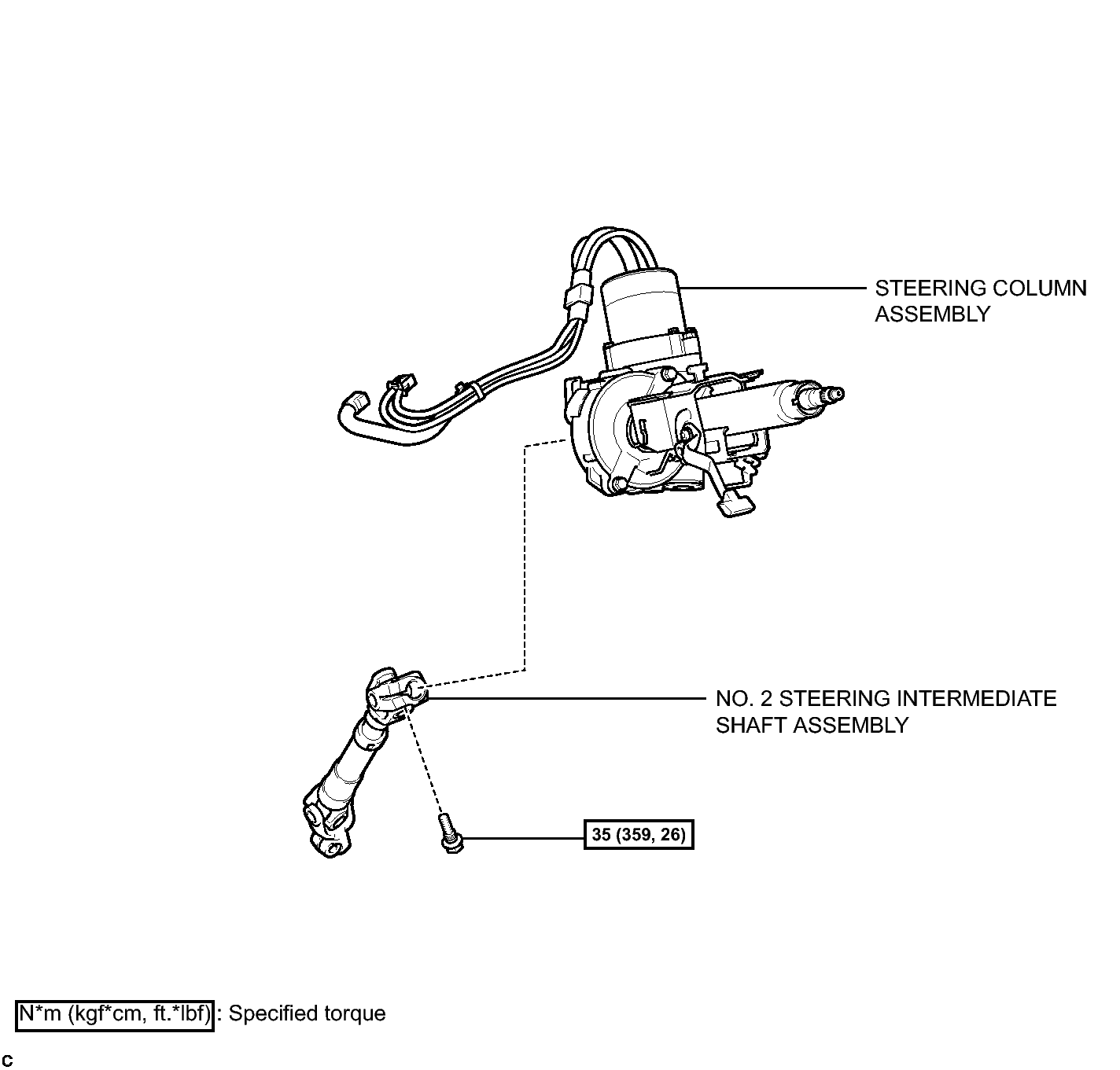

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (4 Of 6)
GTY217350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

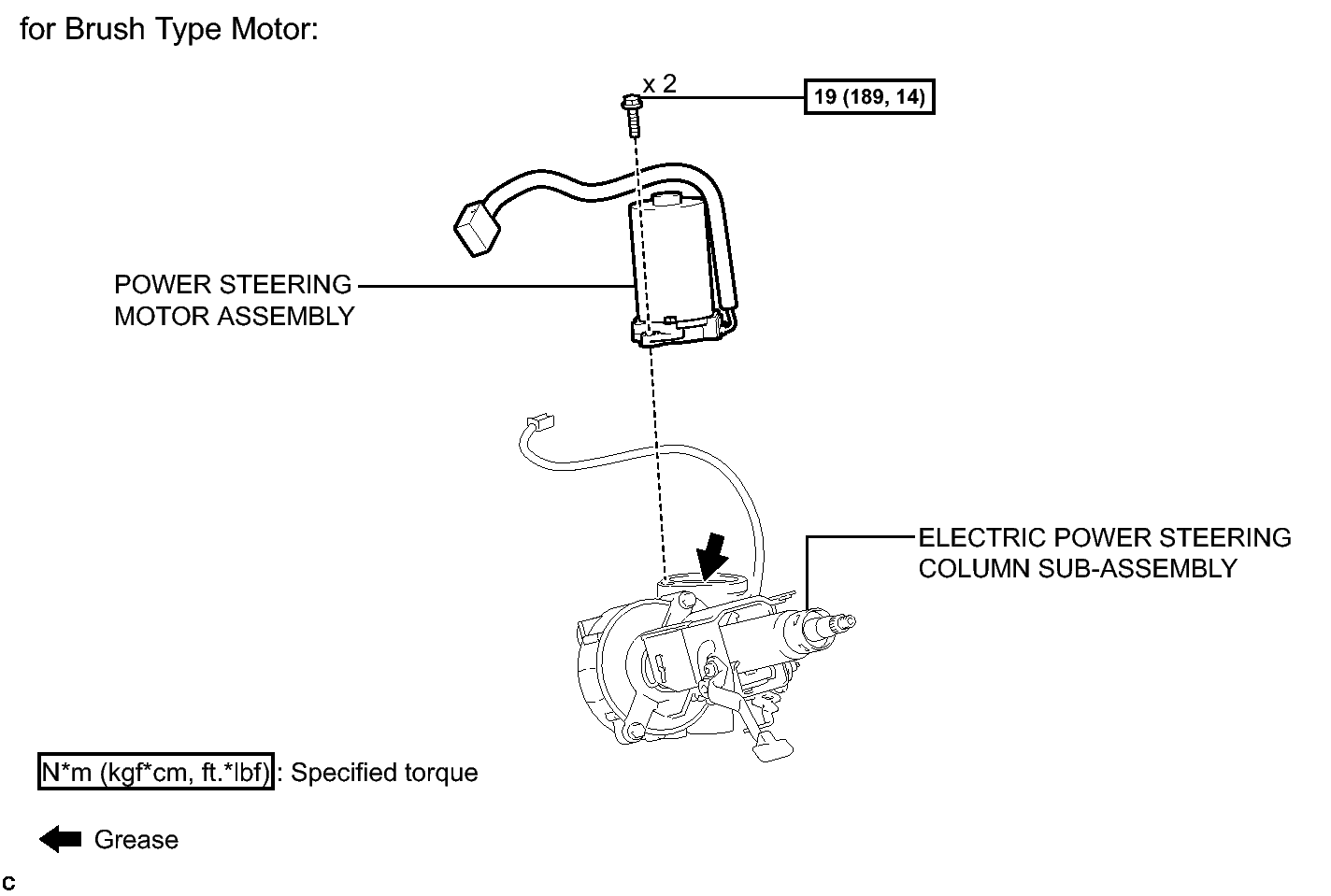

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (5 Of 6)
GTY324256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

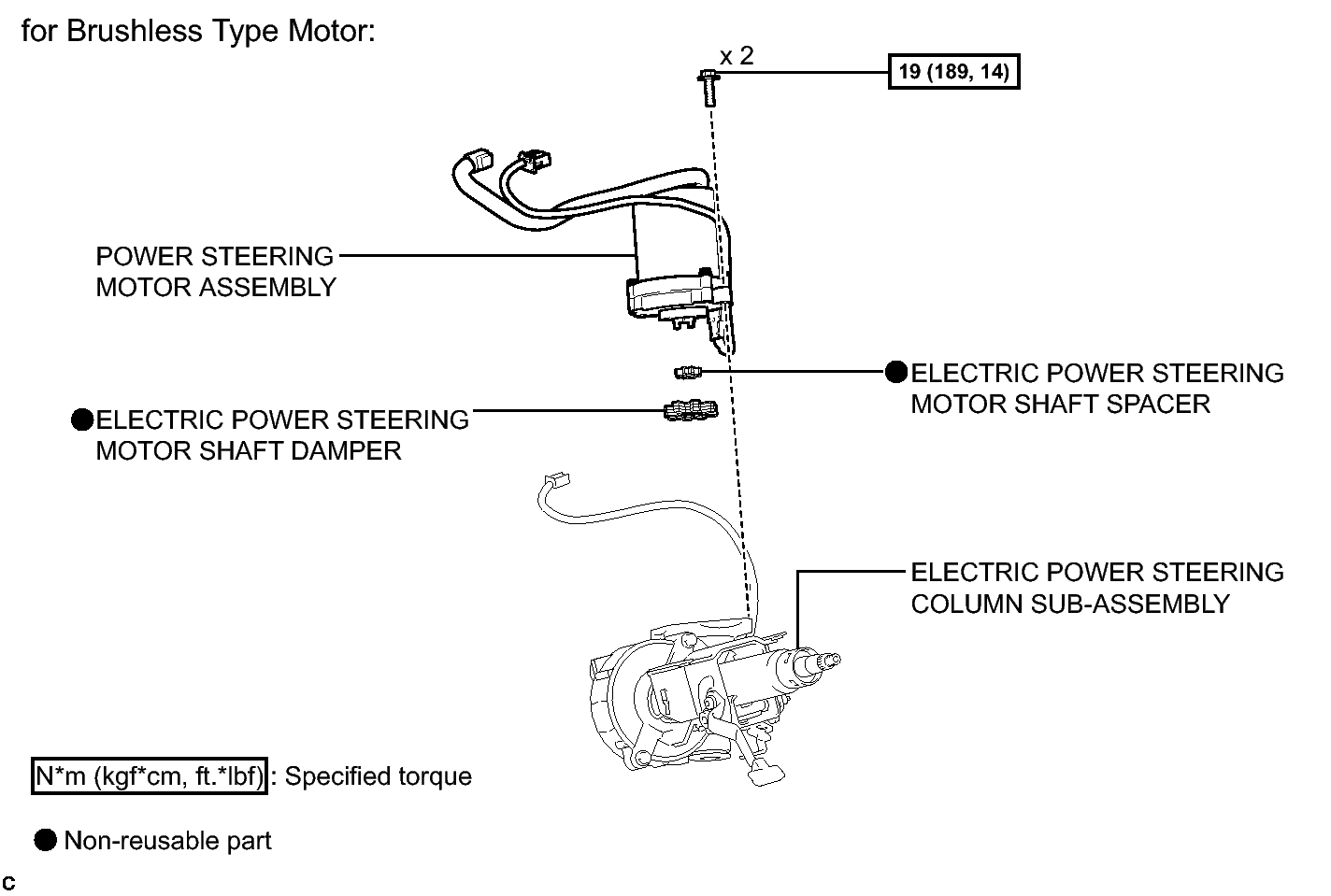

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (6 Of 6)
GTY329163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
