Driver Side Door Entry Lock and Unlock Functions do not Operate [11/2014 - ]: Procedure

1. When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK [11/2014 - ] .

   OK

   Door locks operate normally.

NG → See step   7

OK: Go to next step

1. Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.98 ft.) from the front door outside handle assembly (for driver door) and perform an entry function check. Refer to OPERATION CHECK [11/2014 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Approximately 0.3 m (0.98 ft.)

   NOTE:

   If the electrical key transmitter sub-assembly is brought within 0.2 m (0.66 ft.) of the door handle, communication may not possible.

   HINT:

   If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of electric wave interference is high. Also, added vehicle components may cause electric wave interference. If installed, remove them and perform the operation check.

   RESULT



   Result	Proceed to
   Entry function does not operate normally.	A
   Entry function operates normally.	B

B → AFFECTED BY WAVE INTERFERENCE

A: Go to next step

1. Disconnect the n1 front door outside handle assembly (for driver door) connector.
2. Disconnect the L62 certification ECU (smart key ECU assembly) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   n1-3 (ANT2) - L62-4 (CG1B)	Always	Below 1 Ω
   n1-6 (ANT1) - L62-3 (CLG1)	Always	Below 1 Ω
   n1-5 (B) - L62-32 (POS1)	Always	Below 1 Ω
   n1-2 (GND) - Body ground	Always	Below 1 Ω
   n1-3 (ANT2) or L62-4 (CG1B) - Body ground	Always	10 kΩ or higher
   n1-6 (ANT1) or L62-3 (CLG1) - Body ground	Always	10 kΩ or higher
   n1-5 (B) or L62-32 (POS1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the n1 front door outside handle assembly (for driver door) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Connect the L62 certification ECU (smart key ECU assembly) connector.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   n1-5 (B) - Body ground	Power switch off → on (IG)	9 to 12 V → Below 2 V

4. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   n1-3 (ANT2) - n1-6 (ANT1)	Procedure: Power switch off Key brought outside vehicle All doors closed Key not inside vehicle All doors locked through wireless operation	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)

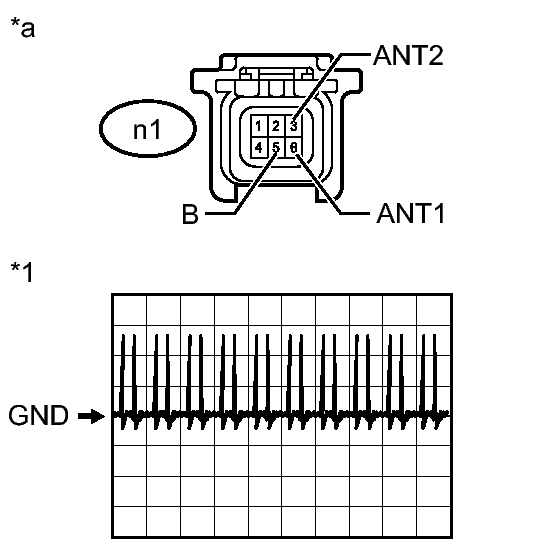

   TEXT IN ILLUSTRATION



   *1	Waveform
   *a	Front view of wire harness connector (to Front Door Outside Handle Assembly (for driver door))

NG → See step   9

OK: Go to next step

1. Temporarily replace the front door outside handle assembly (for driver door) with a new or normally functioning one. Refer to DISASSEMBLY [11/2014 - ] .

NEXT: Go to next step

1. Check that the entry functions operate normally. Refer to OPERATION CHECK [11/2014 - ] .

   OK

   Entry functions operate normally.

NG → See step   9

OK → END (FRONT DOOR OUTSIDE HANDLE ASSEMBLY WAS DEFECTIVE)
