Room Oscillator does not Recognize Key [11/2014 - ]: Wiring Diagram

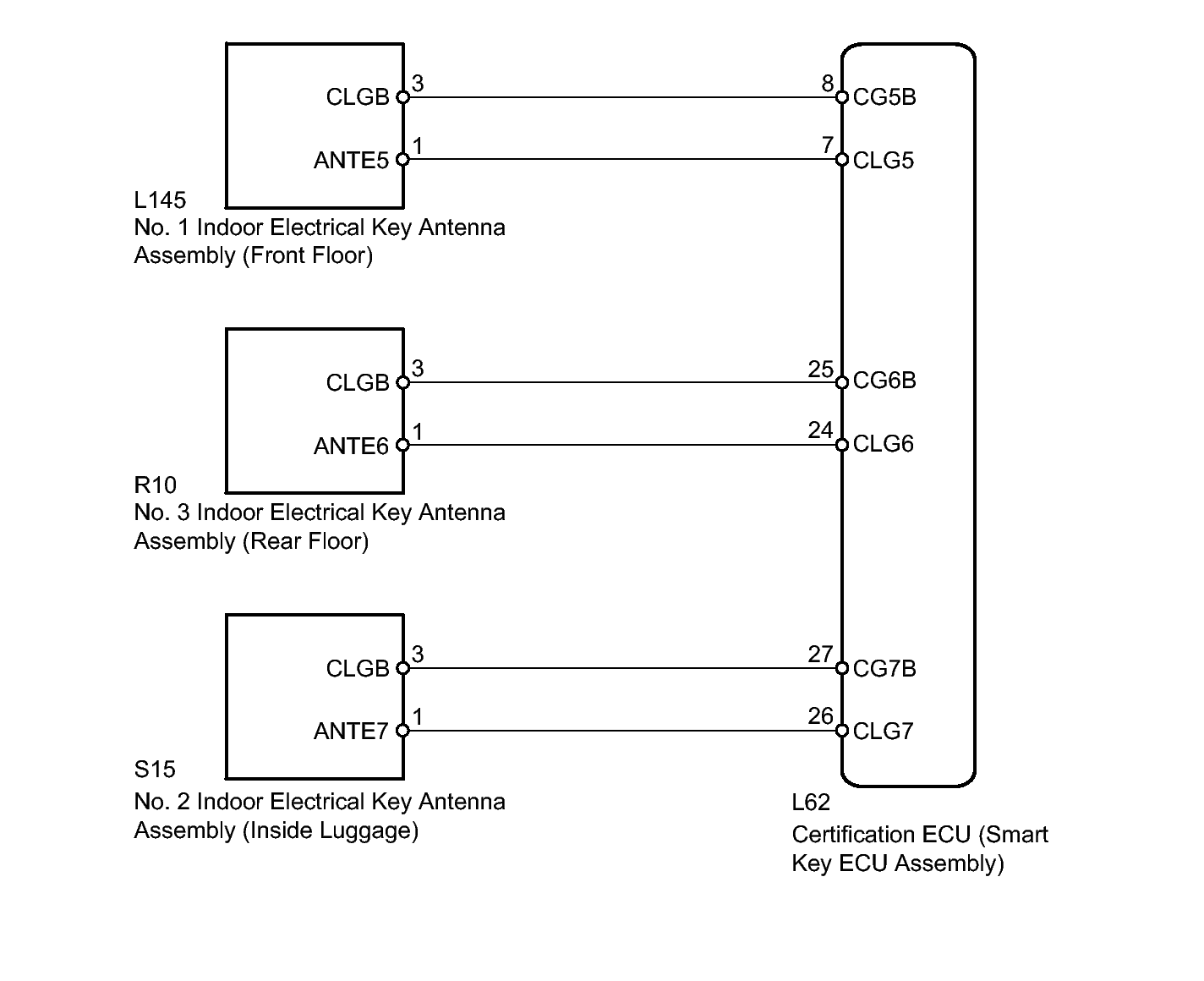

Fig 1: Indoor Electrical Key Antenna Assemblies Wiring Diagram
GTY476953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
