Operation Check [11/2014 - ]

1. When the electrical key transmitter sub-assembly (key) is in the detection area inside the vehicle and the brake pedal is depressed, the hybrid control system is started by pressing the power switch.
2. When the electrical key transmitter sub-assembly (key) is in the detection area inside the vehicle and the brake pedal is not depressed, the power source mode is changed by pressing the power switch. The power source mode changes in the following order every time the power switch is pressed: off → on (ACC) → on (IG) → off.
3. After getting into the vehicle while carrying the electrical key transmitter sub-assembly (key) when the power switch is off, if the power switch is pressed while not depressing the brake pedal, the power source mode changes to ACC and the power switch indicator illuminates in amber.
4. After getting into the vehicle while carrying the electrical key transmitter sub-assembly (key) when the power switch is off, if the brake pedal is depressed while park (P) is selected, the power switch indicator illuminates in green.
5. The hybrid control system starts if the power switch is pressed when the power switch indicator is illuminated in green.

1. Unlock the door using the built-in mechanical key and get into the vehicle while carrying the electrical key transmitter sub-assembly (key).
2. When a buzzer sound is heard from the buzzer in the combination meter sub-assembly. By pressing the power switch while not depressing the brake pedal, the power source mode changes in the following order every time the power switch is pressed: off → on (ACC) → on (IG) → off.

1. Unlock the door using the built-in mechanical key and get into the vehicle while carrying the electrical key transmitter sub-assembly (key).
2. While depressing the brake pedal with park (P) is selected, hold the ornament side of the electrical key transmitter sub-assembly (key) against the power switch.
3. When a buzzer sound is heard from the buzzer in the combination meter sub-assembly and the power switch indicator illuminates in green, press the power switch within 10 seconds while keeping the brake pedal depressed to start the hybrid control system.

1. Get into the vehicle while carrying the electrical key transmitter sub-assembly (key) with the power switch off. With park (P) is selected, check that the power switch indicator illuminates in green when the brake pedal is depressed. Then check that the hybrid control system starts when the power switch is pressed after the power switch indicator illuminates in green.
2. While the brake pedal is released and the electrical key transmitter sub-assembly (key) is being carried, check that the power source mode changes in the following order when the power switch is pressed: off → on (ACC) → on (IG) → off.

   HINT:

   When the power switch is pressed with the power switch on (IG) and park (P) not selected, the power source mode change to off.

3. Check the smart ignition operation range for the front side. Place the electrical key transmitter sub-assembly (key) in either of the two locations making sure that the electrical key transmitter sub-assembly (key) is oriented as shown in the illustration, and then check that the hybrid control system can be started.
   Fig 1: Locating Electrical Key Transmitter Inspection Points (Front)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Inspection Point

   NOTE:

   • Even if the electrical key transmitter sub-assembly (key) is in the vehicle interior key detection area, the electrical key transmitter sub-assembly (key) may not be properly detected if the electrical key transmitter sub-assembly (key) is on the instrument panel, in the glove box or on the floor.
   • If the electrical key transmitter sub-assembly (key) is within 0.2 m (0.66 ft.) of the shift position, communication may not be possible.

   HINT:

   Perform this inspection for both inspection points.

4. Check the smart ignition operation range for the rear side. Place the electrical key transmitter sub-assembly (key) in either of the two locations making sure that the electrical key transmitter sub-assembly (key) is oriented as shown in the illustration, and then check that the hybrid control system can be started.
   Fig 2: Locating Electrical Key Transmitter Inspection Points (Rear)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Inspection Point

   NOTE:

   • Even if the electrical key transmitter sub-assembly (key) is in the vehicle interior key detection area, the electrical key transmitter sub-assembly (key) may not be properly detected if the electrical key transmitter sub-assembly (key) is on the instrument panel, in the glove box or on the floor.
   • If the electrical key transmitter sub-assembly (key) is within 0.2 m (0.66 ft.) of the center of the rear seat, communication may not be possible.

   HINT:

   Perform this inspection for both inspection points.

5. Check the smart ignition operation range for the luggage compartment. Place the electrical key transmitter sub-assembly (key) in either of the two locations making sure that the electrical key transmitter sub-assembly (key) is oriented as shown in the illustration, and then check that the hybrid control system can be started.
   Fig 3: Locating Electrical Key Antenna Locations (Inside Luggage Compartment)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Inspection Point

   HINT:

   Perform this inspection at both locations in the luggage compartment.

1. Check that the power source mode changes according to the chart below.

   Shift Position	Brake Pedal	Power Source Mode when power switch Pressed
   Park (P) selected	Released	Off → on (ACC) → on (IG) → off
   Park (P) selected	Released	on (READY) → off
   Park (P) selected	Depressed	Off → on (READY)
   Park (P) selected	Depressed	On (ACC) → on (READY)
   Park (P) selected	Depressed	On (IG) → on (READY)
   Park (P) selected	Depressed	On (READY) → off
   Park (P) not selected	Released	On (IG) → off
   Park (P) not selected	Released	On (READY) → off
   Park (P) not selected	Depressed	On (READY) → off

HINT:

• *: When the electrical key transmitter sub-assembly (key) is in the vehicle, the ID code sent as a result from communication between the electrical key transmitter sub-assembly (key) and certification ECU (smart key ECU assembly) and the ID code calculated by the certification ECU (smart key ECU assembly) are compared. If the ID codes match each other, the vehicle recognizes that the electrical key transmitter sub-assembly (key) is in the vehicle.

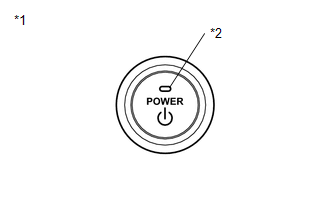

1. Indicator Condition Chart

   Indicator	Vehicle State
   Off	Either condition is met: The hybrid control system is starting. The power switch is off and the vehicle is in a state in which the hybrid control system does not start if the power switch is pressed.
   Illuminated in green	All conditions below are met and the vehicle is in a state in which the hybrid control system can be started if the power switch is pressed: The electrical key transmitter sub-assembly (key) is inside the vehicle, the stop light switch is on and park (P) selected.
   Illuminated in amber	The power switch is on (ACC) or on (IG), and the vehicle is in a state in which the hybrid control system does not start if the power switch is pressed.
   Blinking in amber (2 second intervals)	The power management control ECU has an internal malfunction. The indicator starts blinking when the power management control ECU is determined to have an internal malfunction. The indicator stops blinking when the ECU returns to normal or 15 seconds elapse after blinking starts.
