Initialization [11/2014 - ]
- INITIALIZE POWER WINDOW CONTROL SYSTEM (ALL DOORS) NOTE:
- When a door window regulator sub-assembly, power window regulator motor assembly, door glass or door glass run is reinstalled or replaced, the power window control system must be initialized. Functions such as the auto up and down, jam protection, catch protection, remote control and key-off operation will not operate if initialization is not performed.
- When a power window regulator motor assembly is replaced, DTC B2313 is stored. Clear the DTC after initialization.
- When performing initialization, do not perform any other procedures.
- When performing initialization, use the power window switch of each door to initialize each door window.
- If initialization is not completed properly, the LIN communication system may have a malfunction. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2014 - ] .
- Make sure to park the vehicle and turn off all the electrical systems before performing initialization. Initialization will be canceled if the vehicle is driven during initialization.
- Make sure not to hit, strike or vibrate the door window glass during initialization because the vehicle is learning the sliding resistance of the door window glass.
- Make sure not to operate the power switch to turn the power source mode on (READY) or off during initialization.
HINT:
If the auxiliary battery has been replaced, it is not necessary to initialize the power window regulator motor assembllies.
- Perform initialization according to the table below.
Condition of Power Window Proceed to Initialization method when a power window regulator motor assembly has been replaced with a new one. Procedure A - Initialization method for when a power window regulator motor assembly has been removed/installed or a door glass and/or roof side rail weatherstrip, etc. have been removed/installed or replaced with new ones.
- Initialization method for when the power window cannot fully open via a down operation (door glass remains visible).
- Initialization method for when the power window cannot be fully closed (erroneously operates in reverse) after initialization.
- Initialization method for when the power window cannot be fully opened (erroneously stops) after initialization.
- Initialization method for when instructions to perform initialization appear in other troubleshooting procedures.
Procedure B Initialization method for when the power window unexpectedly operates in reverse or stops due to a change in the sliding resistance after a fitting adjustment is made. Procedure C - Procedure A

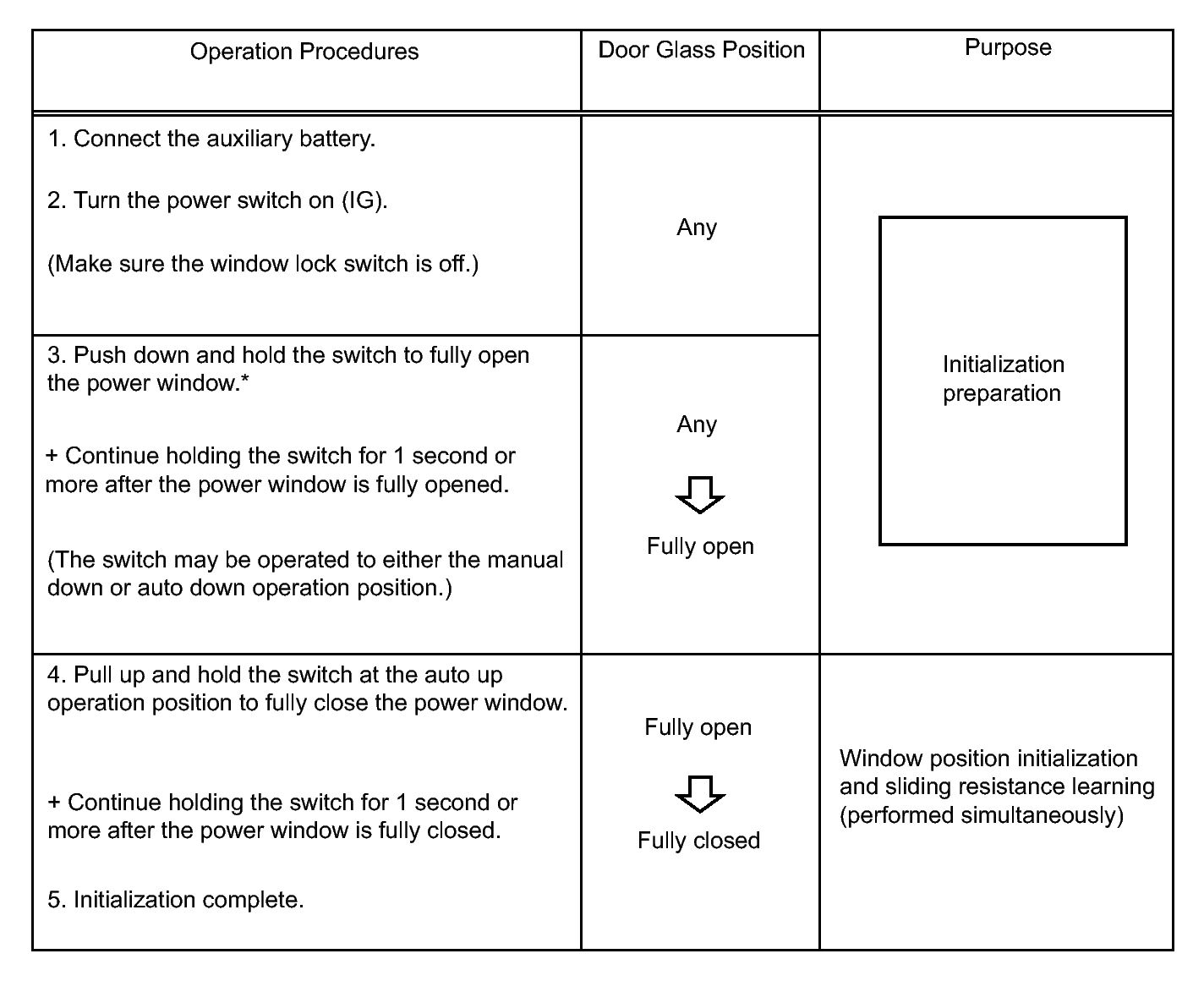

- Perform window position initialization (fully closed, fully open) and sliding resistance learning.
HINT:
*: Even if the door glass is in the fully open position before performing step 3, push down and hold the switch for 1 second or more.
- Perform window position initialization (fully closed, fully open) and sliding resistance learning.
- Procedure B

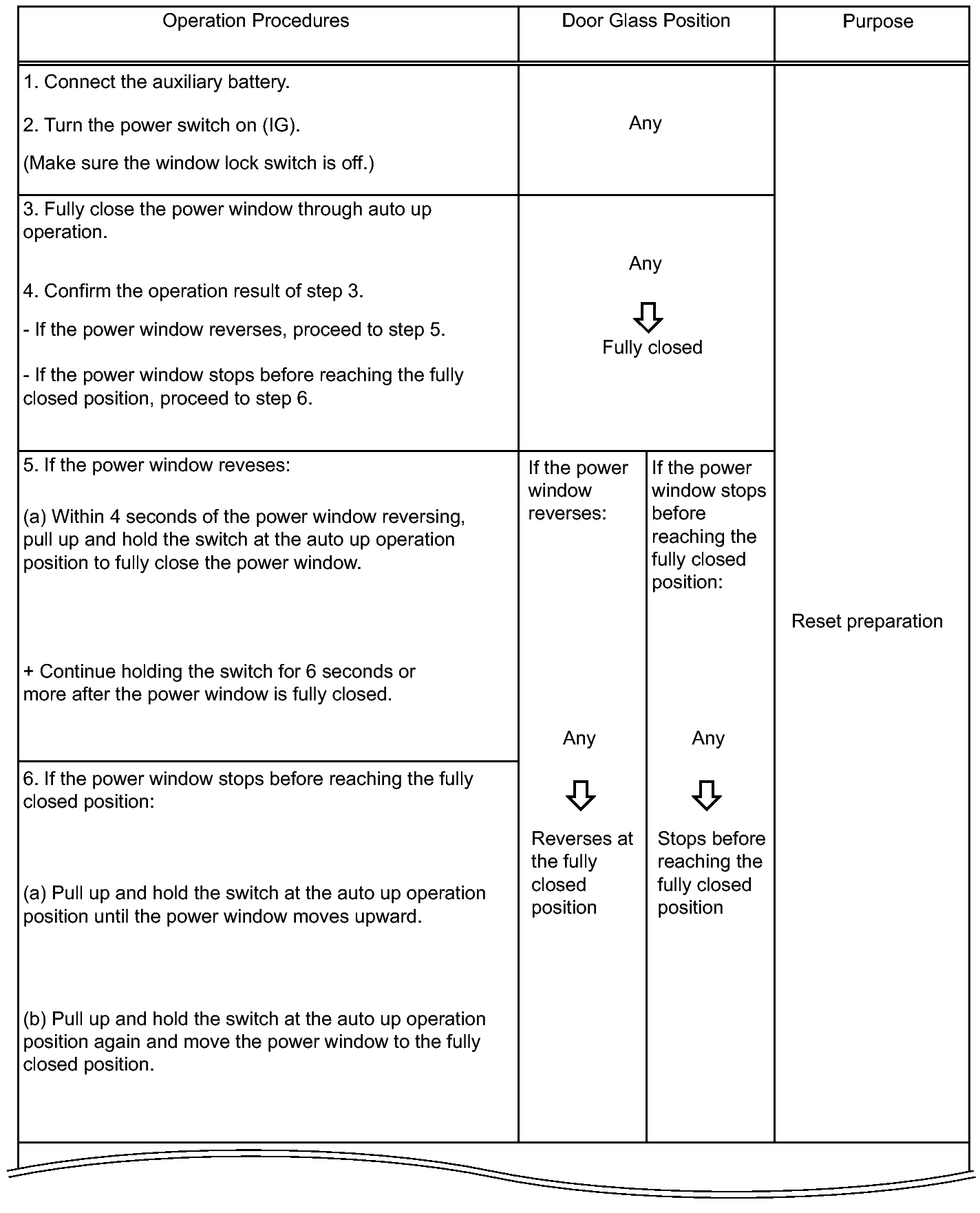

- Reset the door glass position, perform window position initialization (fully closed, fully open) and sliding resistance learning.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

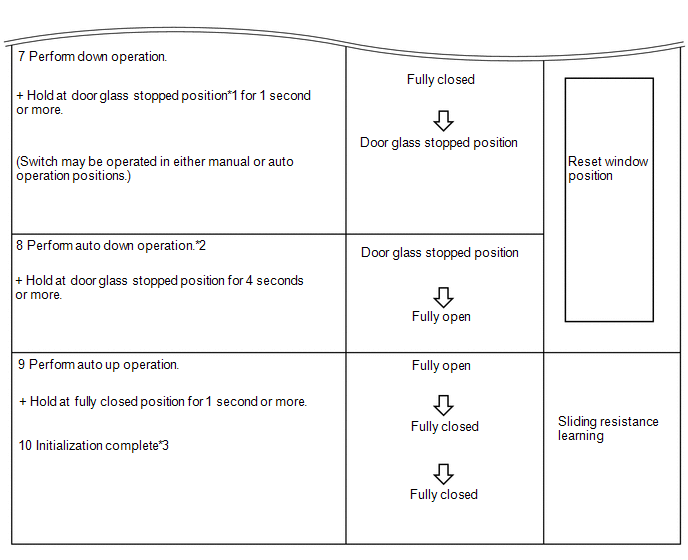

HINT:
- *1: The door glass stopped position is the fully open position stored in the ECU.
- *2: After performing step 7, release the switch, and then perform an auto down operation.
- *3: After completing initialization, check that the power window can be fully closed using an auto up operation.
- If initialization cannot be completed properly, the LIN communication system may be malfunctioning.
- Reset the door glass position, perform window position initialization (fully closed, fully open) and sliding resistance learning.
- Procedure C

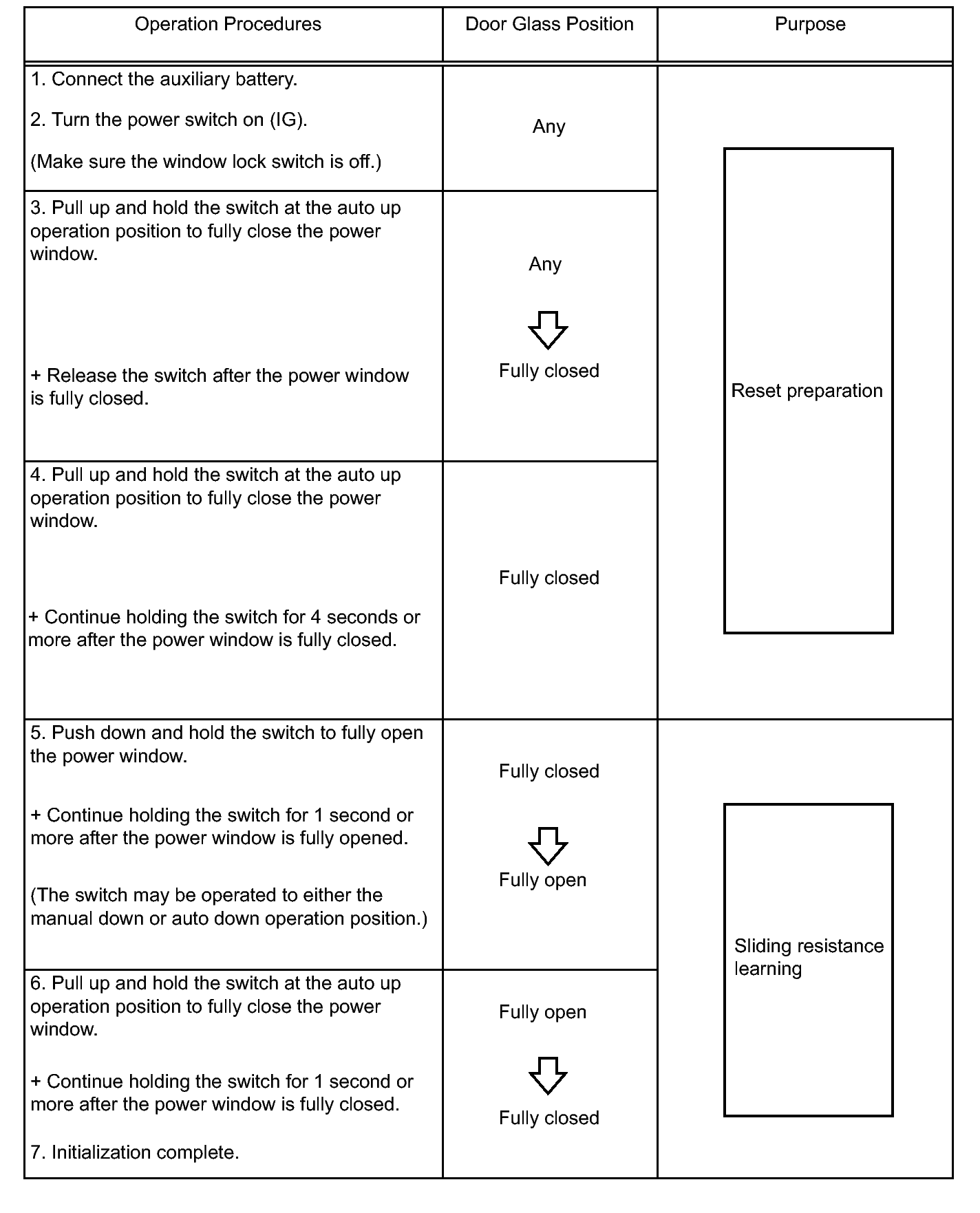

- Perform sliding resistance learning.
HINT:
If the jam protection function or catch protection function continues to operate even after performing steps 4, 5 and 6, perform the procedure again from step 3.
- Perform sliding resistance learning.
