System Diagrams — 2016 Toyota 4Runner Limited, AWD Service Manual ~ LEMON Manuals

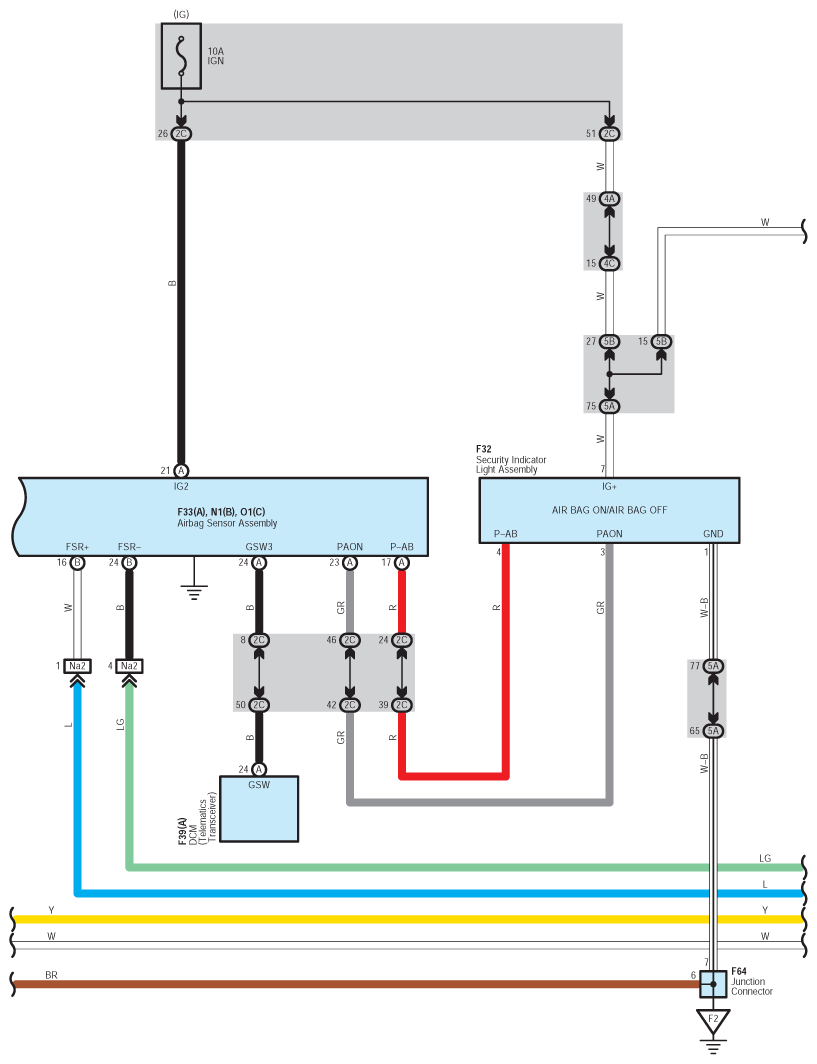

Fig 1: SRS (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

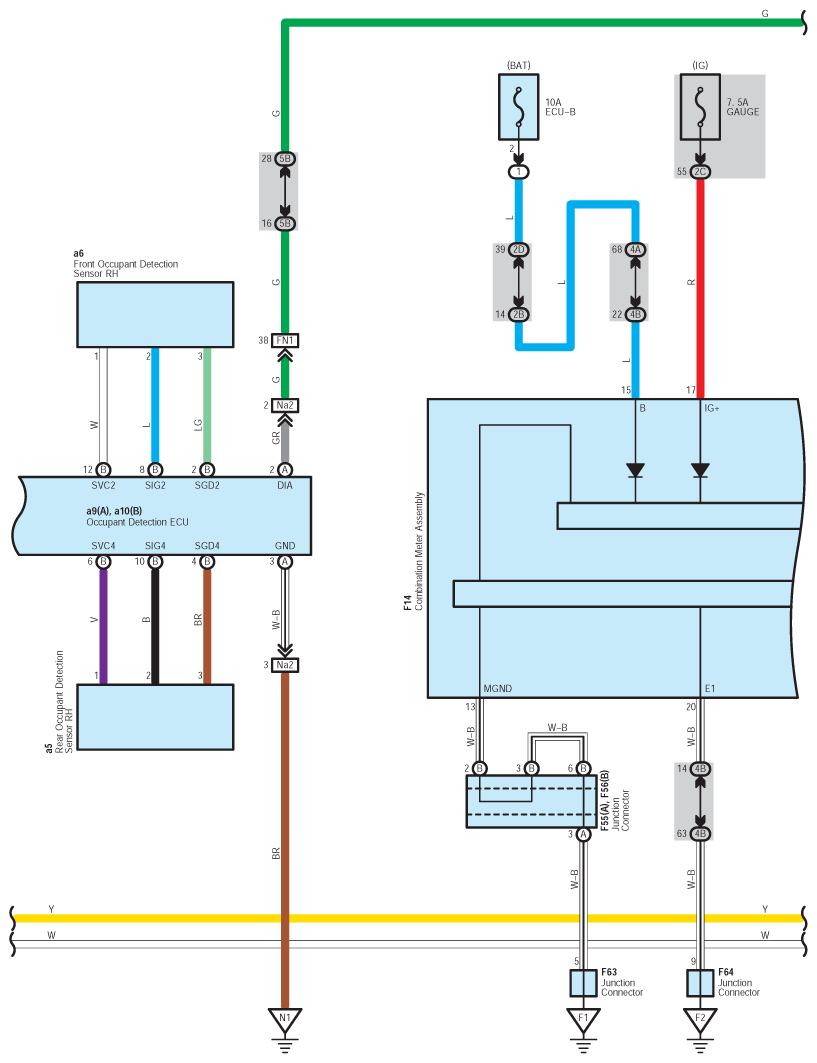

Fig 2: SRS (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

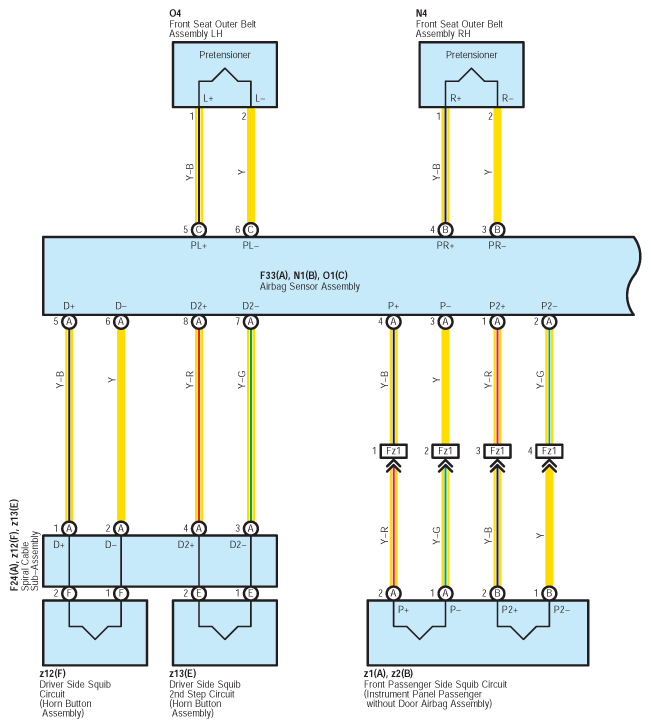

Fig 3: SRS (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

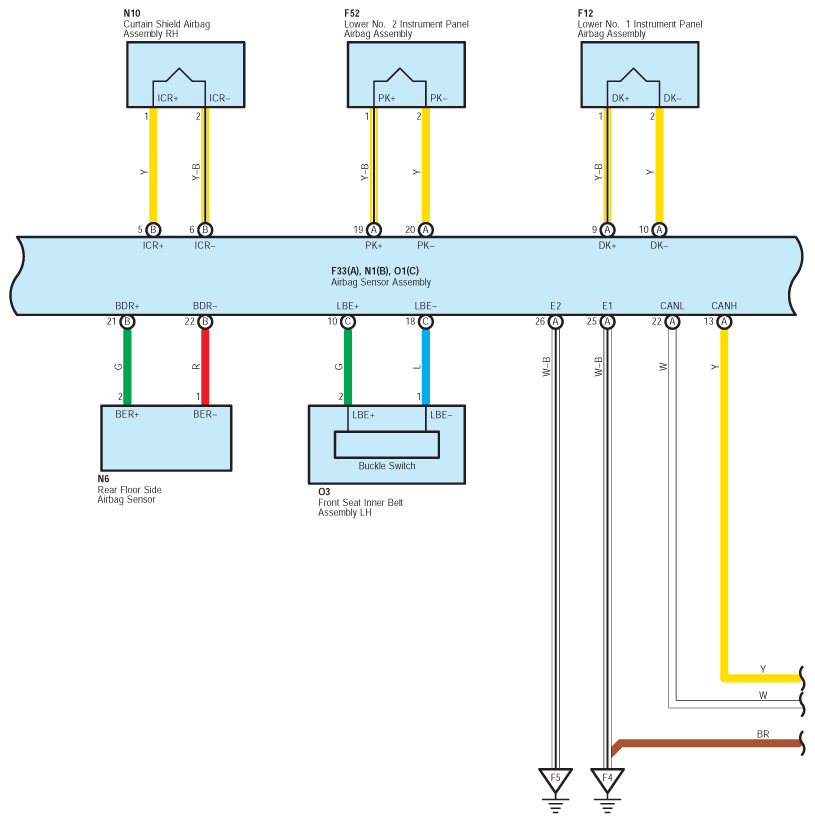

Fig 4: SRS (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

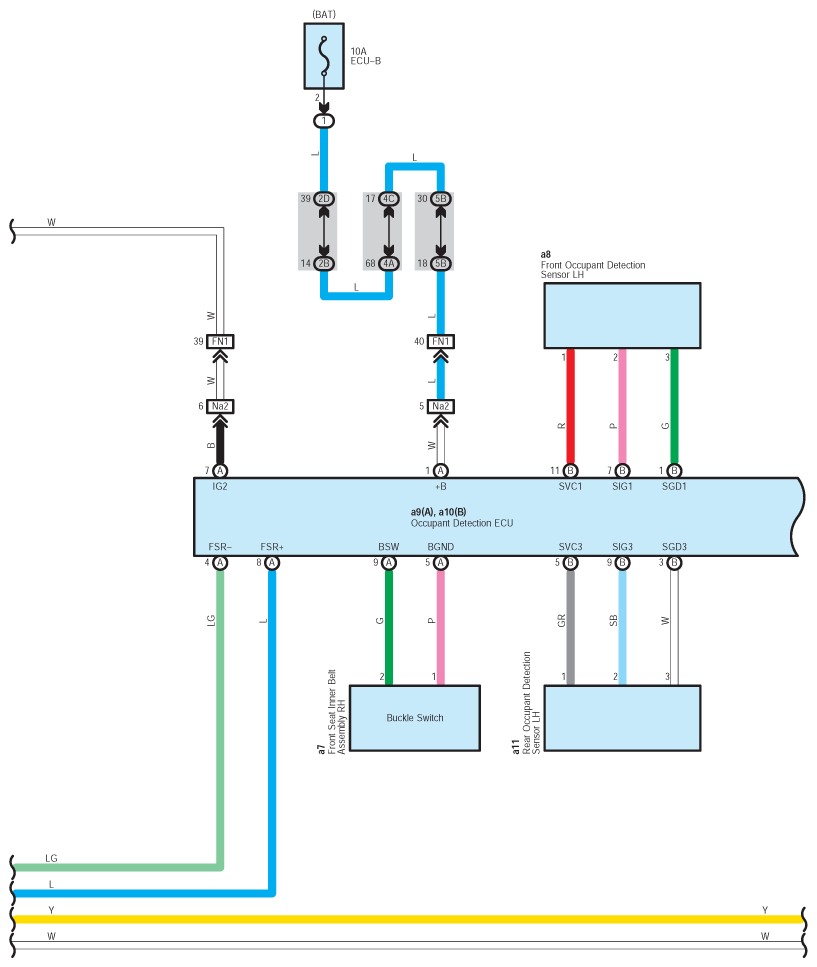

Fig 5: SRS (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

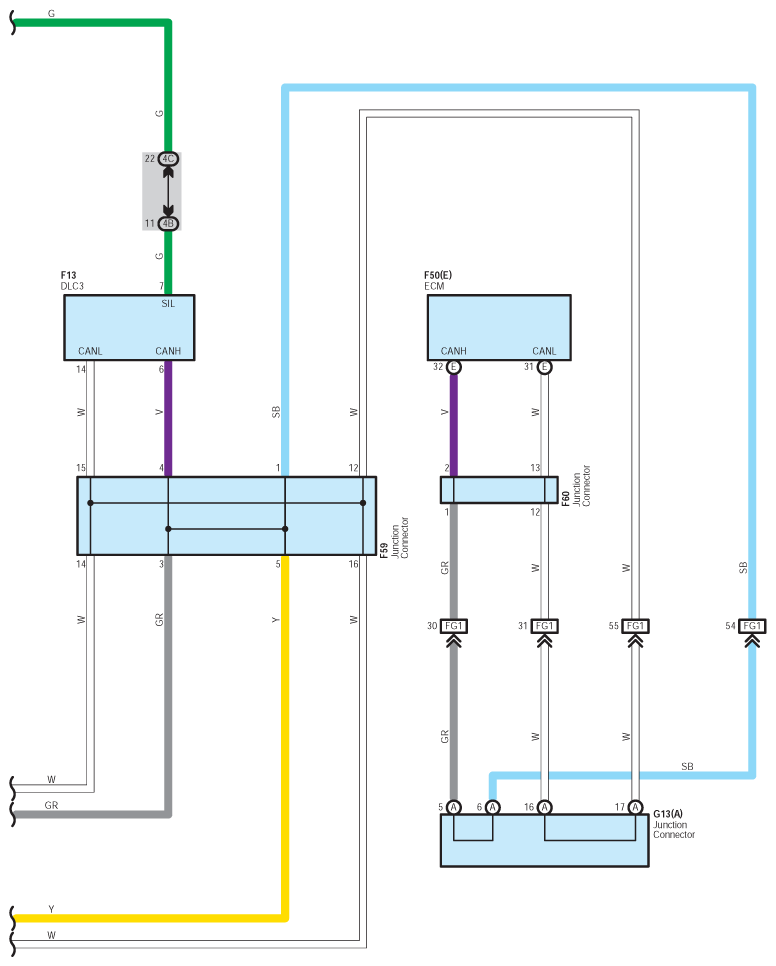

Fig 6: SRS (6 Of 8)

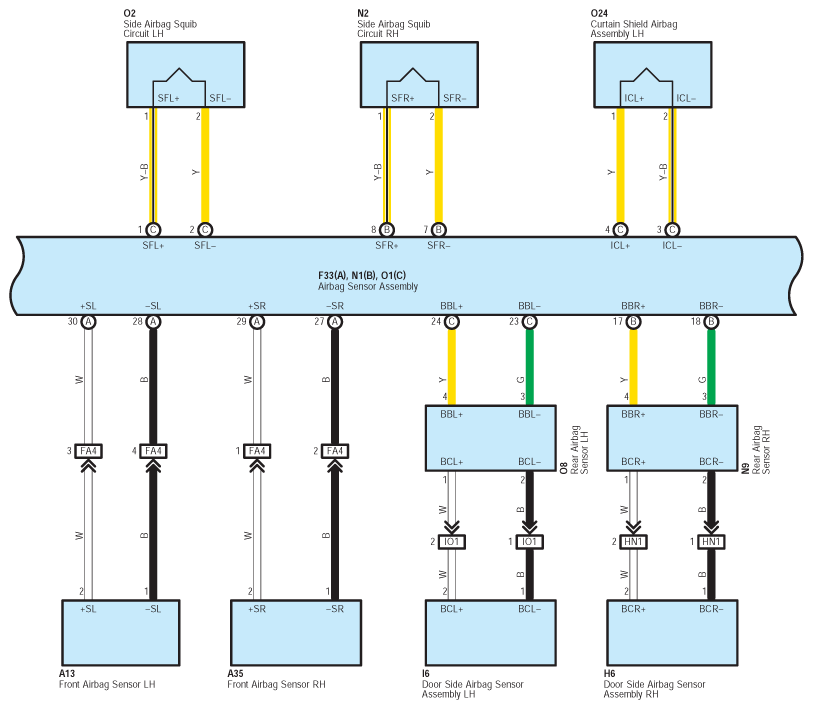

Fig 7: SRS (7 Of 8)

Fig 8: SRS (8 Of 8)
