System Diagram [08/2013 - 08/2016]

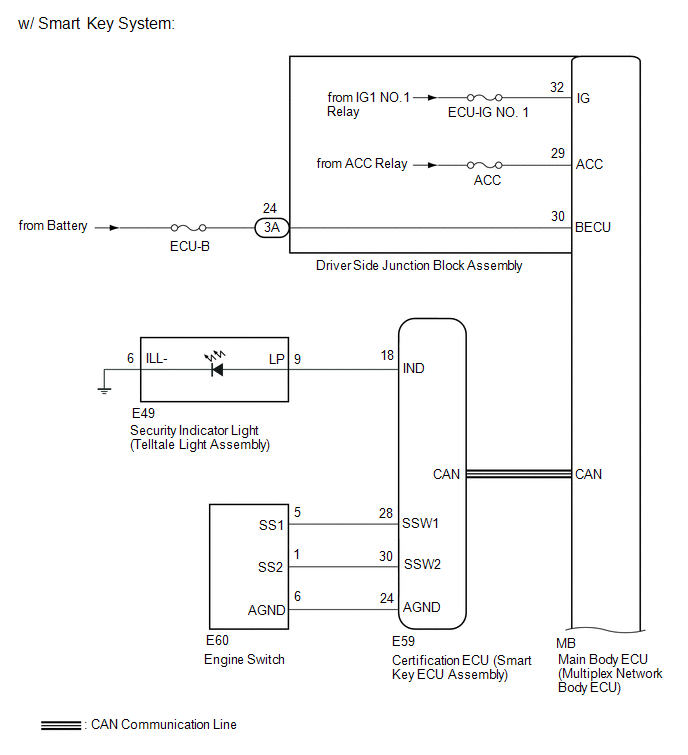

Fig 1: Theft Deterrent System Circuit Diagram (1 Of 5)
GTY447639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

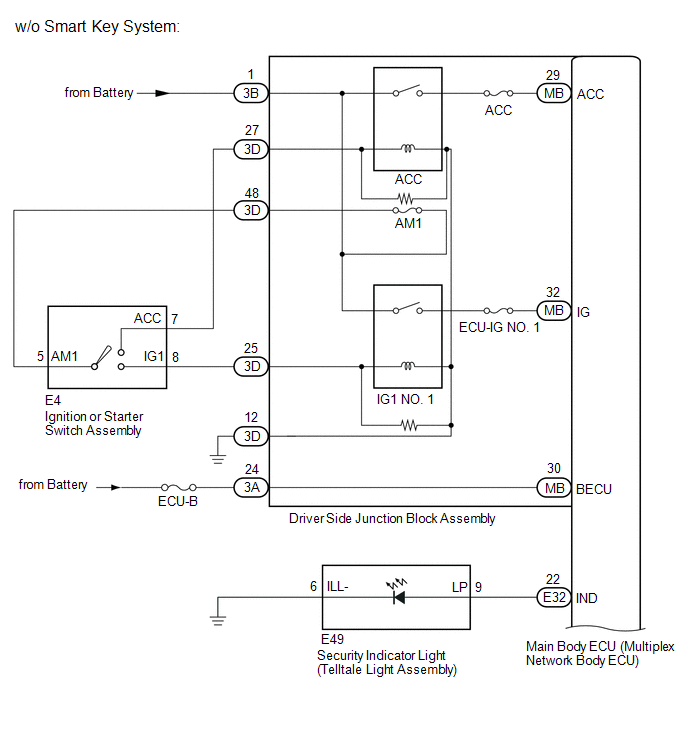

Fig 2: Theft Deterrent System Circuit Diagram (2 Of 5)
GTY445101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

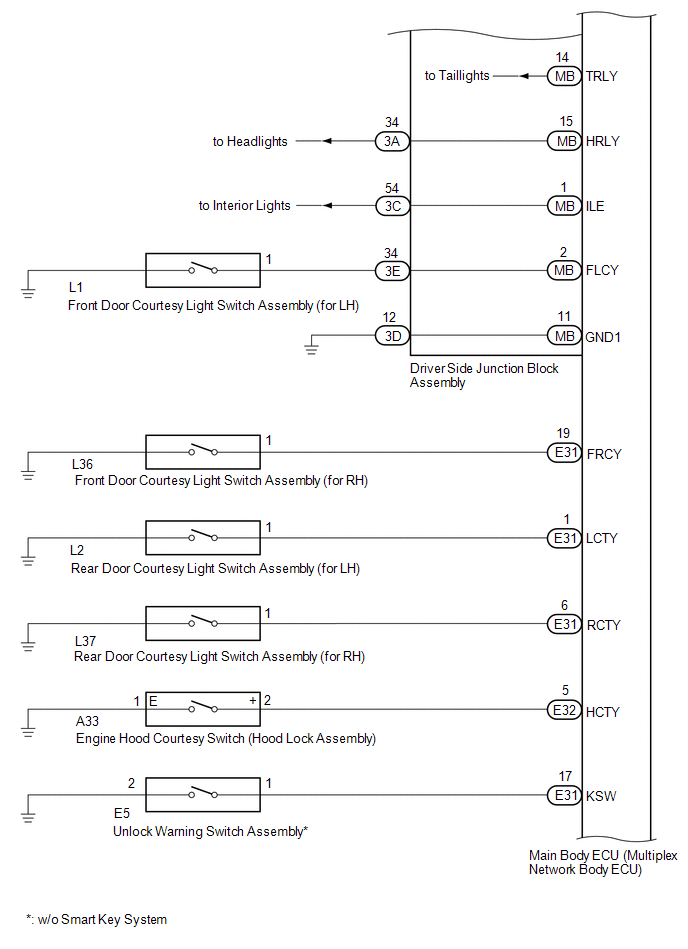

Fig 3: Theft Deterrent System Circuit Diagram (3 Of 5)
GTY451716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

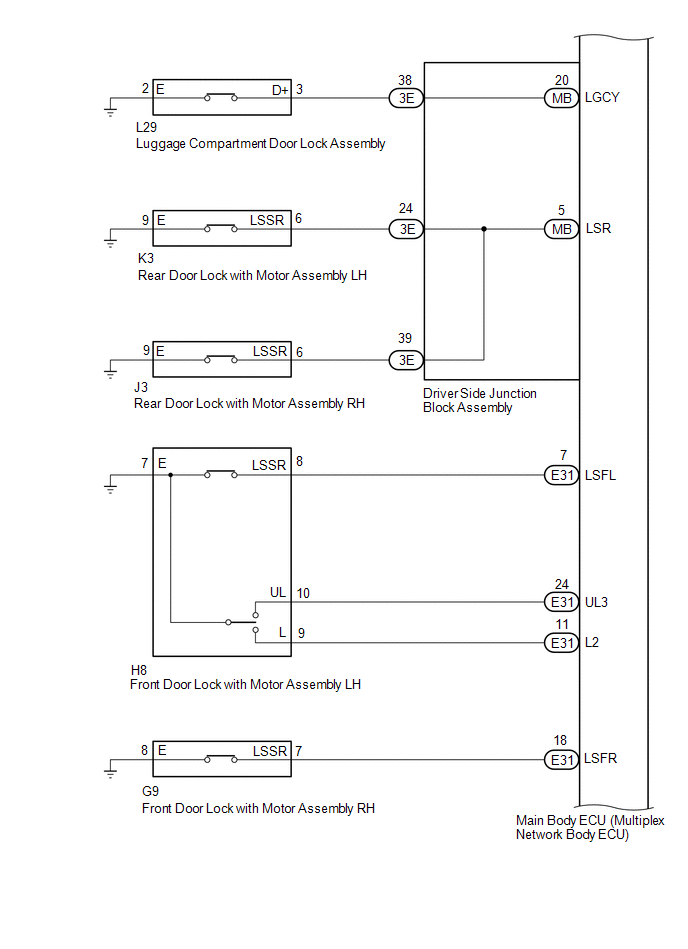

Fig 4: Theft Deterrent System Circuit Diagram (4 Of 5)
GTY426324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

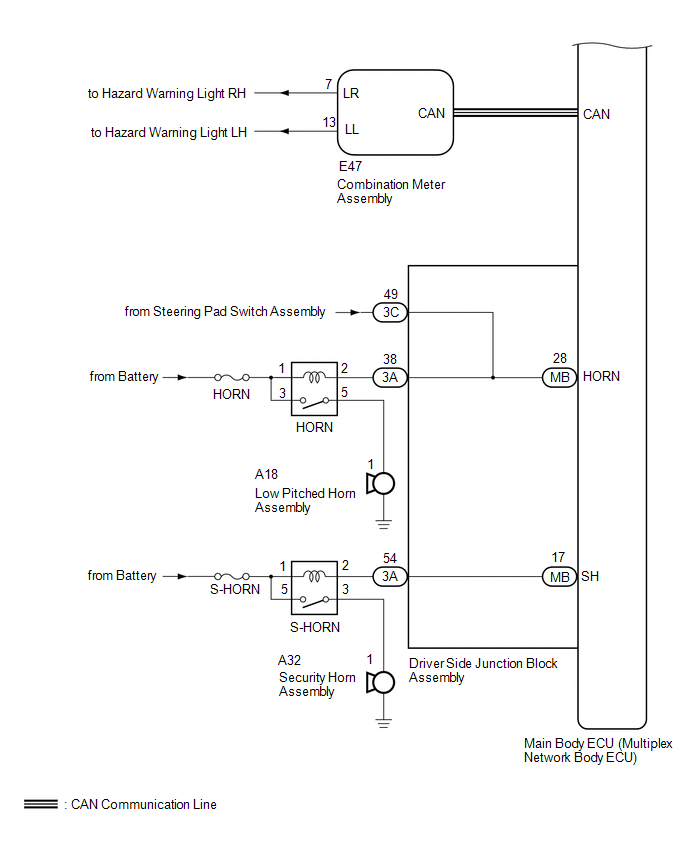

Fig 5: Theft Deterrent System Circuit Diagram (5 Of 5)
GTY476054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
