Removal [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 13 Refer to PROCEDURE - Step 12

  2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  3. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 Refer to PROCEDURE - Step 14

  4. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY

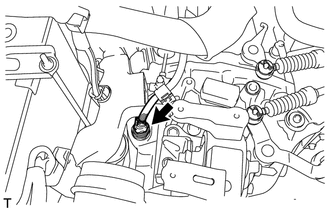

    1. Disconnect the back-up light switch assembly connector.
      GTY434878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

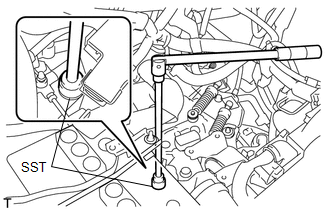

    2. Using SST, remove the back-up light switch assembly and gasket from the manual transaxle assembly.
      GTY430371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09817-16011
