Components [08/2013 - 08/2016]: Illustration
WARNING: This page is about a different variant/trim than selected.

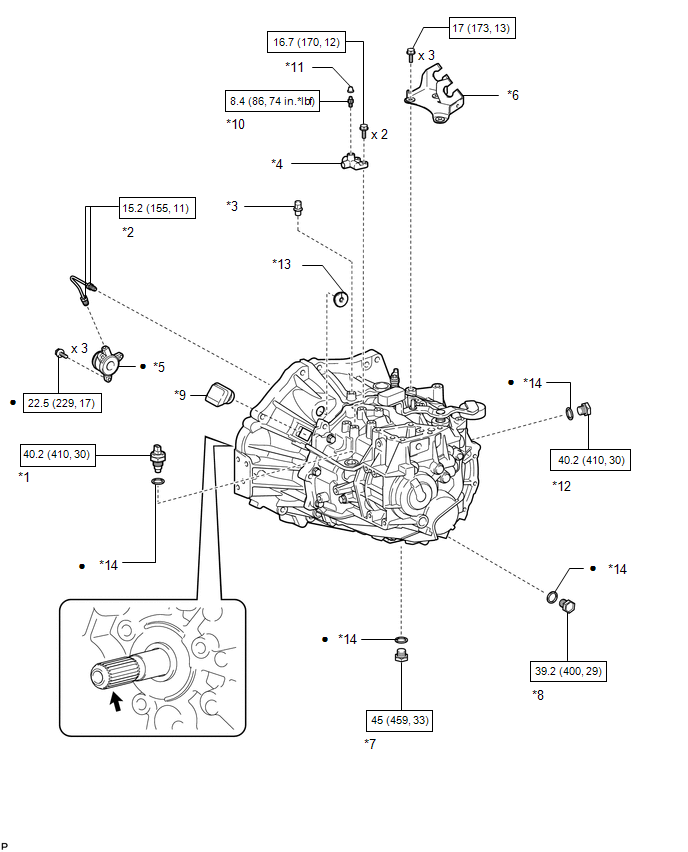

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
BACK-UP LIGHT SWITCH ASSEMBLY |
*2 |
BLEEDER CLUTCH RELEASE TUBE |
| *3 |
BREATHER PLUG |
*4 |
CLUTCH RELEASE BLEEDER SUB-ASSEMBLY |
| *5 |
CLUTCH RELEASE WITH BEARING CYLINDER ASSEMBLY |
*6 |
CONTROL CABLE BRACKET ASSEMBLY |
| *7 |
MANUAL TRANSMISSION DRAIN PLUG |
*8 |
MANUAL TRANSMISSION FILLER PLUG |
| *9 |
NO. 1 CLUTCH HOUSING COVER |
*10 |
RELEASE CYLINDER BLEEDER PLUG |
| *11 |
RELEASE CYLINDER BLEEDER PLUG CAP |
*12 |
TRANSMISSION CASE PLUG |
| *13 |
CLUTCH TUBE BOOT |
*14 |
GASKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Clutch spline grease |
- |
- |

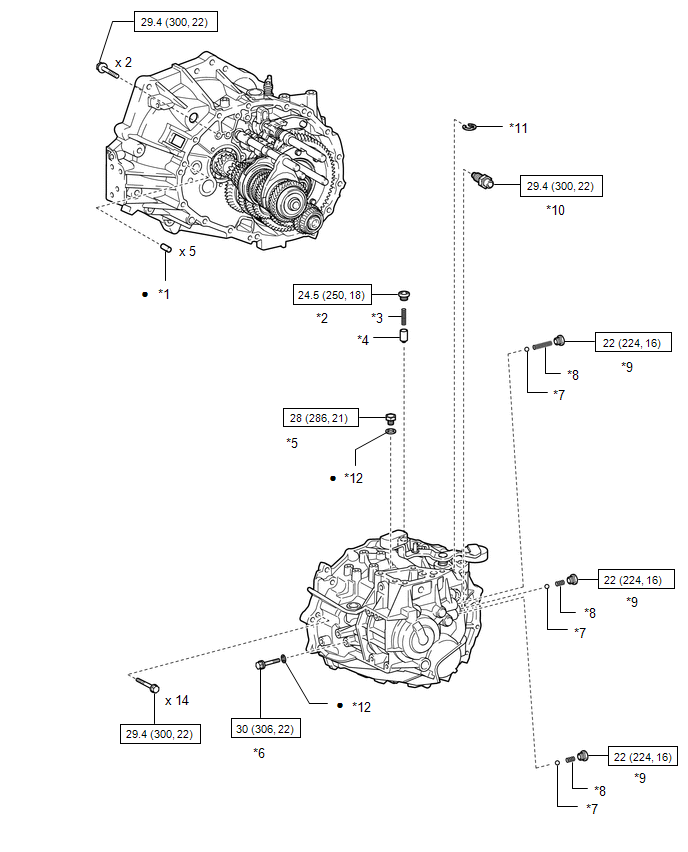

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
STRAIGHT PIN |
*2 |
SHIFT AND SELECT LEVER SHAFT STRAIGHT SCREW WITH HEAD PLUG |
| *3 |
SHIFT AND SELECT LEVER SHAFT COMPRESSION SPRING |
*4 |
LOCK BALL PIN |
| *5 |
TRANSMISSION CASE PLUG |
*6 |
REVERSE IDLER GEAR SHAFT BOLT |
| *7 |
SHIFT DETENT BALL |
*8 |
SHIFT DETENT BALL COMPRESSION SPRING |
| *9 |
SHIFT DETENT BALL PLUG |
*10 |
NO. 1 LOCK BALL ASSEMBLY |
| *11 |
OUTER SHIFT LEVER E RING |
*12 |
GASKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
| * |
Precoated part |
- |
- |

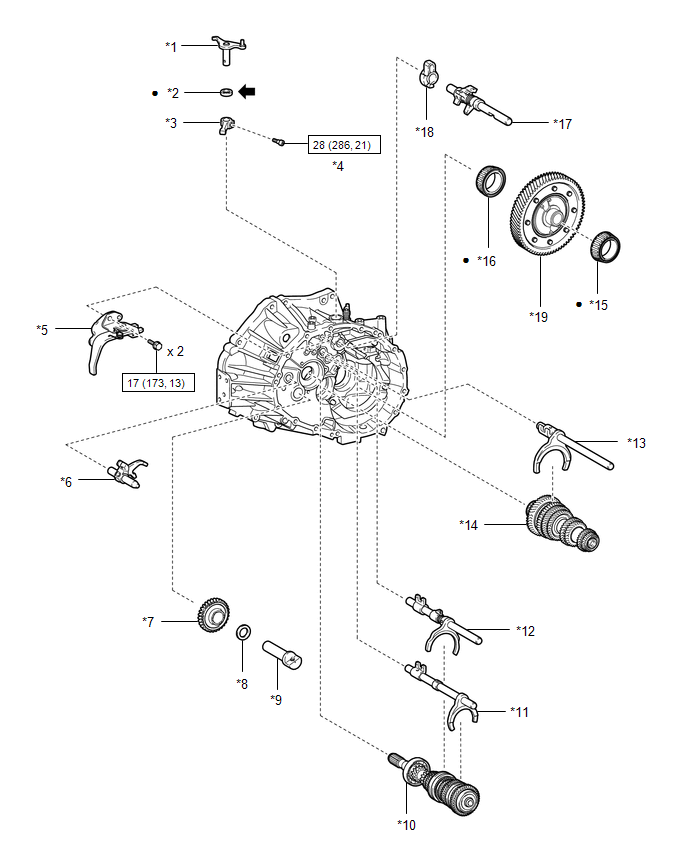

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
OUTER SELECT LEVER |
*2 |
OUTER SELECT LEVER OIL SEAL |
| *3 |
INNER SELECT LEVER |
*4 |
INNER SELECT LEVER SET BOLT |
| *5 |
REVERSE SHIFT ARM BRACKET ASSEMBLY |
*6 |
REVERSE SHIFT FORK SHAFT ASSEMBLY |
| *7 |
REVERSE IDLER GEAR SUB-ASSEMBLY |
*8 |
REVERSE IDLER THRUST WASHER |
| *9 |
REVERSE IDLER GEAR SHAFT |
*10 |
INPUT SHAFT ASSEMBLY |
| *11 |
NO. 3 GEAR SHIFT FORK SHAFT ASSEMBLY |
*12 |
NO. 2 GEAR SHIFT FORK SHAFT ASSEMBLY |
| *13 |
NO. 1 GEAR SHIFT FORK SHAFT ASSEMBLY |
*14 |
OUTPUT SHAFT ASSEMBLY |
| *15 |
FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING |
*16 |
FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING |
| *17 |
SHIFT AND SELECT LEVER SHAFT ASSEMBLY |
*18 |
SHIFT INTER LOCK PLATE |
| *19 |
DIFFERENTIAL CASE ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP Grease |
* |
Precoated part |

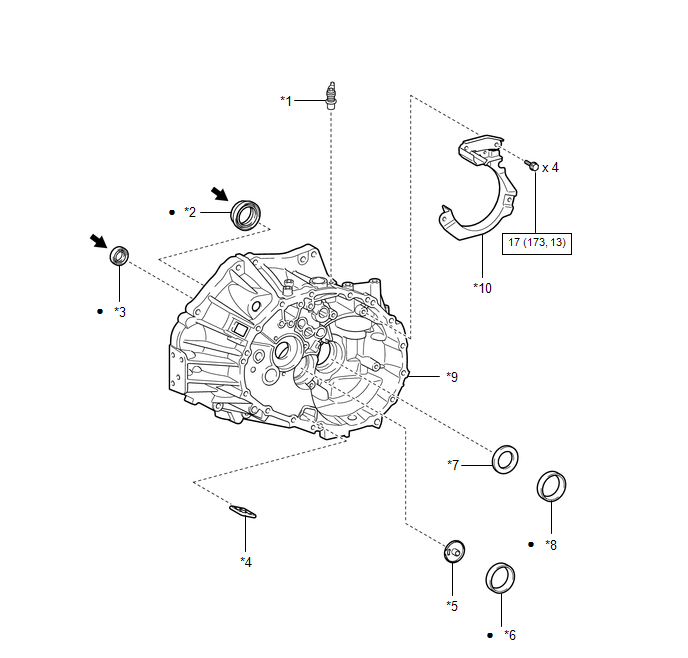

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
REVERSE RESTRICT PIN ASSEMBLY |
*2 |
FRONT DRIVE SHAFT OIL SEAL RH |
| *3 |
FRONT TRANSAXLE CASE OIL SEAL |
*4 |
TRANSMISSION MAGNET |
| *5 |
OUTPUT SHAFT COVER |
*6 |
FRONT OUTPUT SHAFT BEARING (OUTER RACE) |
| *7 |
FRONT DIFFERENTIAL CASE FRONT PLATE WASHER |
*8 |
FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE) |
| *9 |
FRONT TRANSAXLE CASE |
*10 |
TRANSMISSION OIL SEPARATOR |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP Grease |
- |
- |

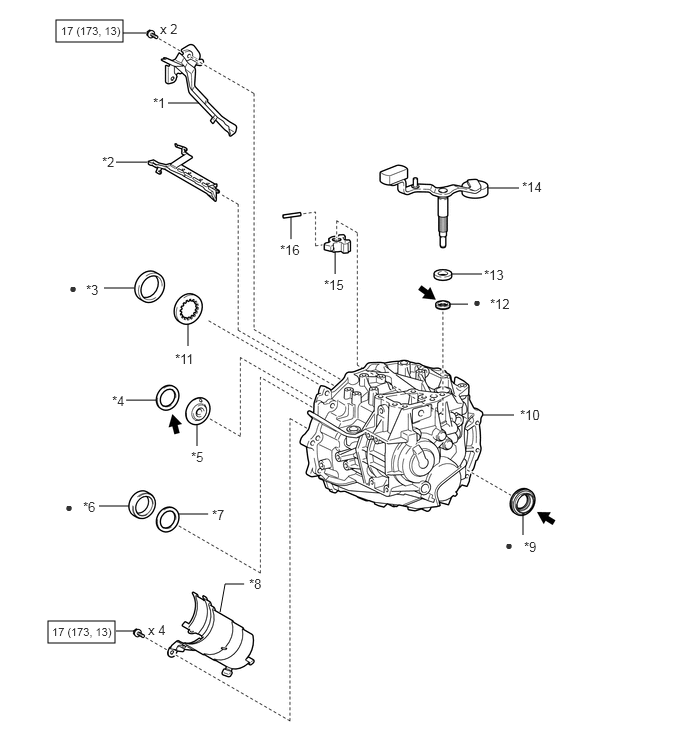

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
TRANSMISSION OIL SEPARATOR |
*2 |
NO. 1 OIL RECEIVER PIPE |
| *3 |
FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE) |
*4 |
REAR INPUT SHAFT BEARING SHIM |
| *5 |
INPUT SHAFT COVER |
*6 |
REAR OUTPUT SHAFT BEARING (OUTER RACE) |
| *7 |
REAR OUTPUT SHAFT BEARING SHIM |
*8 |
MANUAL TRANSMISSION OIL SEPARATOR SUB-ASSEMBLY |
| *9 |
FRONT DRIVE SHAFT OIL SEAL LH |
*10 |
MANUAL TRANSMISSION CASE |
| *11 |
FRONT DIFFERENTIAL CASE REAR PLATE WASHER |
*12 |
OUTER SHIFT LEVER OIL SEAL |
| *13 |
OUTER SHIFT LEVER SPACER |
*14 |
OUTER NO. 1 SHIFT LEVER |
| *15 |
INNER NO. 1 SHIFT LEVER |
*16 |
INNER SHIFT LEVER SLOTTED SPRING PIN |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP Grease |
- |
- |
