Removal [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE REAR CONSOLE BOX ASSEMBLY
Refer to REMOVAL [08/2013 - 08/2016] Refer to REMOVAL [08/2016 - ]

DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

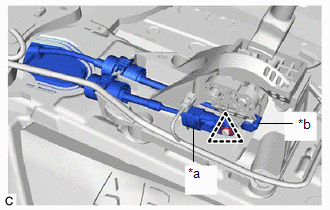

Remove the clip and disconnect the transmission control select cable from the floor shift lever assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Transmission Control Select Cable
*b	Transmission Control Shift Cable

Disconnect the transmission control shift cable from the floor shift lever assembly.

Using a screwdriver, pull out the stopper of the transmission control cable assembly.

NOTE:

Do not remove the stopper. If it is removed, reinstall it to its original position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

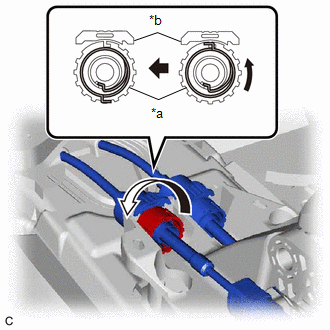

Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable assembly from the shift lever assembly.

NOTE:

Do not rotate the nut excessively as the internal spring may jump out and the transmission control cable will not be reusable.

*a	Nut
*b	Stopper

REMOVE FLOOR SHIFT LEVER ASSEMBLY

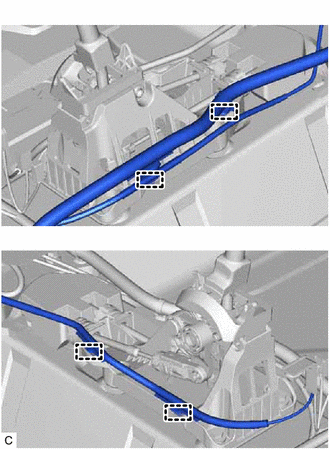

Disengage the 4 clamps and disconnect the wire harness from the floor shift lever assembly.

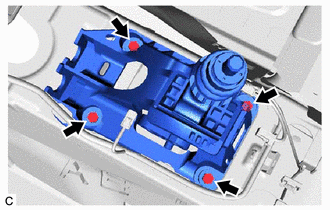

Remove the 4 bolts and floor shift lever assembly from the vehicle body.
