Adjustment [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 13 Refer to PROCEDURE - Step 12

  2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  3. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 Refer to PROCEDURE - Step 14

  4. ADJUST TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the rear console box assembly.

      Refer to REMOVAL [08/2013 - 08/2016] Refer to REMOVAL [08/2016 - ]

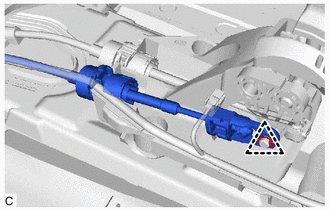

    2. Remove the clip and disconnect the transmission control select cable from the floor shift lever assembly.
      GTY428624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

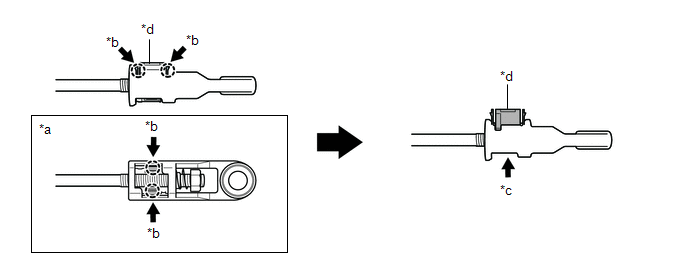

    3. Push the 2 claws together at the top of the lock piece. While holding the 2 claws together, push the 2 lugs on the bottom of the lock piece toward each other and upward to pull out the lock piece.
      GTY429602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bottom View *b Push
      *c Push out *d Lock Piece

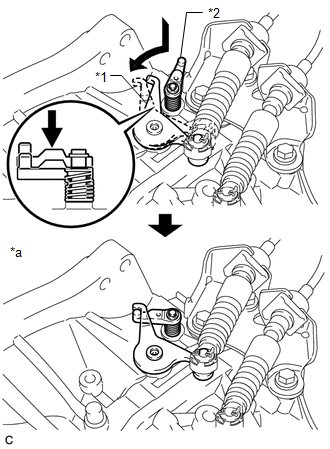

    4. Hook the outer lever of the manual transaxle assembly to the reverse restrict pin assembly to secure it.
      GTY452257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Outer Lever
      *2 Reverse Restrict Pin Assembly
      *a Secured

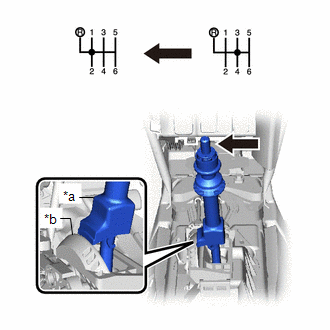

    5. Push the slider shaft until it contacts the cam wall.
      NOTE:
      • Do not pull up the slider shaft.
      • When adjusting the cable, make sure that the shift lever is not in the 1st or 2nd gear position.
      GTY429742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Slider Shaft
      *b Cam Wall

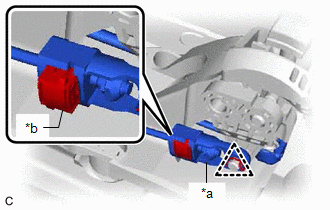

    6. Install the transmission control select cable to the floor shift lever assembly with the clip.
      GTY426520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Control Select Cable
      *b Lock Piece
      NOTE:
      • Make sure that the lock piece is protruding from the adjuster case.
      • When adjusting the cable, make sure that the shift lever is not in the 1st or 2nd gear position.
    7. Press in the lock piece to the adjuster case.
      NOTE:

      Securely press in the lock piece until the lock engages.

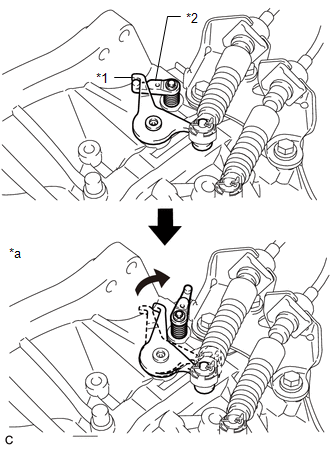

    8. Move the shift lever to the reverse position, so that the outer lever can be released.
      GTY447807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Outer Lever
      *2 Reverse Restrict Pin Assembly
      *a Released
    9. Install the rear console box assembly.

      Refer to INSTALLATION [08/2013 - 08/2016] Refer to INSTALLATION [08/2016 - ]

  5. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 62 Refer to PROCEDURE - Step 62 Refer to PROCEDURE - Step 57

  6. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  7. INSTALL NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 90 Refer to PROCEDURE - Step 90 Refer to PROCEDURE - Step 81
