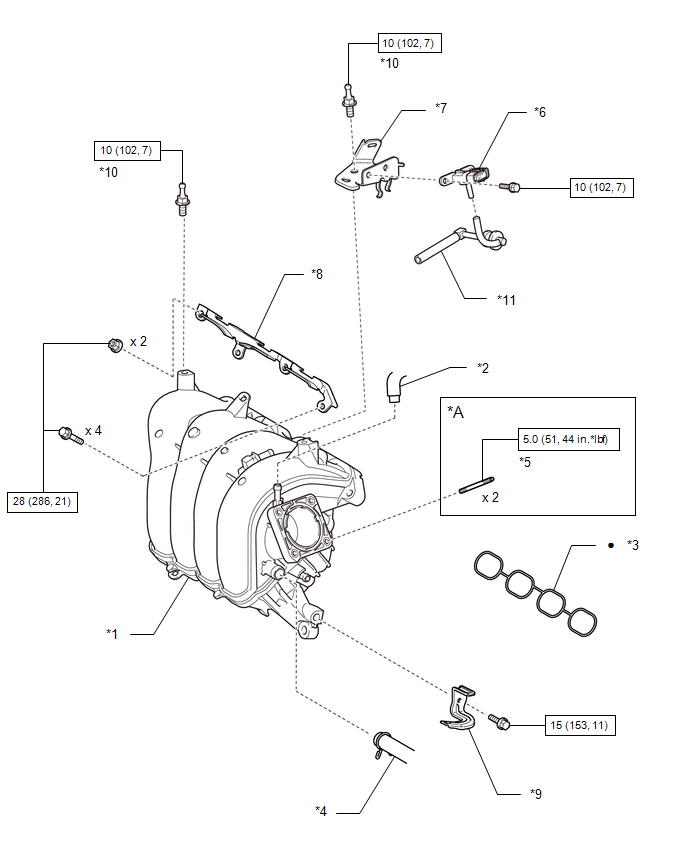

Components [08/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
| *A | w/ Stud Bolt | - | - |
| *1 | INTAKE MANIFOLD | *2 | NO. 1 FUEL VAPOR FEED HOSE |
| *3 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET | *4 | NO. 1 VENTILATION HOSE |
| *5 | STUD BOLT | *6 | VACUUM SENSOR (MANIFOLD ABSOLUTE PRESSURE SENSOR) |
| *7 | VACUUM SENSOR BRACKET | *8 | INTAKE MANIFOLD STAY |
| *9 | WIRE HARNESS CLAMP BRACKET | *10 | ENGINE COVER JOINT |
| *11 | NO. 1 AIR HOSE ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
