Adjustment [08/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Apply the parking brake.
    2. Move the shift lever to N.

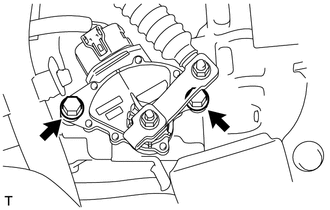

    3. Loosen the 2 bolts of the park/neutral position switch assembly.
      GTY453198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

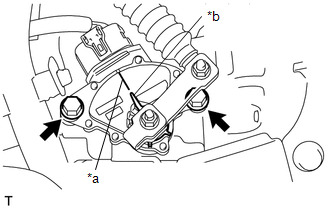

    4. Align the indicator with the neutral basic line.
      GTY437038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Neutral Basic Line
      *b Indicator
    5. Hold the park/neutral position switch assembly in that position and tighten the 2 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
