Sliding Roof: Connectors

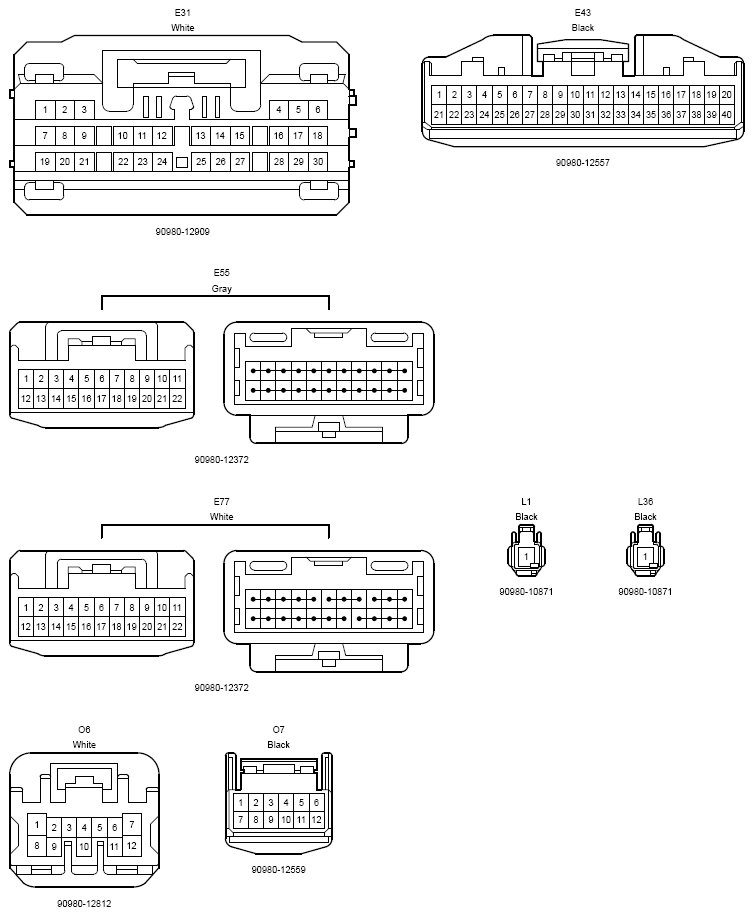

Fig 1: Connectors
G12199708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

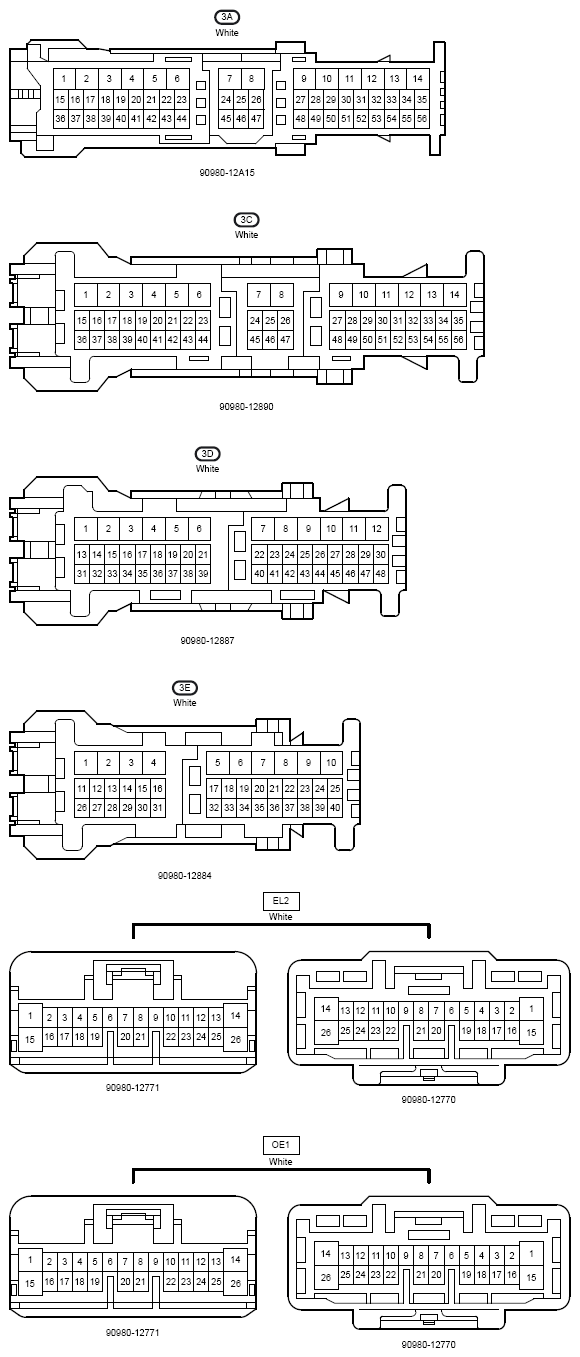

Fig 2: Connectors
G12199709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
