Front Power Seat Control System (Inspection) (Model Code: ZRE172)
>>
Front Power Seat Control System
>>
System Diagram [08/2013 - ]
>>
System Diagram [08/2013 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [08/2013 - ]

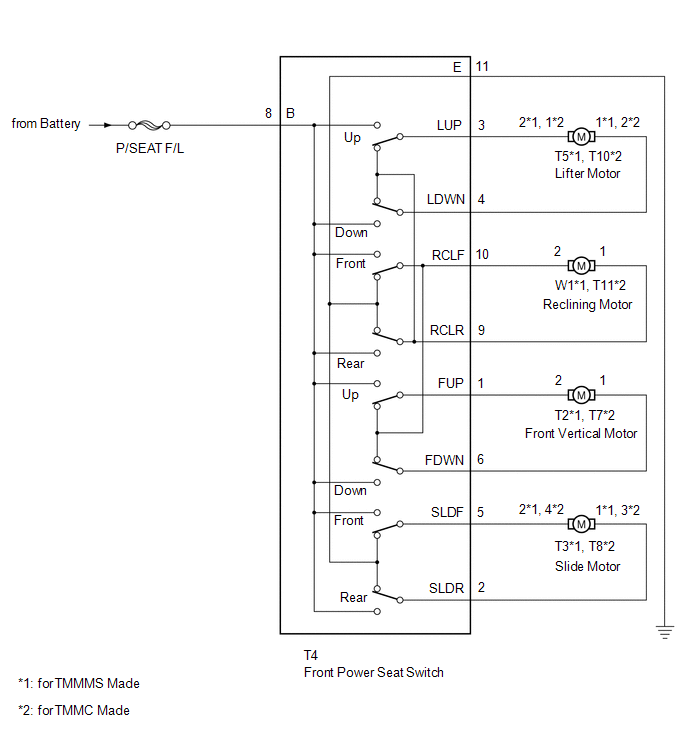

Fig 1: Front Power Seat Control System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
