Operation Check [08/2016 - ]

HINT:

Before performing the window lock switch operation check, make sure that the window lock switch is off (the switch is not pushed in).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the front passenger and rear windows cannot be operated when the window lock switch of the power window regulator master switch assembly is pushed in.

   OK

   Front passenger and rear windows are disabled.

2. Check that the front passenger and rear windows can be operated when the window lock switch of the power window regulator master switch assembly is pushed in again.

   OK

   Front passenger and rear windows operate normally.

1. Check that the driver door power window operates as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Driver door	Pulled halfway up	Up (Closes)
   		Pushed halfway down	Down (Opens)

2. Check that the front passenger door window and rear power windows operate as follows:
   OK



   Condition	Regulator Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch off	Front passenger door	Pulled up	Up (Closes)
   		Pushed down	Down (Opens)
   	Rear LH door	Pulled up	Up (Closes)
   		Pushed down	Down (Opens)
   	Rear RH door	Pulled up	Up (Closes)
   		Pushed down	Down (Opens)

1. Check that the driver door power window operates as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Driver door	Pulled up (One touch operation)	Auto up (Closes)
   		Pushed down (One touch operation)	Auto down (Opens)

1. Check that the front passenger door window and rear power windows operate as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch off	Front passenger door	Pulled up	Up (Closes)
   		Pushed down	Down (Opens)
   	Rear LH door	Pulled up	Up (Closes)
   		Pushed down	Down (Opens)
   	Rear RH door	Pulled up	Up (Closes)
   		Pushed down	Down (Opens)

1. Check that each power window can be operated with the power window regulator master switch assembly, power window regulator switch assembly or rear power window regulator switch assembly after the ignition switch is turned off.

   HINT:

   If the window lock switch is on, the power windows cannot be operated except the driver door power window. Therefore, turn the window lock switch off before checking the window operation.

2. Check that the key-off operation function does not operate immediately after the driver door or front passenger door is opened.

   HINT:

   Even if the driver door or front passenger door is opened during auto window operation while the key-off operation function is on, the window will stop operating.

3. Check that all the power windows cannot be operated after more than approximately 43 seconds have elapsed since the ignition switch was turned off.

1. Check the basic function.
   WARNING:

   Do not put your fingers between the door frame and door glass to check the jam protection function. Also, prevent any part of your body from being caught during inspection.

   HINT:

   The jam protection function is operative during both the auto up and manual up operations while the engine is running or the ignition switch is ON, and also for approximately 43 seconds after the ignition switch is turned off.

   1. Fully open the driver door window.

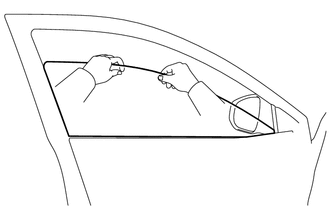

   2. Set a check jig wrapped with a piece of cloth near the window fully closed position.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Check Jig
      *b	Cloth

   3. Operate the auto up or manual up function to check that the power window stops and goes down after the check jig is caught between the window and door frame, and stops when the opening reaches approximately 200 mm (7.87 in.) or approximately 5 seconds have elapsed.

      HINT:

      If the check jig is caught when the opening is approximately 75 mm (2.95 in.) or more, the power window goes down for approximately 125 mm (4.93 in.) or approximately 2.5 seconds have elapsed.

   4. While the power window is moving down, check that the door glass cannot be raised using the power window switch.

1. Check the basic function.
   WARNING:

   Do not put your fingers between the door frame and door glass to check the catch protection function. Also, prevent any part of your body from being caught during inspection.

   HINT:

   The catch protection function is operative during both the auto down and manual down operations while the engine is running or the ignition switch is ON, and also for approximately 43 seconds after the ignition switch is turned off.

   1. Fully close all of the power windows.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Operate the auto down or manual down function to open the power window, grasp the upper edge of the door glass with one or two hands and check that the power window stops.

      HINT:

      After the catch protection function has operated when an auto down or manual down operation was performed, the catch protection function will not operate if the manual down operation is performed again within approximately 4 seconds.

1. Check the LED illumination (power window regulator master switch assembly).
   1. Check that the LED located in the power window regulator master switch assembly illuminates when the ignition switch is turned to ON.
