Pre-Collision System - Diagnostic Codes & Circuit Tests (Model Code: ZRE172)
>>
Pre-Collision System
>>
DTC C1A4A: Skid Control Buzzer Circuit [08/2016 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

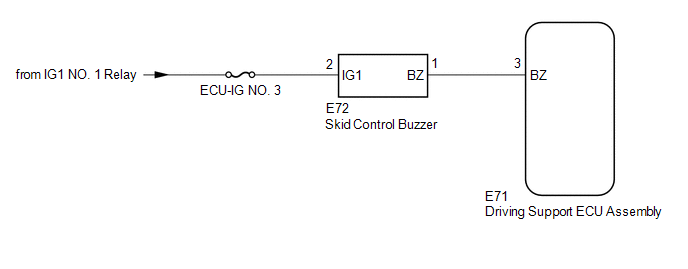

DTC C1A4A: Skid Control Buzzer Circuit [08/2016 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
