System Diagram [02/2014 - ]
WARNING: This page is about a different variant/trim than selected.

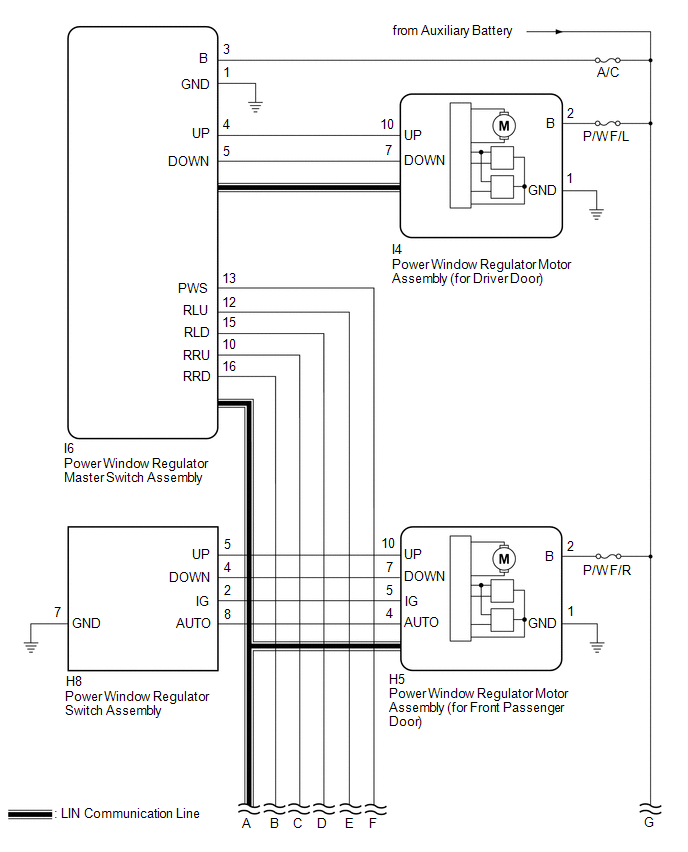

Fig 1: Power Window Control System (For Models With Jam Protection Function On Front Door Windows) Wiring Diagram (1 Of 3)
Fig 2: Power Window Control System (For Models With Jam Protection Function On Front Door Windows) Wiring Diagram (2 Of 3)

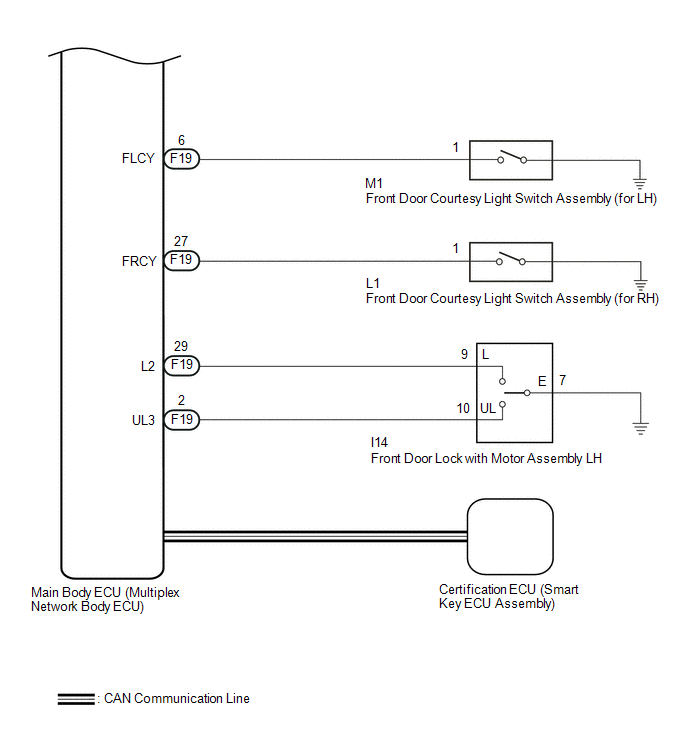

Fig 3: Power Window Control System (For Models With Jam Protection Function On Front Door Windows) Wiring Diagram (3 Of 3)
COMMUNICATION TABLE
| Transmitting ECU | Receiving ECU | Signal | Communication Method |
|---|---|---|---|
| Power Window Regulator Master Switch Assembly | Power Window Regulator Motor Assembly (for Driver Door) | Power window auto up and down signal | LIN |
| Power Window Regulator Motor Assembly (for Front Passenger Door) | Power window remote up and down signal | LIN | |
| Main Body ECU (Multiplex Network Body ECU) |
|
Power window operation permission signal | LIN |
| Certification ECU (Smart Key ECU Assembly) | Main Body ECU (Multiplex Network Body ECU) | Wireless power window operation signal | CAN |
