System Diagram [11/2018 - ]

WARNING: This page is about a different car, the 2020 Toyota Mirai and 2019 Toyota Mirai. However, it is still accessible from the selected car via links, so may be relevant.

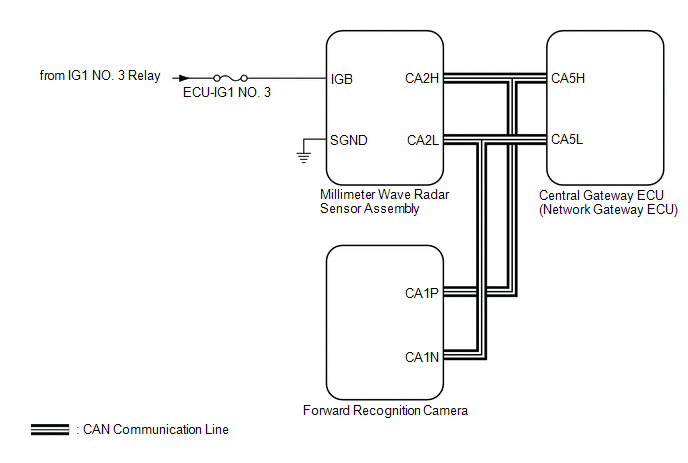

  1. SYSTEM DIAGRAM
    GTY853828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

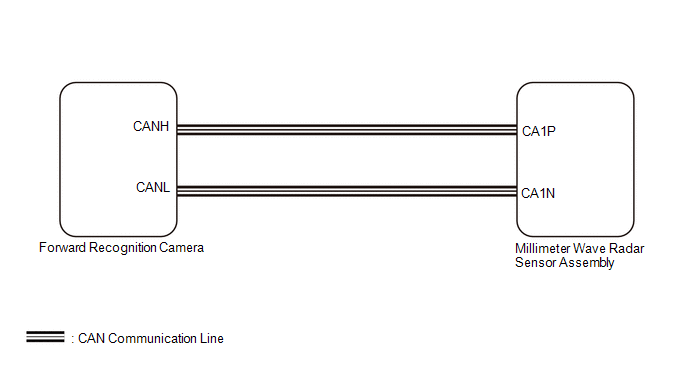

  2. LOCAL CAN CIRCUIT
    GTY890078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
