System Diagram [11/2015 - 07/2020]

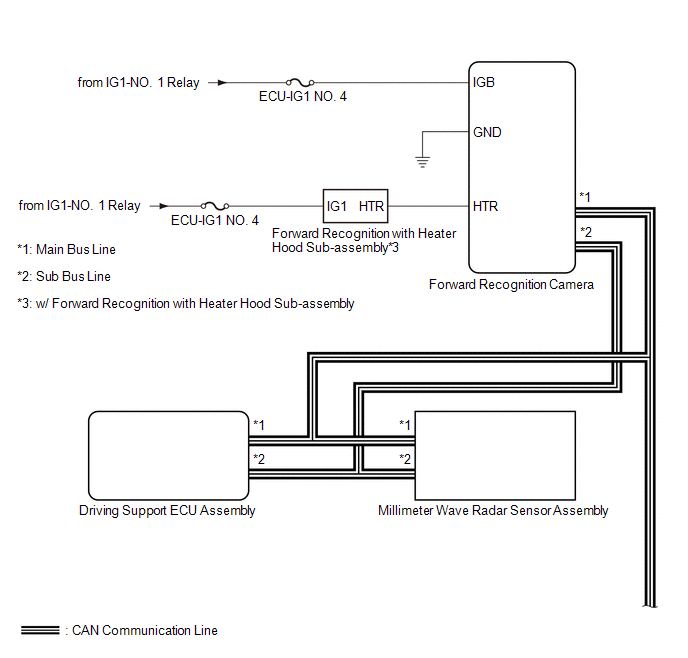

GTY709689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

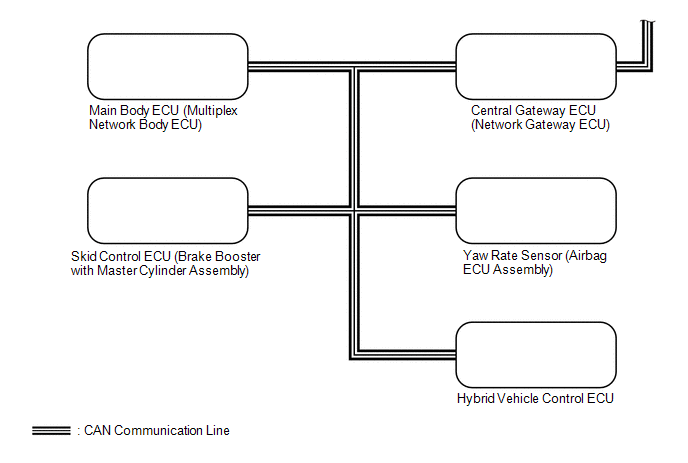

GTY686951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Forward Recognition Camera Main Body ECU (Multiplex Network Body ECU) Automatic high beam control signal CAN
Driving Support ECU Assembly Forward Recognition Camera PCS control information signal CAN
Hybrid Vehicle Control ECU Forward Recognition Camera
  • Shift position signal (P, R, N, D)
  • Engine type information signal
  • Vehicle specification information (2WD/4WD information, conventional/ hybrid information)
  • Cruise control system control signal
 CAN
Main Body ECU (Multiplex Network Body ECU) Forward Recognition Camera Vehicle specification information (destination) CAN
Skid Control ECU (Brake Booster with Master Cylinder Assembly) Forward Recognition Camera
  • Vehicle speed signal
  • Stop light switch signal
  • Vehicle yaw rate sensor zero point malfunction signal
  • Vehicle stability control system operation signal
  • Vehicle stability control system malfunction signal
 CAN
Yaw Rate Sensor (Airbag ECU Assembly) Forward Recognition Camera Vehicle yaw rate sensor signal CAN
