Operation Check [10/2015 - ]

  1. CHECK LANE DEPARTURE ALERT MAIN SWITCH
    1. Turn the ignition switch to ON.
    2. Confirm that the lane departure alert indicator (white) in the combination meter assembly illuminates or turns off when the lane departure alert main switch is pressed.

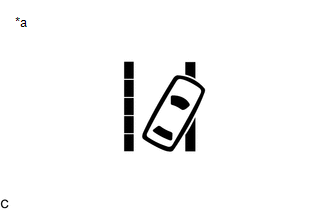

      GTY584211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lane departure alert Indicator

      HINT:

      The ON/OFF status of the lane departure alert system (w/ steering control) remains unchanged when the ignition switch is turned off and back to ON.
