Remote Control Mirror (W/Seat Position Memory): Connectors

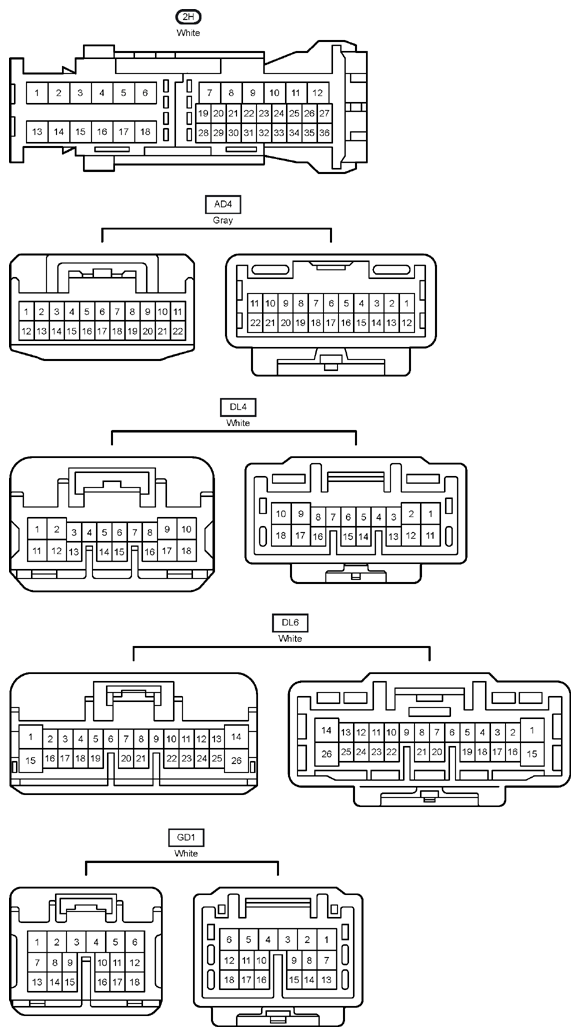

Fig 1: Connectors (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

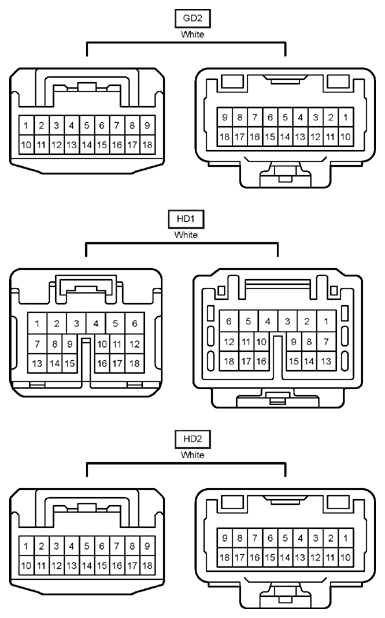

Fig 2: Connectors (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

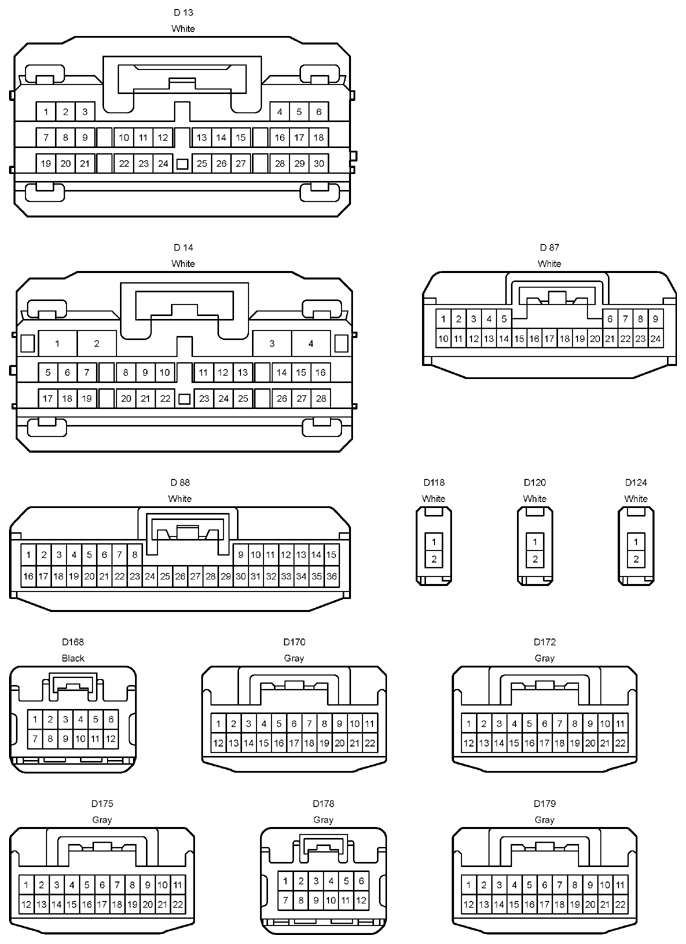

Fig 3: Connectors (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

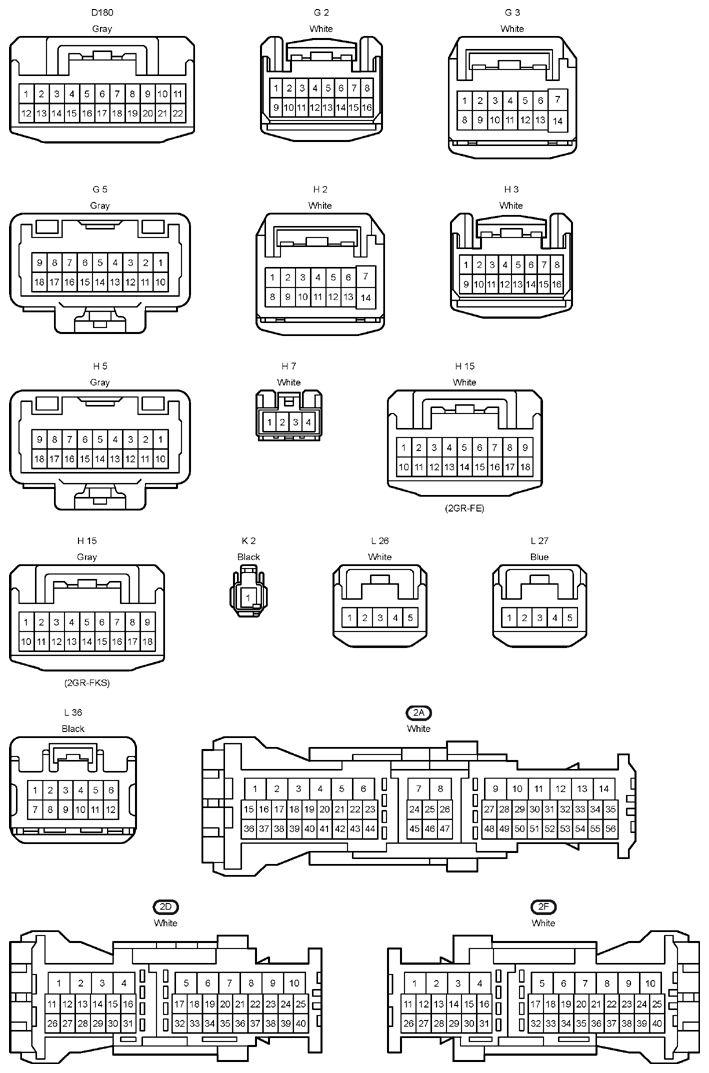

Fig 4: Connectors (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
