System Diagrams

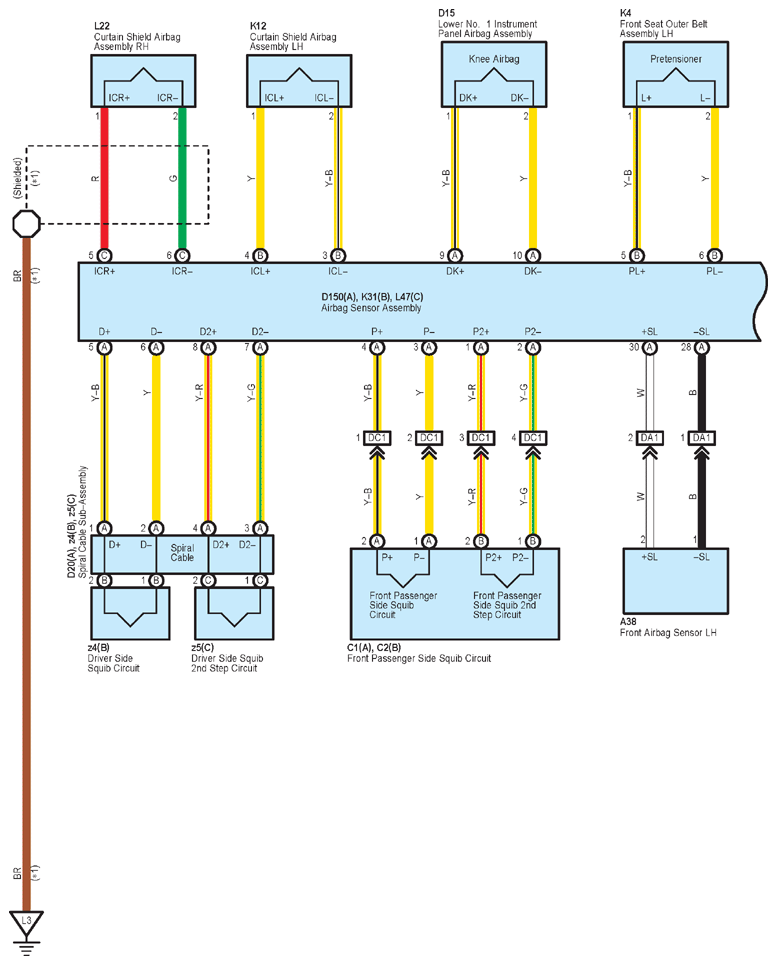

Fig 1: SRS (1 Of 6)
G12221830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

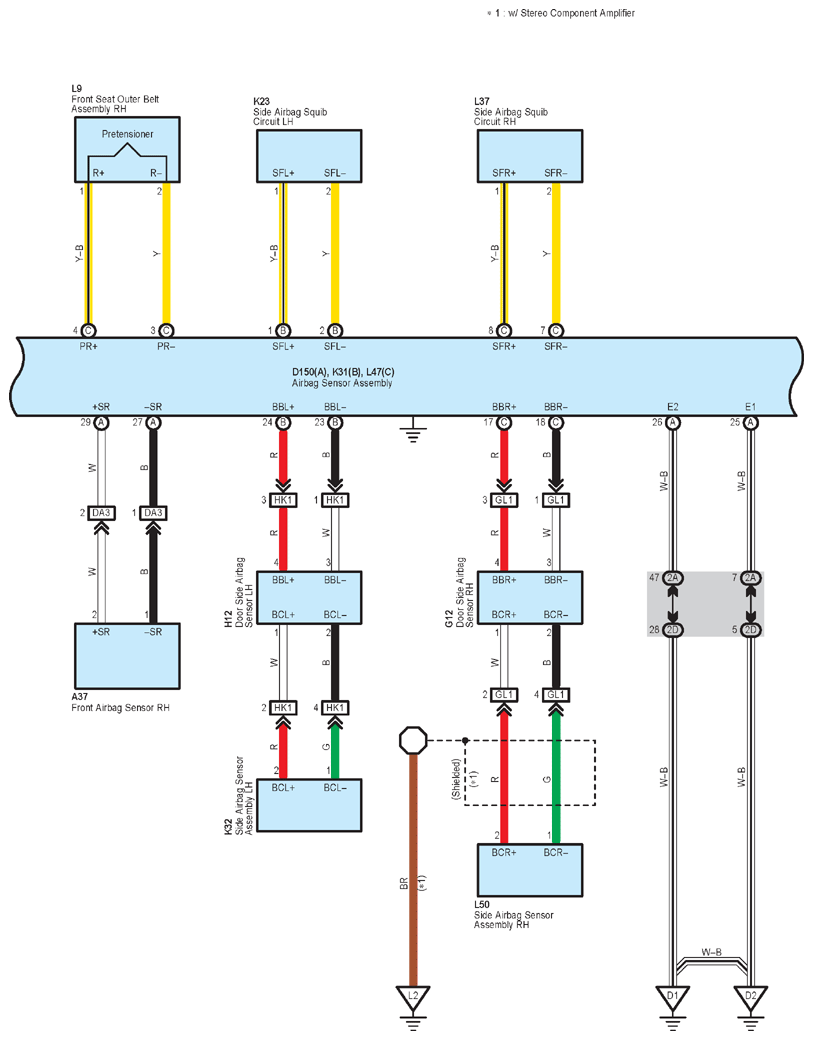

Fig 2: SRS (2 Of 6)
G12221831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

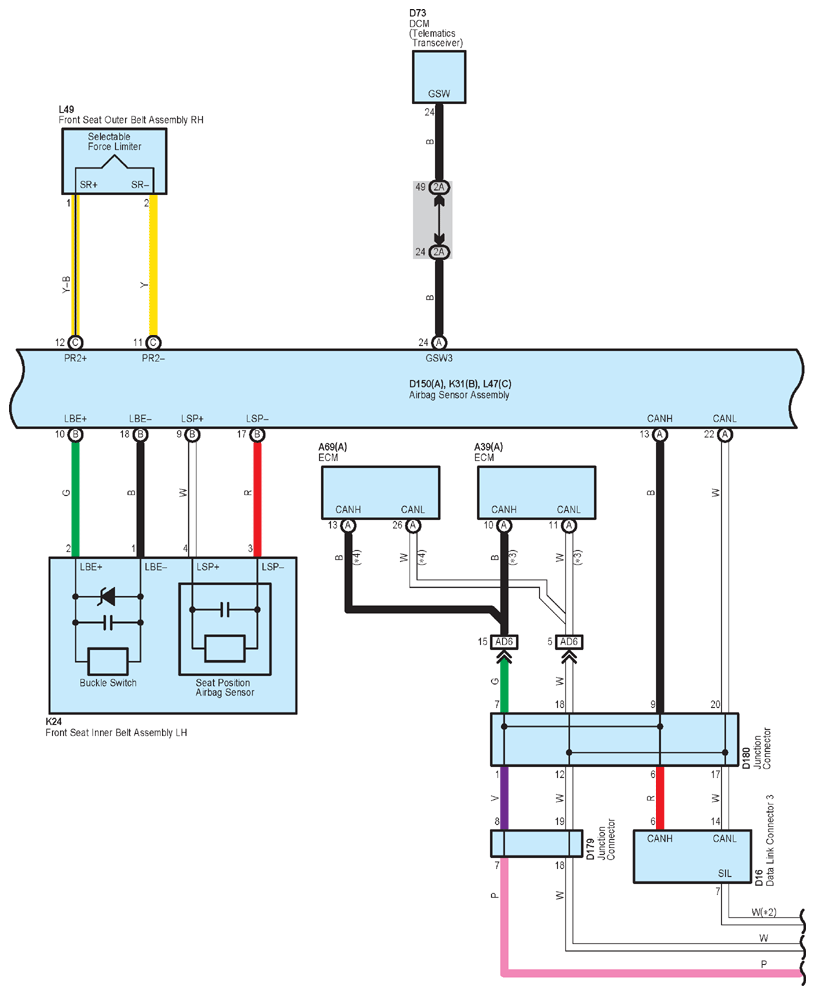

Fig 3: SRS (3 Of 6)
G12221832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

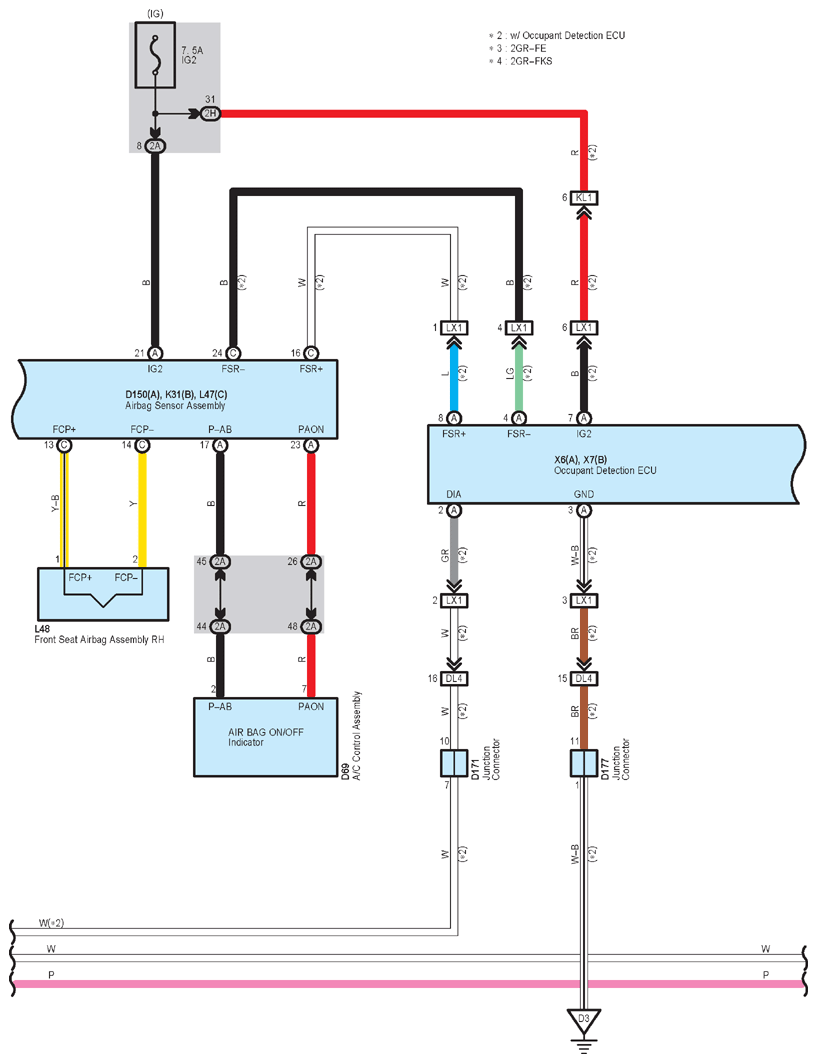

Fig 4: SRS (4 Of 6)
G12221833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

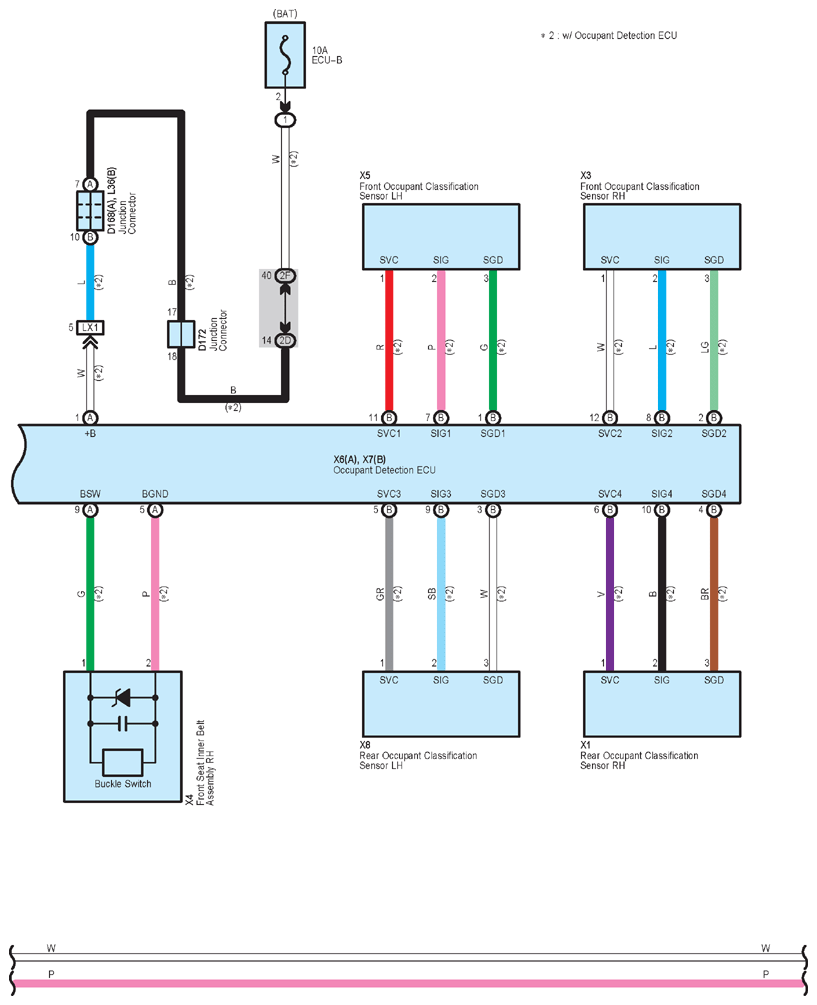

Fig 5: SRS (5 Of 6)
G12221834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

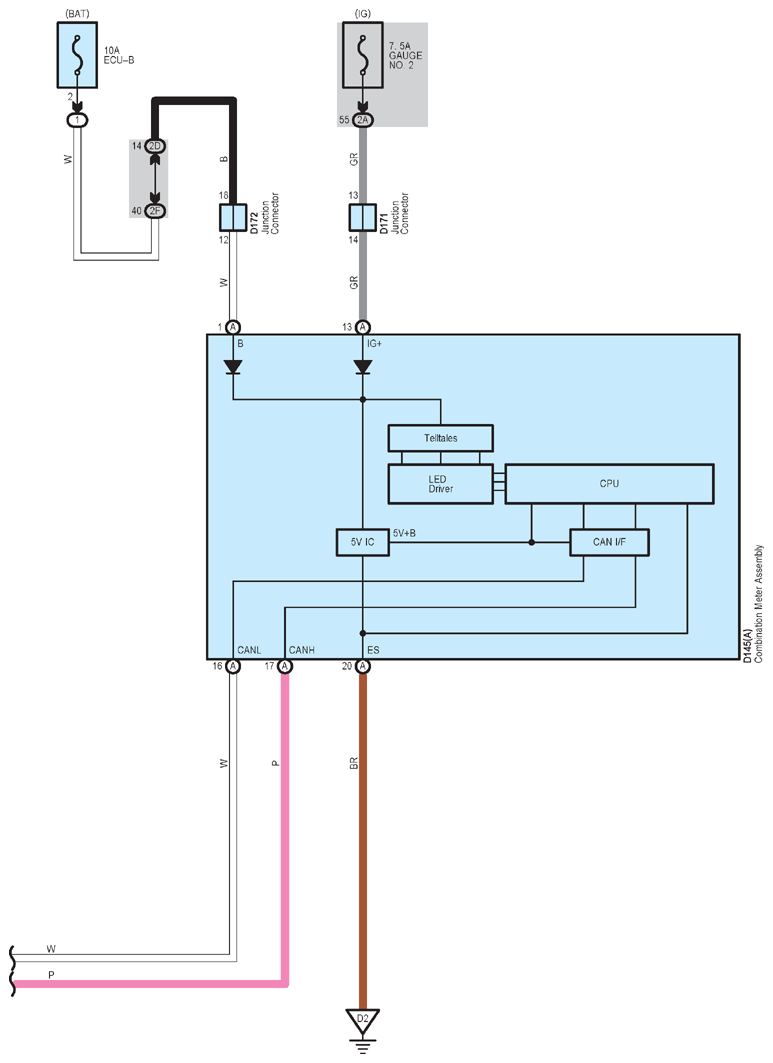

Fig 6: SRS (6 Of 6)
G12221835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
