Removal [12/2015 - 08/2016]: Procedure

  1. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY

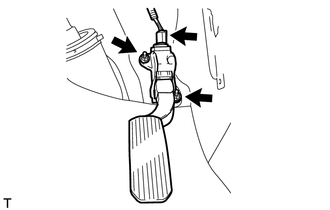

    1. Disconnect the accelerator pedal sensor assembly connector.
      GTY441445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and the accelerator pedal sensor assembly.
      NOTE:
      • Avoid physical shocks to the accelerator pedal sensor assembly.
      • Do not disassemble the accelerator pedal sensor assembly.
