Removal [12/2015 - 08/2016]: Procedure

  1. REMOVE RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR

    (Refer to REMOVAL [12/2015 - 08/2016] )

  2. REMOVE TRANSVERSE ENGINE MOUNTING BRACKET

    HINT:

    Securely support the automatic transaxle using a jack.

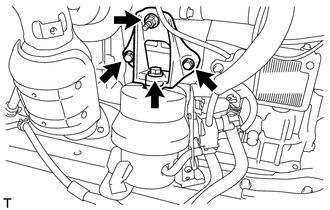

    1. Remove the 3 bolts, nut and the transverse engine mounting bracket.
      GTY294976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT ENGINE MOUNTING INSULATOR ASSEMBLY

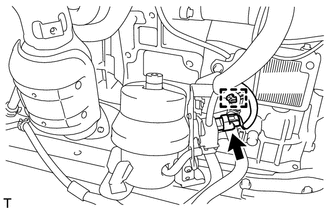

    1. Disconnect the duty vacuum switching valve connector.
      GTY295911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the wire harness clamp.

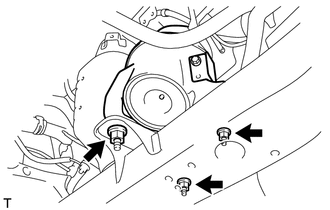

    3. Remove the 3 nuts and the front engine mounting insulator assembly.
      GTY298026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
