Removal [12/2015 - 08/2016]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    (Refer to REMOVAL [12/2015 - 08/2016] )

  2. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the sensor connector.

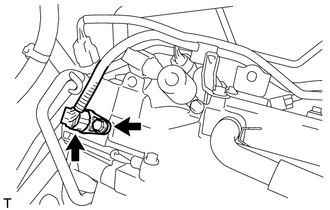

      GTY697629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the sensor.
  3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the sensor connector.

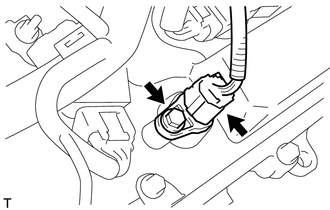

      GTY306065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the sensor.
  4. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the sensor connector.

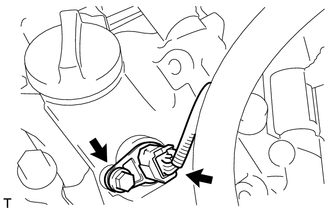

      GTY298019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the sensor.
  5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the sensor connector.

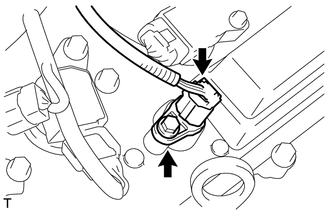

      GTY298018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the sensor.
