Inspection [12/2015 - 08/2016]: Procedure
- INSPECT CRANKSHAFT POSITION SENSOR

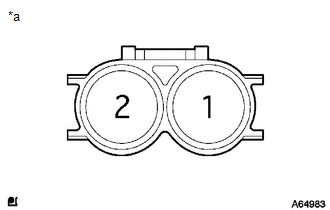

- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*a Component without harness connected
(Crankshaft Position Sensor)Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 Cold 1630 to 2740 Ω Hot 2065 to 3225 Ω HINT:
In the table above, the terms "Cold" and "Hot" refer to the temperature of the coils. Cold means approximately -10 to 50°C (14 to 122°F). Hot means approximately 50 to 100°C (122 to 212°F).
If the resistance is not as specified, replace the crankshaft position sensor.
- Measure the resistance according to the value(s) in the table below.
