Removal [12/2015 - 08/2016]: Procedure

  1. REMOVE W/PULLEY COMPRESSOR ASSEMBLY

    (Refer to REMOVAL [12/2015 - ] )

  2. REMOVE CRANKSHAFT POSITION SENSOR

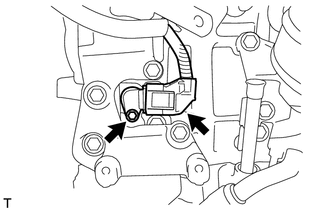

    1. Disconnect the crankshaft position sensor connector.
      GTY298011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the crankshaft position sensor.
