Removal [12/2015 - 08/2016]: Procedure

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    (Refer to REMOVAL [12/2015 - ] )

  2. REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  3. REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL

    See step  6

  4. REMOVE AIR CLEANER AND HOSE

    See step  7

  5. REMOVE ECM

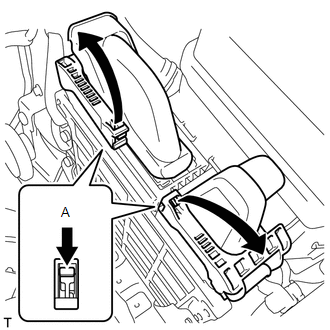

    1. While slightly pushing portion A of the lever of the ECM connector, turn the lever until it makes a click sound.
      GTY453692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 ECM connectors.
      NOTE:

      After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connecting part of the connectors.

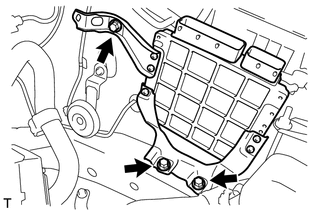

    3. Remove the 3 bolts and the ECM with the brackets.
      GTY441446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ECM BRACKET

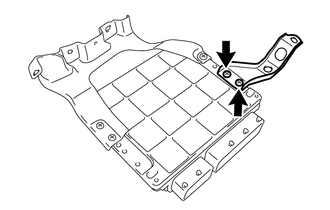

    1. Remove the 2 screws and the ECM bracket.
      GTY441444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 ECM BRACKET

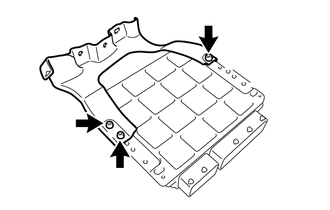

    1. Remove the 3 screws and the No. 2 ECM bracket.
      GTY439179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
