Removal [12/2015 - 08/2016]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 4

  3. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  4. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    (Refer to REMOVAL [12/2015 - ] )

  5. REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  6. REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL

    See step  6

  7. REMOVE AIR CLEANER AND HOSE

    See step  7

  8. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

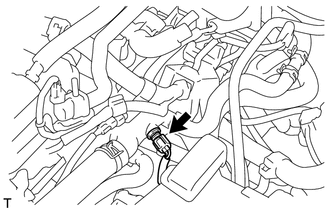

    1. Disconnect the engine coolant temperature sensor connector.
      GTY295912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

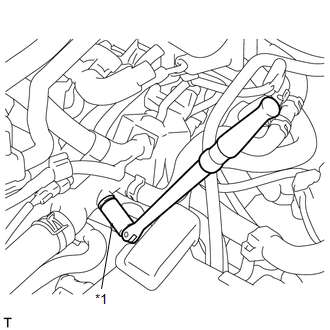

    2. Using a 19 mm deep socket wrench, remove the engine coolant temperature sensor.
      GTY740366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 19 mm Deep Socket Wrench
    3. Remove the gasket from the sensor.
