Inspection [12/2015 - 08/2016]: Procedure

  1. INSPECT KNOCK SENSOR
    1. Measure the resistance according to the value(s) in the table below.

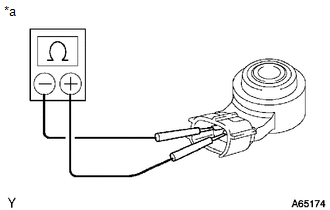

      GTY703126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Knock Sensor)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (Ground) - 2 (Output) 20°C (68°F) 120 to 280 kΩ

      If the result is not as specified, replace the knock sensor.
