On-Vehicle Inspection [12/2015 - 08/2016]: Procedure

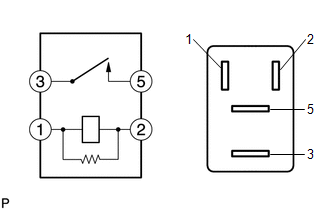

  1. INSPECT EFI MAIN RELAY
    1. Measure the resistance according to the value(s) in the table below.
      GTY721741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 5 Battery voltage not applied 10 kΩ or higher
      3 - 5 Battery voltage applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the relay.

  2. INSPECT C/OPN RELAY
    1. Measure the resistance according to the value(s) in the table below.
      GTY721741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 5 Battery voltage not applied 10 kΩ or higher
      3 - 5 Battery voltage applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the relay.

  3. INSPECT F/PMP RELAY
    1. Measure the resistance according to the value(s) in the table below.
      GTY274977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 4 Battery voltage not applied Below 1 Ω
      3 - 5 Battery voltage not applied 10 kΩ or higher
      3 - 4 Battery voltage applied to terminals 1 and 2 10 kΩ or higher
      3 - 5 Battery voltage applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the relay.

  4. INSPECT IG2 RELAY (w/ Smart Key System)
    1. Measure the resistance according to the value(s) in the table below.
      GTY721741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 5 Battery voltage not applied 10 kΩ or higher
      3 - 5 Battery voltage applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the relay.

  5. INSPECT AIR FUEL RATIO SENSOR HEATER RELAY
    1. Measure the resistance according to the value(s) in the table below.
      GTY721741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 5 Battery voltage not applied 10 kΩ or higher
      3 - 5 Battery voltage applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the relay.
