System Diagrams

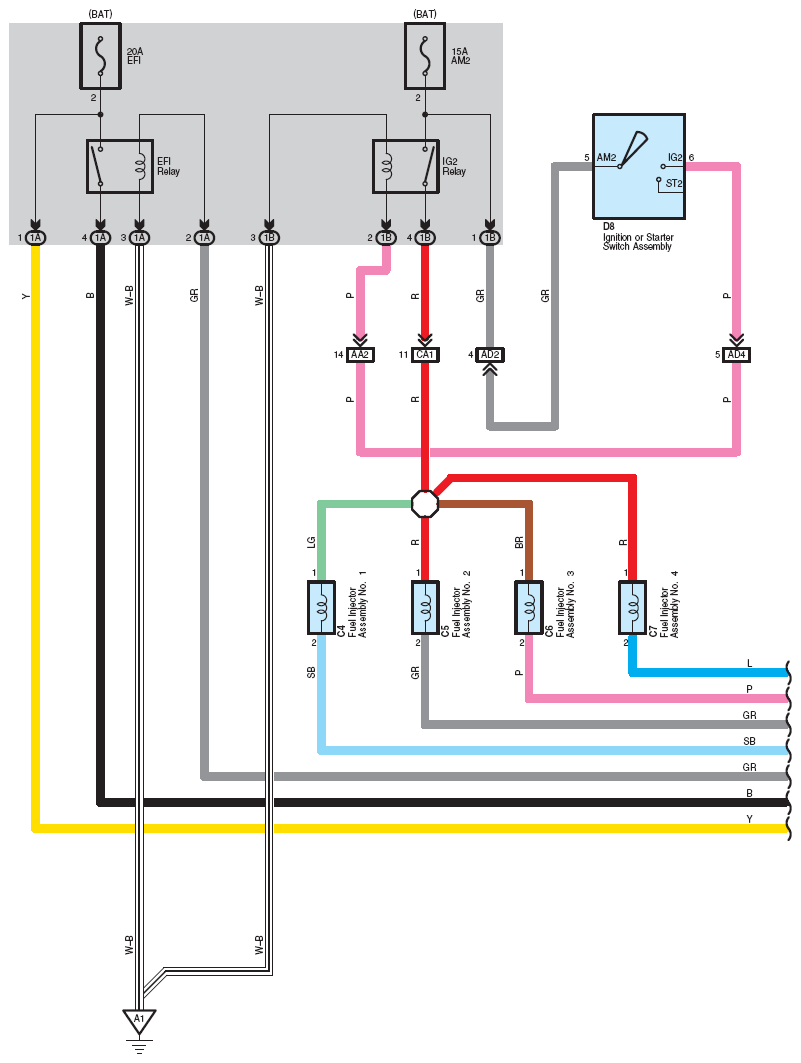

Fig 1: Engine Control - Sedan (1 Of 10)

G12219998

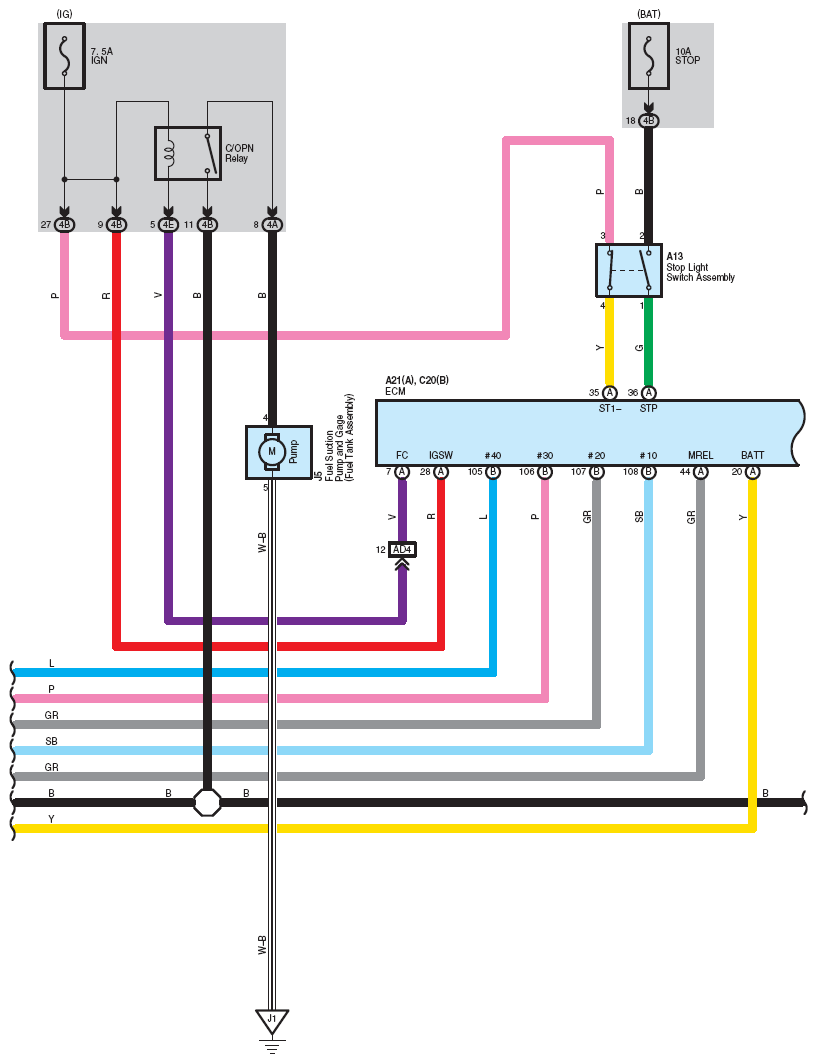

Fig 2: Engine Control - Sedan (2 Of 10)

G12219999

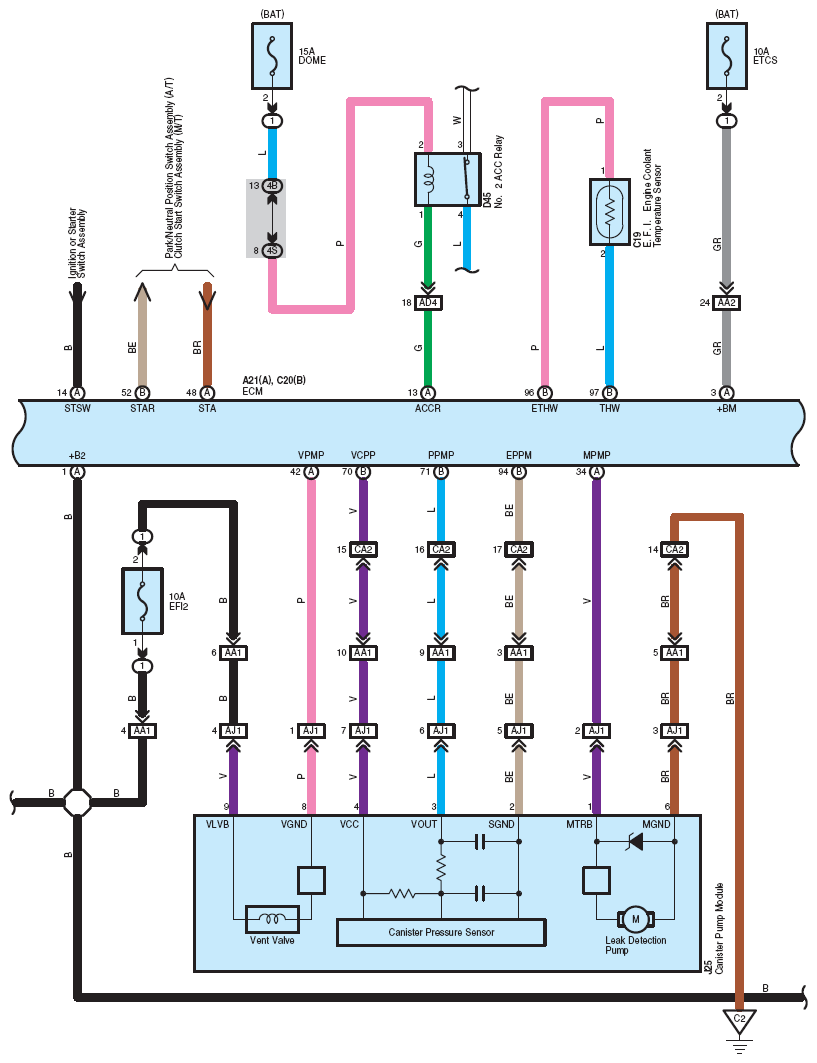

Fig 3: Engine Control - Sedan (3 Of 10)

G12220000

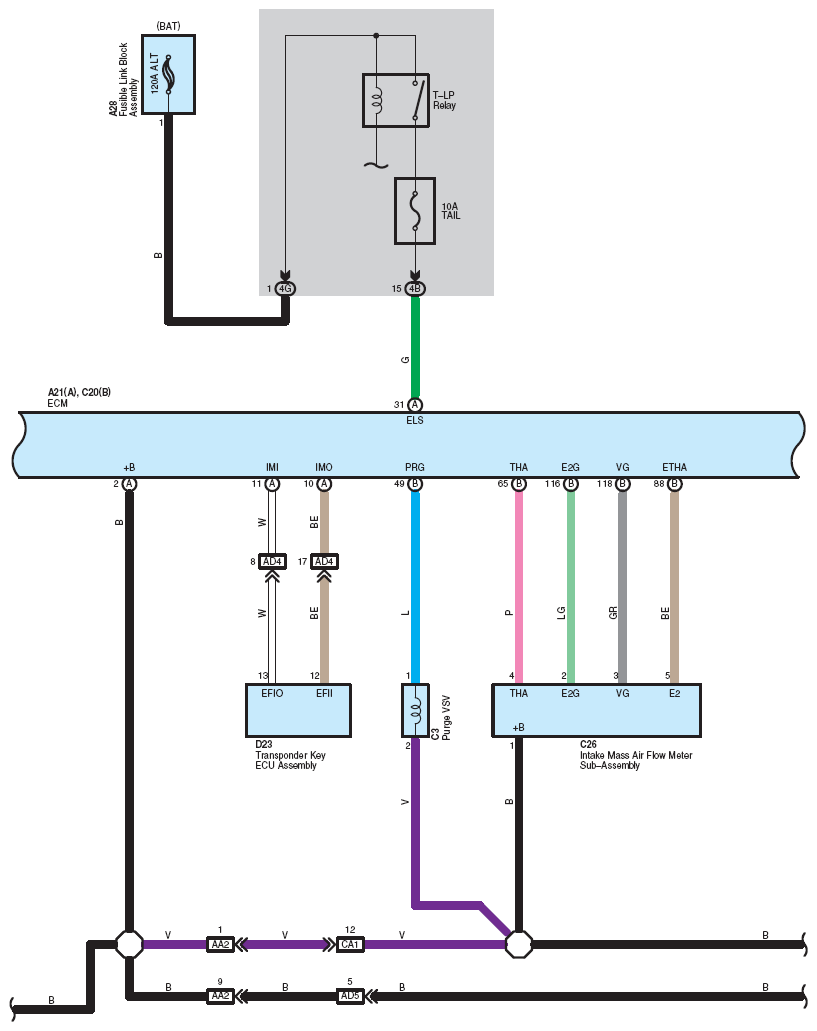

Fig 4: Engine Control - Sedan (4 Of 10)

G12220001

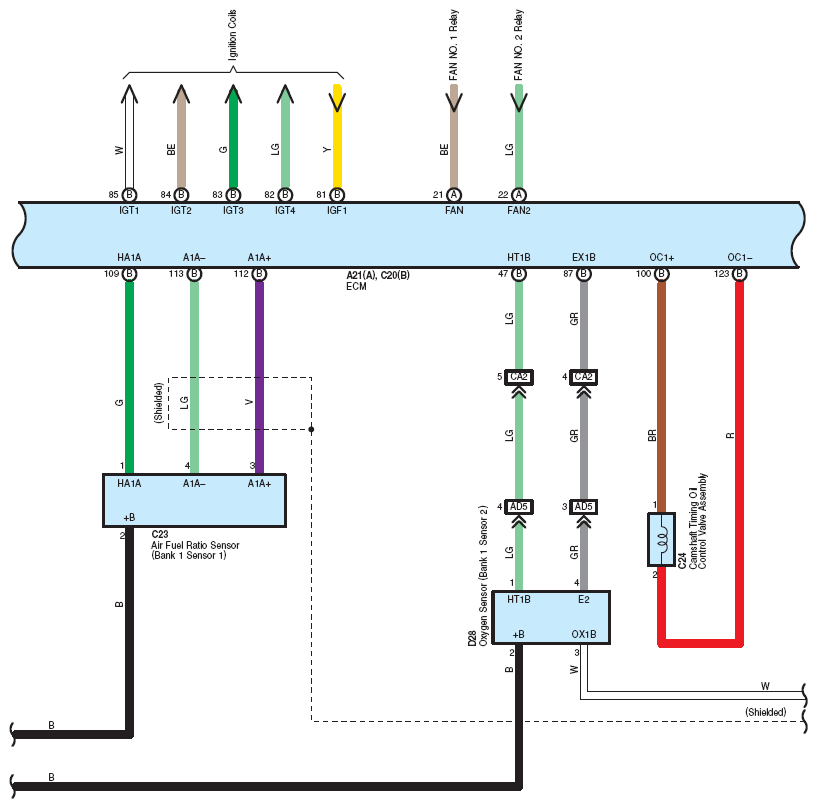

Fig 5: Engine Control - Sedan (5 Of 10)

G12220002

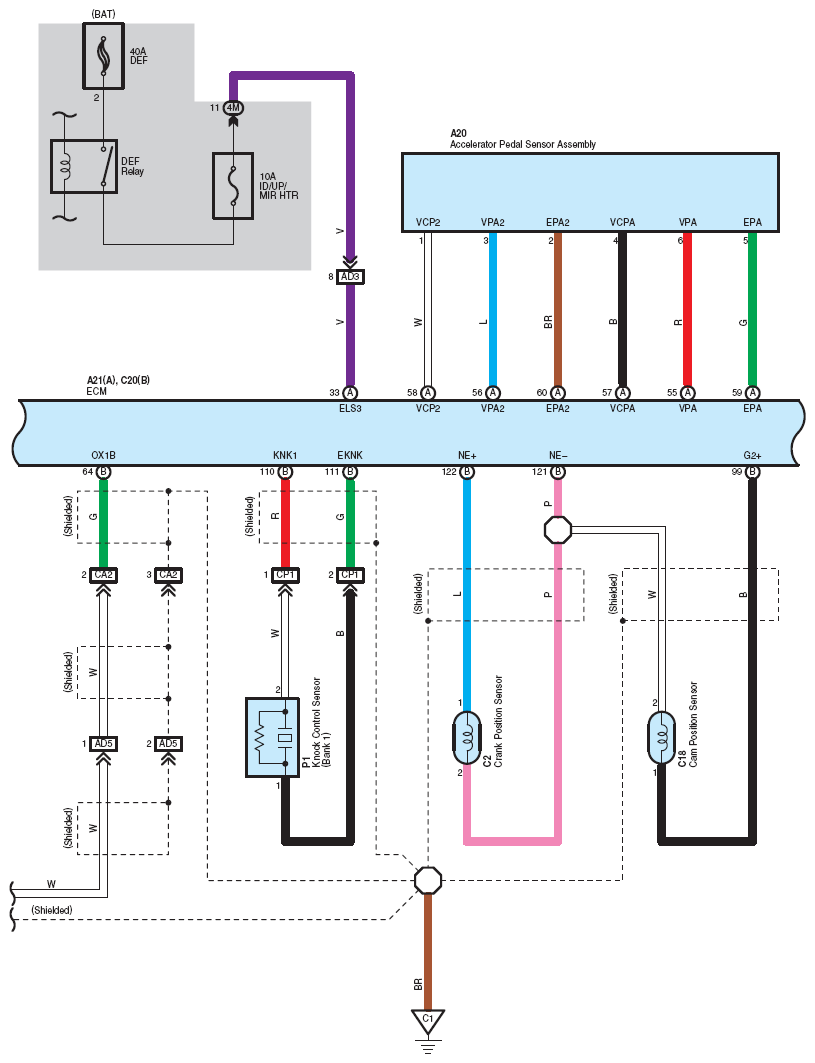

Fig 6: Engine Control - Sedan (6 Of 10)

G12220003

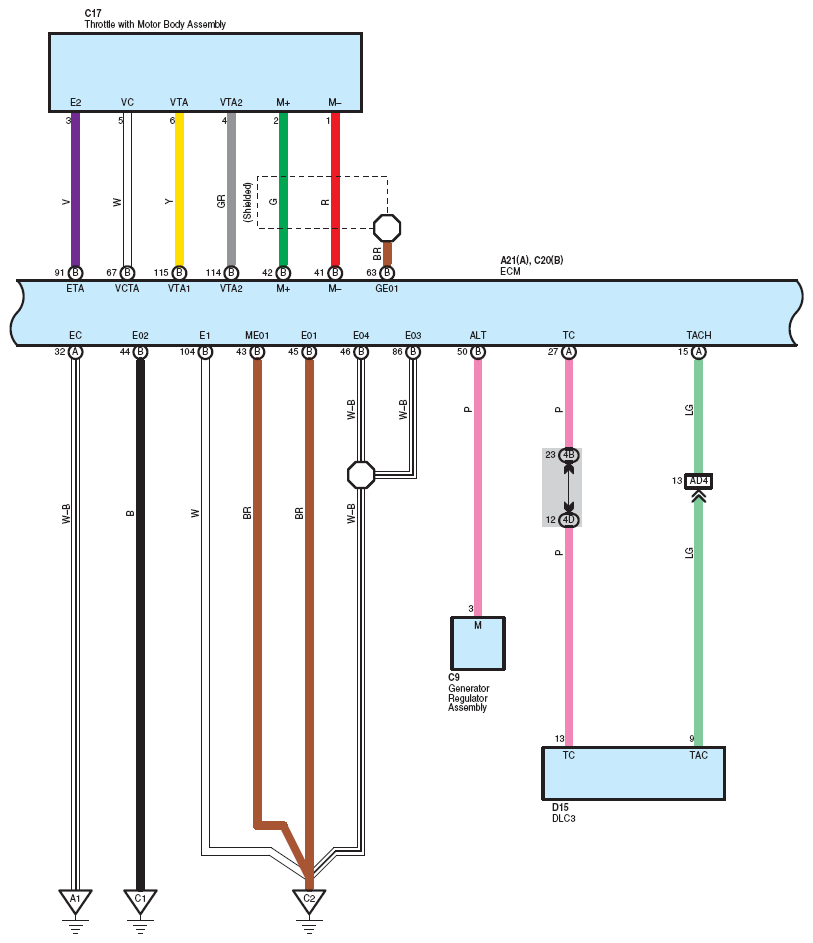

Fig 7: Engine Control - Sedan (7 Of 10)

G12220004

Fig 8: Engine Control - Sedan (8 Of 10)

G12220005

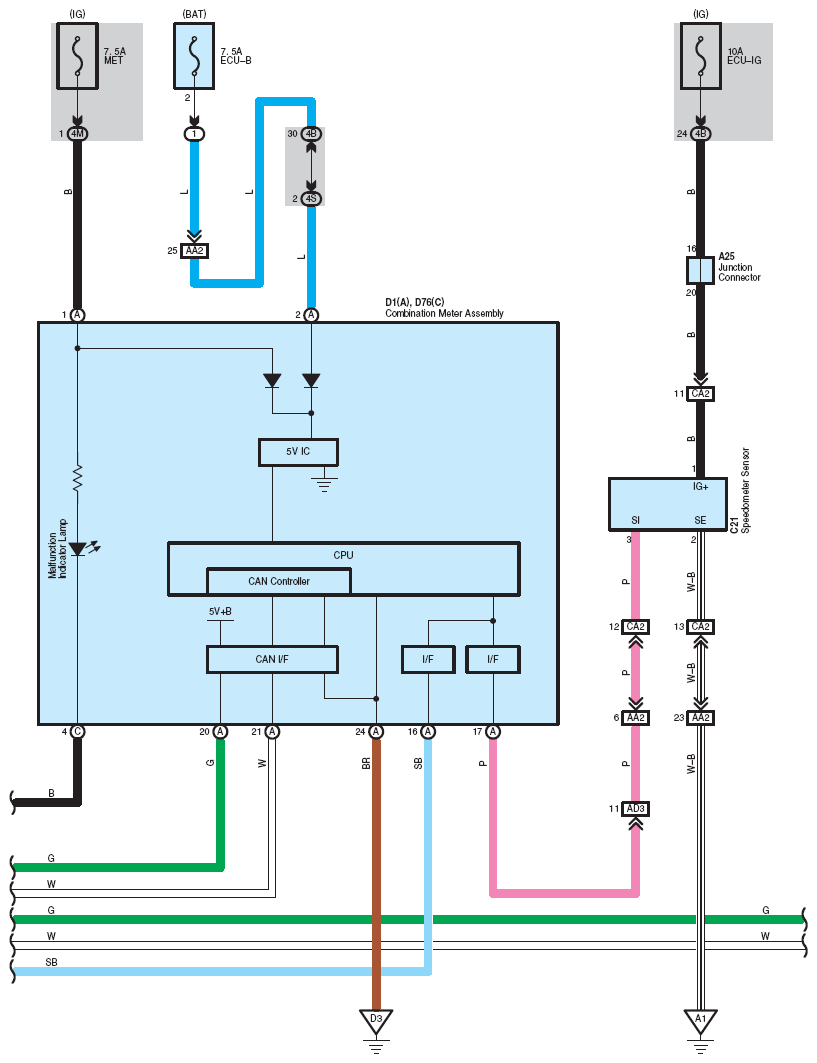

Fig 9: Engine Control - Sedan (9 Of 10)

G12220006

Fig 10: Engine Control - Sedan (10 Of 10)

G12220007
