System Diagrams

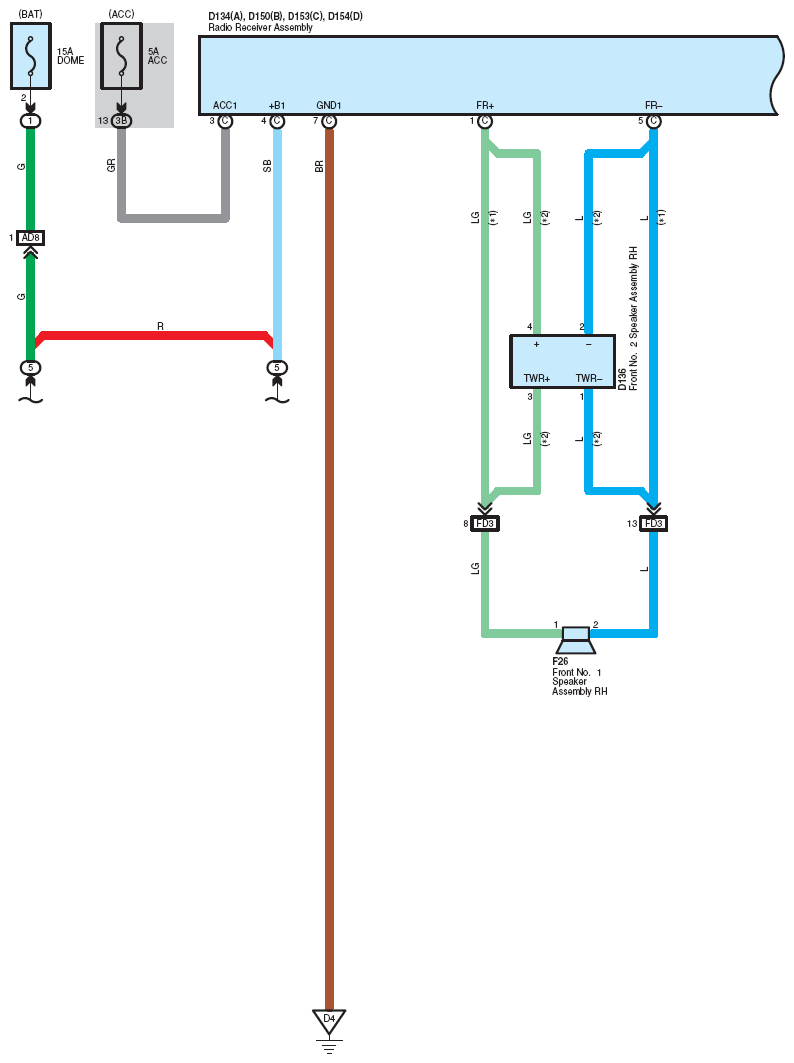

Fig 1: Audio System - Hatchback (1 Of 7)
G12219872
Fig 2: Audio System - Hatchback (2 Of 7)
G12219873

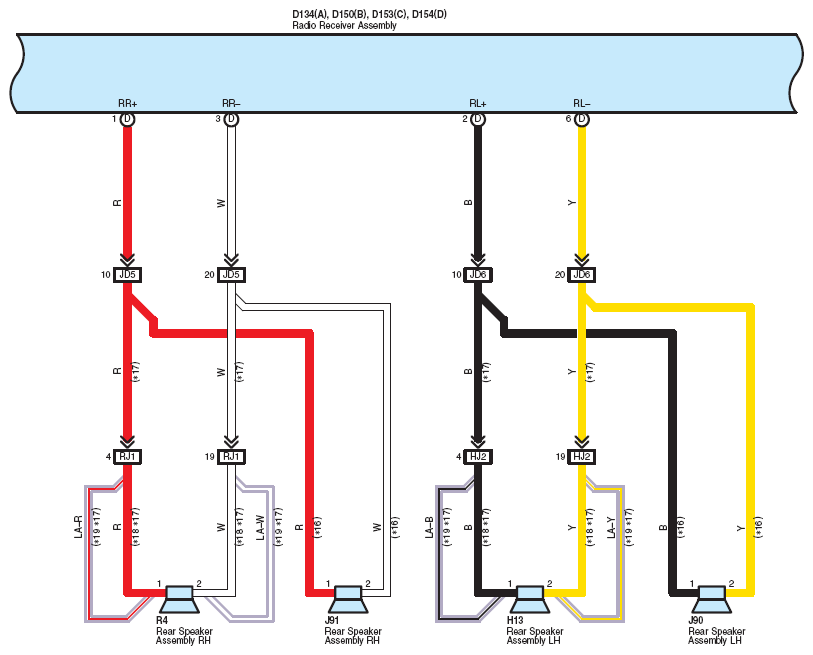

Fig 3: Audio System - Hatchback (3 Of 7)
G12219874

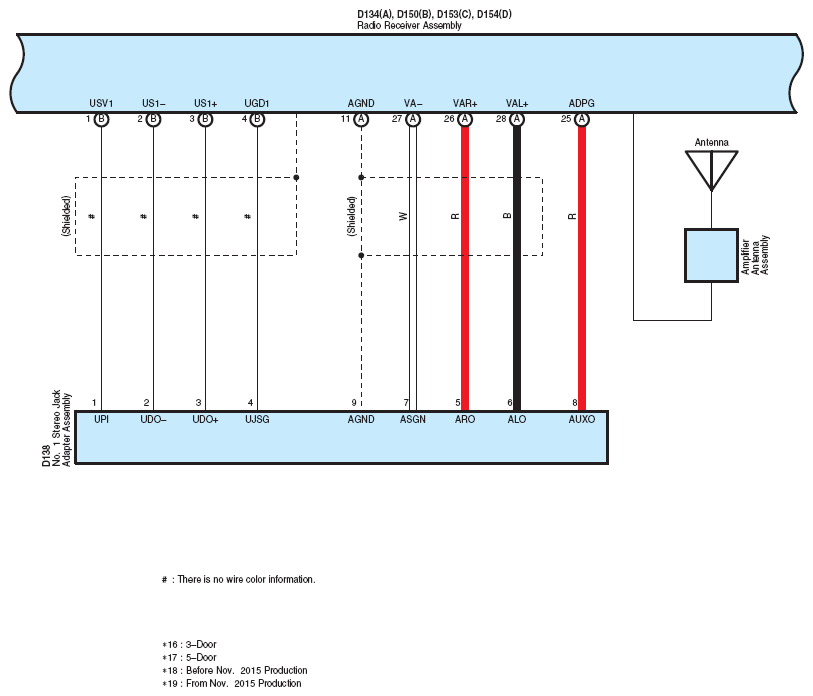

Fig 4: Audio System - Hatchback (4 Of 7)
G12219875

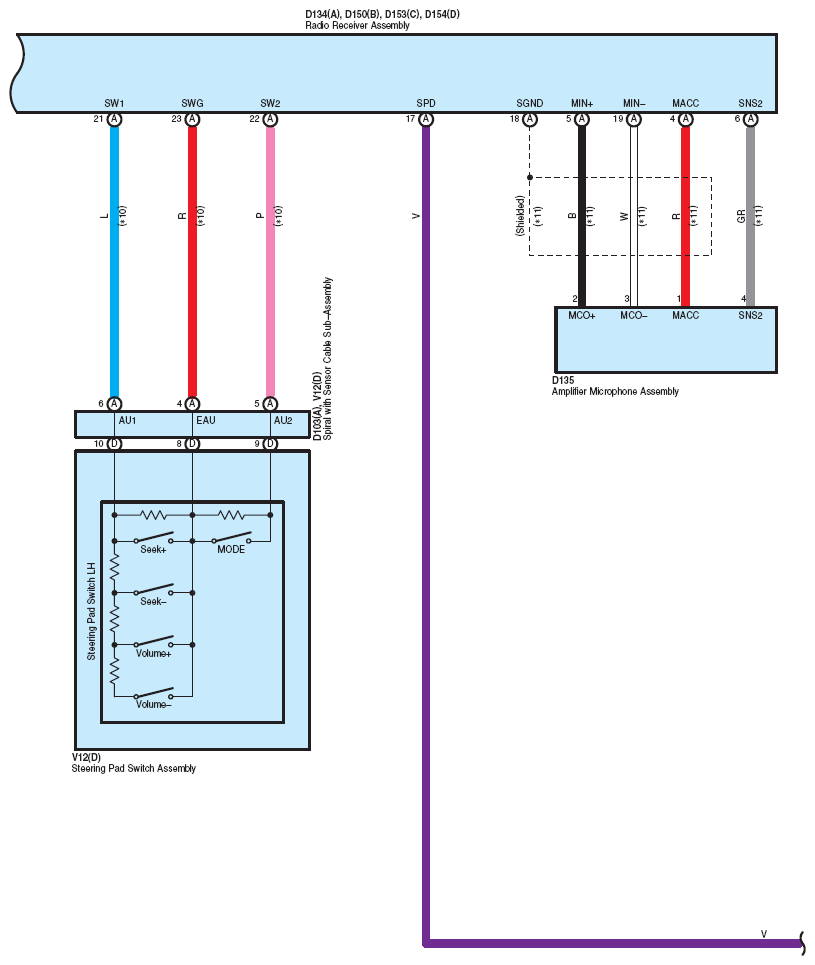

Fig 5: Audio System - Hatchback (5 Of 7)
G12219876
Fig 6: Audio System - Hatchback (6 Of 7)
G12219877

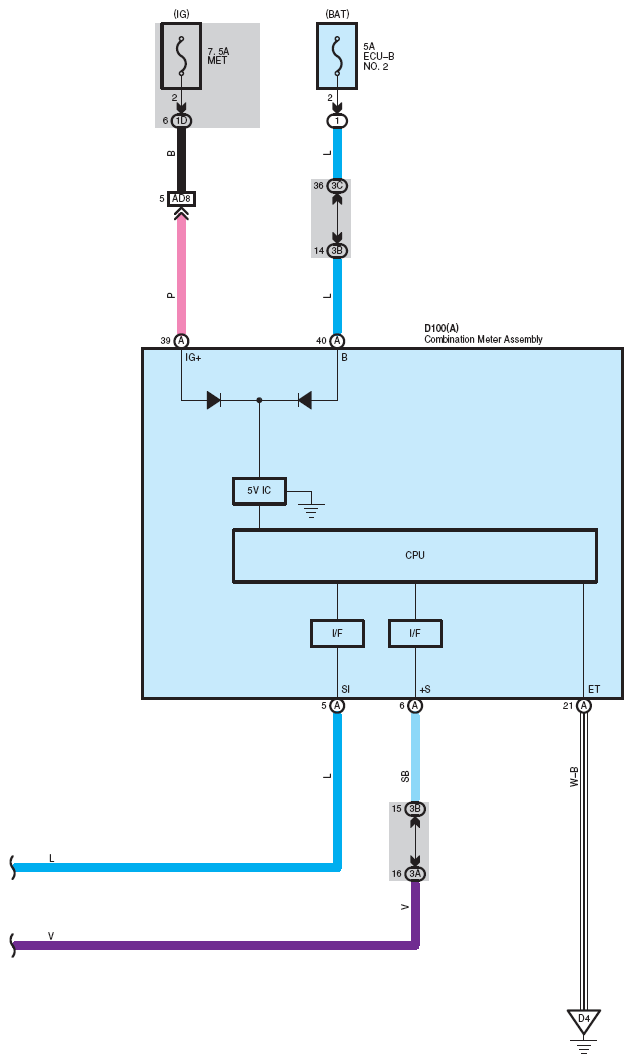

Fig 7: Audio System - Hatchback (7 Of 7)
G12219878
