System Diagrams

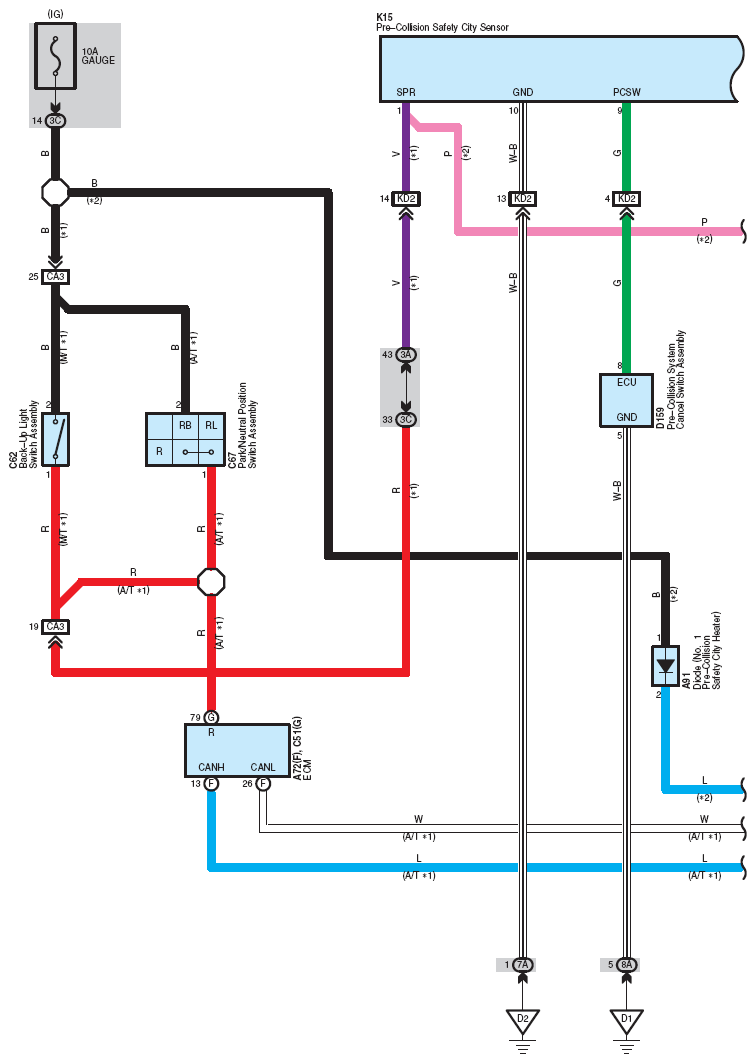

Fig 1: Pre-Collision System - Hatchback (1 Of 4)

G12220124

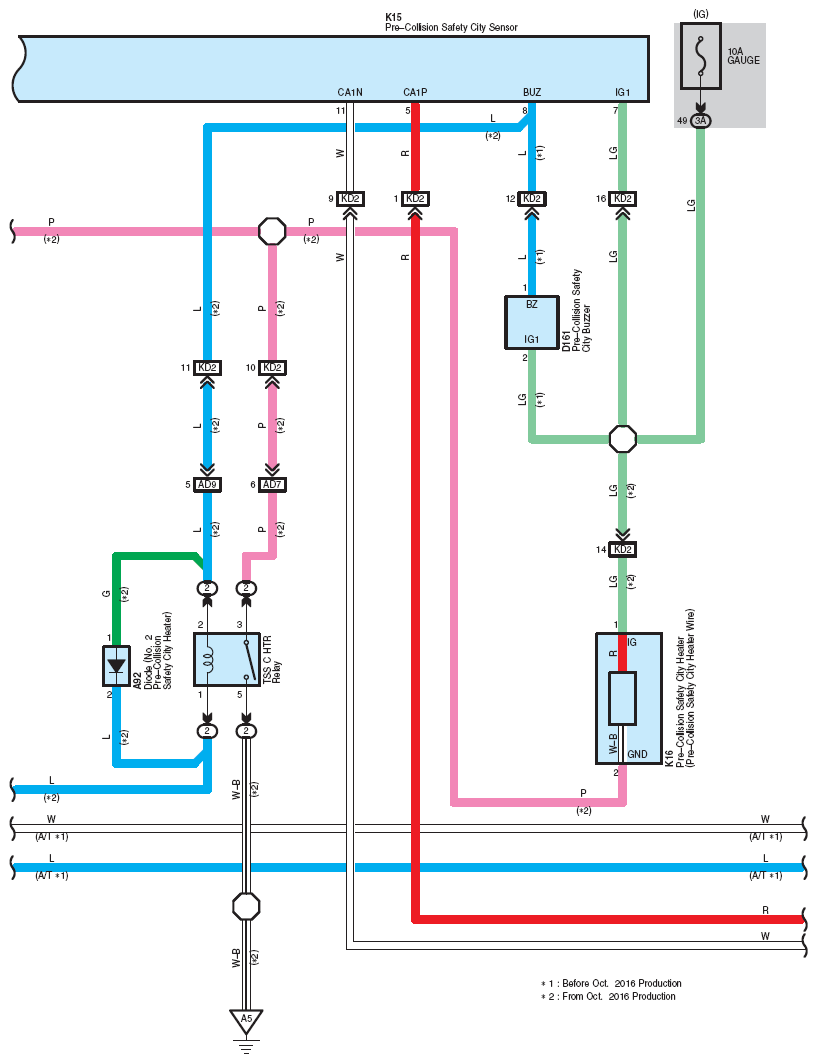

Fig 2: Pre-Collision System - Hatchback (2 Of 4)

G12220125

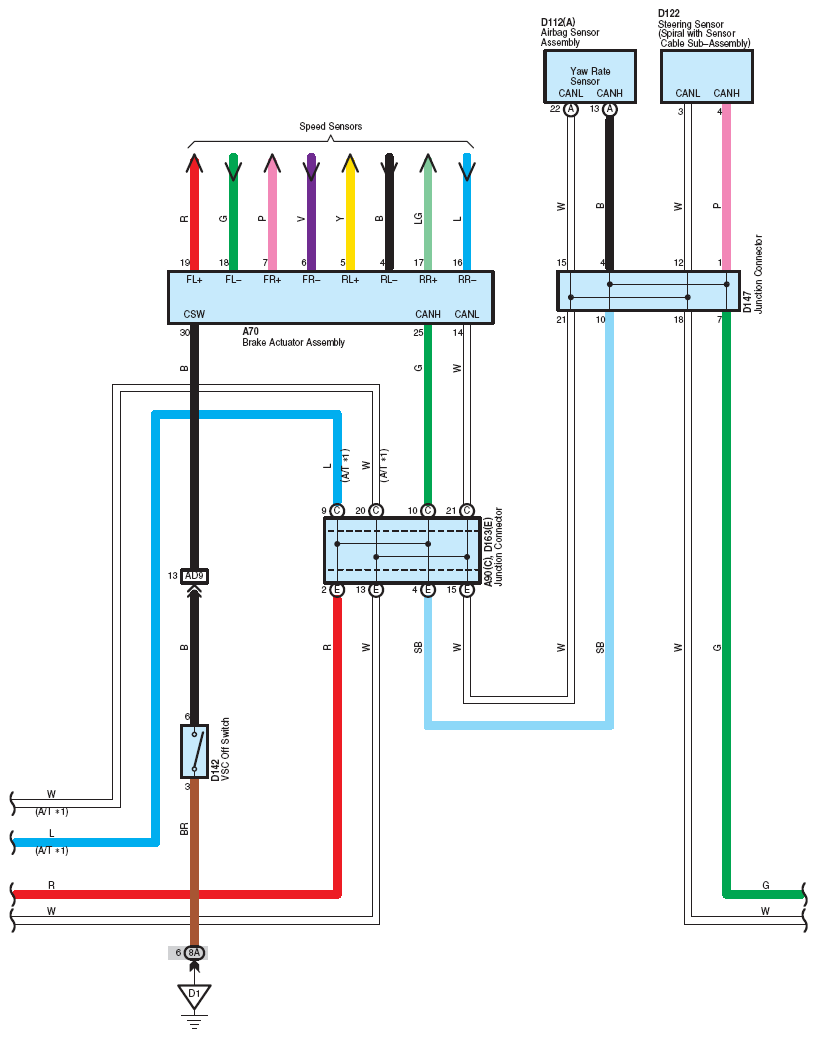

Fig 3: Pre-Collision System - Hatchback (3 Of 4)

G12220126

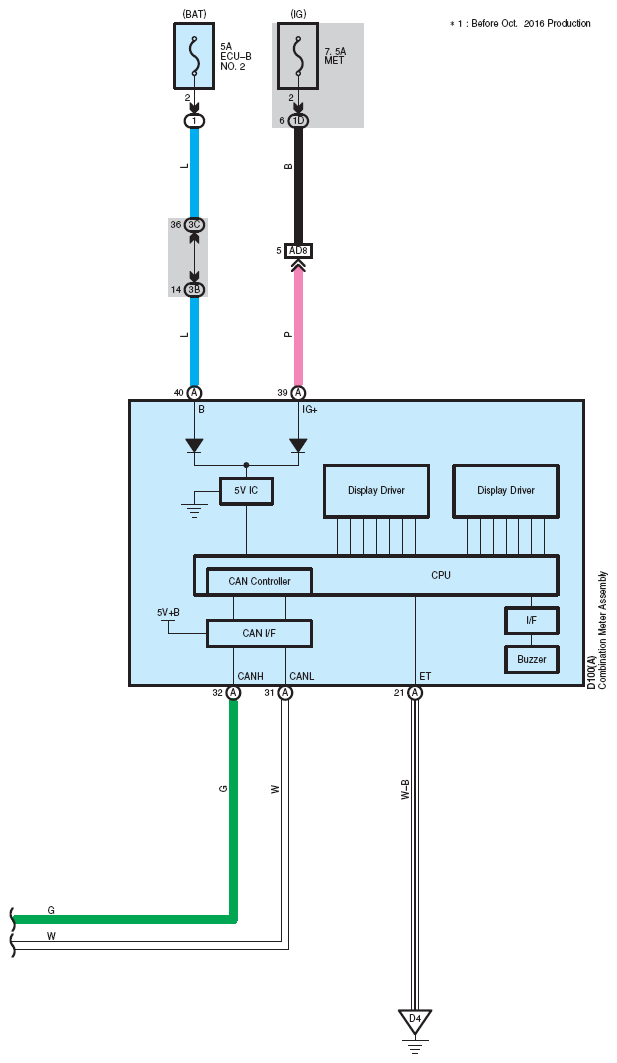

Fig 4: Pre-Collision System - Hatchback (4 Of 4)

G12220127
