DTC P17A8: Transfer Shift Motor Control Circuit Circuit Open [08/2019 - ]: Procedure

1. Disconnect the F46 4 wheel drive control ECU connector.
2. Disconnect the B47 transfer shift actuator assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F46-2 (HM1) - B47-8 (HM1)	Always	Below 1 Ω
   F46-6 (HM2) - B47-7 (HM2)	Always	Below 1 Ω

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the B47 transfer shift actuator assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   8 (HM1) - 7 (HM2)	Always	1.5 to 100 Ω

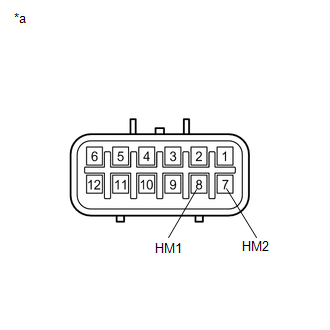

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Transfer Shift Actuator Assembly)

Result:

OK

REPLACE 4 WHEEL DRIVE CONTROL ECU. Refer to  REMOVAL [08/2015 - ]

Result:

NG

REPLACE TRANSFER SHIFT ACTUATOR ASSEMBLY. Refer to  DISASSEMBLY [08/2015 - ]
