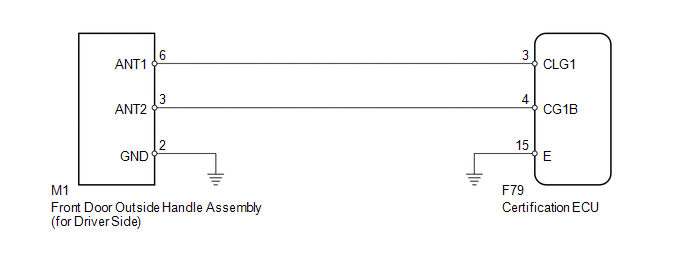

DTC B27A1: Open in Driver Side Electrical Antenna Circuit [08/2015 - 08/2019]: Wiring Diagram

GTY223862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
