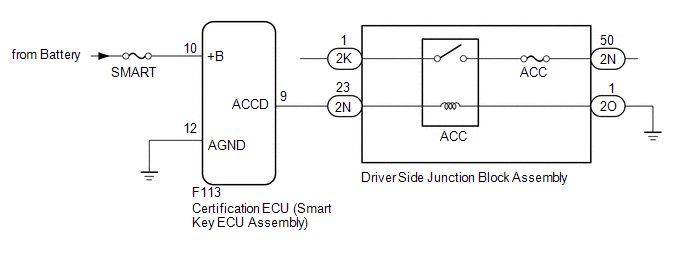

DTC B2274: ACC Monitor [08/2019 - ]: Wiring Diagram

GTY883978

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
