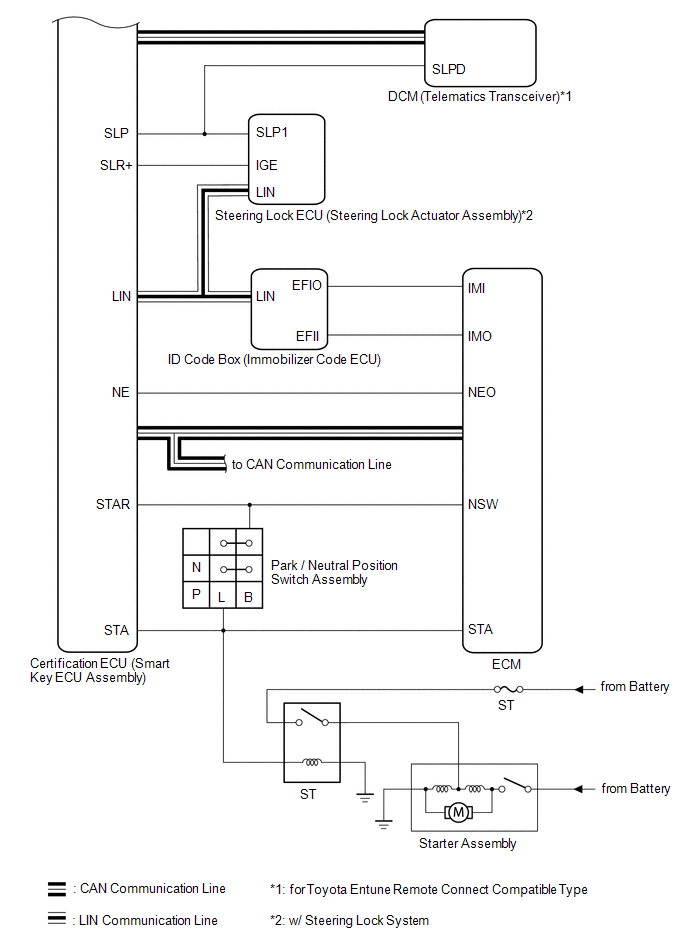

System Diagram [08/2021 - 08/2022]
| Component | Outline |
|---|---|
Engine switch
|
|
| Certification ECU (smart key ECU assembly) |
|
| ID code box (immobilizer code ECU) |
|
| ECM | Outputs a signal indicating that the engine has started to the certification ECU (smart key ECU assembly) when starting the engine. |
| Steering lock ECU (steering lock actuator assembly)* |
|
| Combination meter assembly |
|
| IG, ACC relay | Turns on/off according to the certification ECU (smart key ECU assembly) and provides power to each system. |
| Stop light switch assembly | Detects that the brake pedal has been depressed (switch is on) and outputs a signal to the certification ECU (smart key ECU assembly). |
|
Sends the request code from the certification ECU (smart key ECU assembly) and forms the vehicle interior detection area. |
| Door Control and Tire Pressure Monitoring System Receiver Assembly | Receives the smart key system code/wireless code sent from the electrical key transmitter sub-assembly and sends it to the certification ECU (smart key ECU assembly). |
| Electrical key transmitter sub-assembly | Sends the ID code upon receiving a request signal. |
*: w/ Steering Lock System
