Only Wireless Control Function is Inoperative [08/2015 - 08/2019]: Procedure

  1. CHECK POWER DOOR LOCK OPERATION
    1. Check the power door lock operation (Refer to OPERATION CHECK [08/2015 - 08/2019] ).

      OK

      Each door locks and unlocks normally.

    Result:

    NG

    Go to POWER DOOR LOCK CONTROL SYSTEM

    (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - 08/2019] )

    Result:

    OK

    See step  2

  2. CHECK KEY REMINDER WARNING OPERATION
    1. Check the key reminder buzzer operation (Refer to OPERATION CHECK [08/2015 - 08/2022] ).

      HINT:

      If the key reminder buzzer is functioning normally, it can be assumed that the unlock warning switch is also functioning normally.

      OK

      Key reminder buzzer operates normally.

    Result:

    NG

    Go to KEY REMINDER WARNING SYSTEM

    (Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - 08/2022] )

    Result:

    OK

    See step  3

  3. CHECK WIRELESS DOOR CONTROL TRANSMITTER
    1. Check whether the wireless door lock control functions operate normally with another registered transmitter.

      OK

      Wireless door lock control functions operate normally.

    Result:

    NG

    See step  5

    Result:

    OK

    See step  4

  4. CHECK TRANSMITTER BATTERY
    1. Remove the battery from the inoperative wireless door control transmitter (Refer to REPLACEMENT [08/2015 - 08/2019] ).
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      Battery positive (+) - Battery negative (-) Always 2.5 to 3.2 V

    Result:

    OK

    REPLACE DOOR CONTROL TRANSMITTER

    Result:

    NG

    REPLACE TRANSMITTER BATTERY

    (Refer to REPLACEMENT [08/2015 - 08/2019] )

  5. CHECK FOR ELECTRICAL NOISE
    1. Move the transmitter in the vicinity of the door control receiver.

      HINT:

      Refer to Parts Location for the location of the door control receiver (Refer to PARTS LOCATION [08/2015 - 08/2019] ).

    2. Press and hold either the lock or unlock transmitter switch for 1 second, and check that the doors are locked or unlocked accordingly.

      OK

      Wireless door lock control functions operate normally.

      HINT:

      • Check if electrical noise is the cause by moving the door control transmitter closer to the door control receiver. Moving closer will decrease the effects of electrical noise.
      • If the operation check can be performed normally, there is a high probability that electrical noise or a decrease in output from the door control transmitter is the cause of the malfunction. There is a high probability that electrical noise is the cause if the problem occurs only in a certain location or only during a certain time of day. Also, custom components may be causing electrical noise. If custom components are installed in the vehicle, remove them and perform the operation check again.

    Result:

    OK

    FIND CAUSE OF ELECTRICAL NOISE AND REMOVE IT

    Result:

    NG

    See step  6

  6. CHECK HARNESS AND CONNECTOR (DOOR CONTROL RECEIVER - MAIN BODY ECU)
    1. Disconnect the O11 receiver connector.
    2. Disconnect the F9 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O11-2 (RDA) - F9-26 (RDA) Always Below 1 Ω
      O11-3 (PRG) - F9-25 (PRG)
      O11-2 (RDA) or F9-26 (RDA) - Body ground Always 10 kΩ or higher
      O11-3 (PRG) or F9-25 (PRG) - Body ground

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (DOOR CONTROL RECEIVER - BATTERY AND BODY GROUND)
    1. Disconnect the O11 receiver connector.
      GTY738193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance and voltage according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O11-1 (GND) - Body ground Always Below 1 Ω

      Standard Voltage

      Tester Connection Condition Specified Condition
      O11-5 (+B) - Body ground Always 11 to 14 V

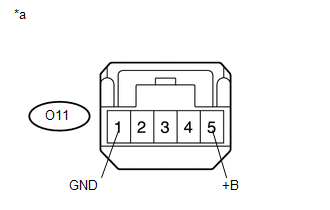

      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Door Control Receiver)

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CHECK DOOR CONTROL RECEIVER (OUTPUT)
    1. Using an oscilloscope, check the waveform.

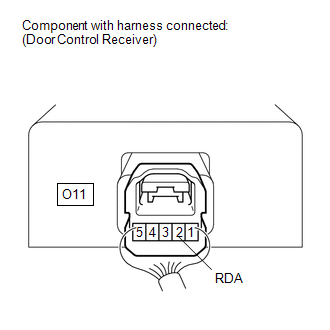

      GTY726532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      MEASUREMENT CONDITION

      Item Content
      Tester Connection O11-2 (RDA) - Body ground
      Tool Setting 10 V/DIV., 50 μsec./DIV.
      Condition No key in ignition key cylinder, all doors closed and transmitter switch off → on

      OK

      Waveform is output normally (refer to illustration).

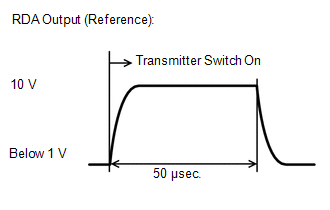

      GTY730874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

    (Refer to REMOVAL [08/2015 - 08/2019] )

    Result:

    NG

    REPLACE DOOR CONTROL RECEIVER

    (Refer to REMOVAL [08/2015 - 08/2019] )
