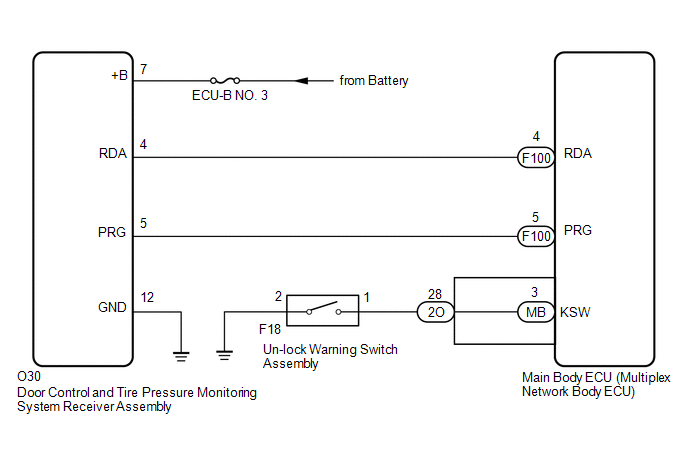

Only Wireless Control Function is Inoperative [08/2019 - 08/2022]: Wiring Diagram

GTY890125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
