DTC U1002: Lost Communication with Gateway Module (MS Bus); DTC U1114: Lost Communication with Main Switch Module [08/2015 - 08/2019]: Wiring Diagram

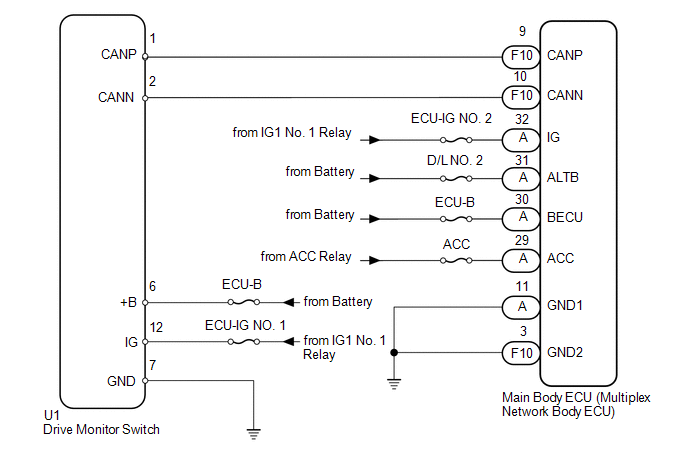

GTY739207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
