Audio Receiver Assembly Communication Stop Mode [08/2015 - 08/2019]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and branch wire.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] ).

    Result:

    NEXT

    See step  2

  2. CHECK FOR OPEN IN CAN BUS WIRE (RADIO AND DISPLAY RECEIVER ASSEMBLY BRANCH WIRE)
    1. Disconnect the G49 radio and display receiver assembly connector.

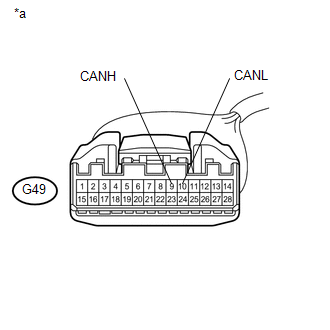

      GTY712576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      G49-9 (CANH) - G49-10 (CANL) Ignition switch off 54 to 69 Ω
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Radio and Display Receiver Assembly)

    Result:

    NG

    REPAIR OR REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY BRANCH WIRE OR CONNECTOR (CANH, CANL)

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - BATTERY AND BODY GROUND)
    1. Connect the cable to the negative (-) battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] ).

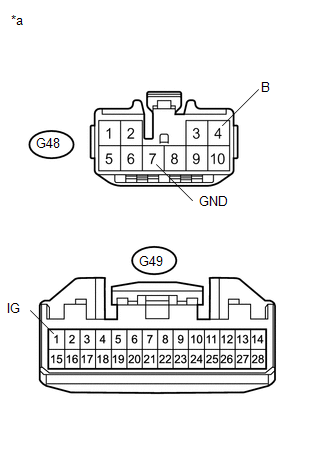

      GTY692703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the G48 and G49 radio and display receiver assembly connectors.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G48-7 (GND) - Body ground Always Below 1 Ω
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      G49-1 (IG) - Body ground Ignition switch ON 11 to 14 V
      G48-4 (B) - Body ground Always 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Radio and Display Receiver Assembly)

    Result:

    OK

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    (Refer to REMOVAL [08/2015 - 08/2019] )

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
