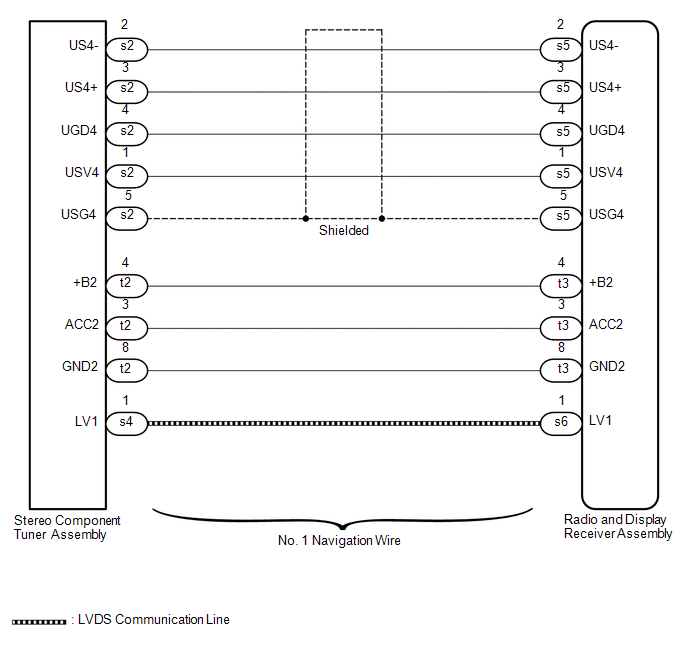

Data Signal Circuit between Radio Receiver and Extension Module [08/2015 - 08/2019]: Wiring Diagram

GTY698024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
