Driver Side Power Window does not Operate with Power Window Master Switch [08/2019 - 08/2022]: Procedure

1. Check if DTC B2312 is output. (Refer to DTC CHECK / CLEAR [08/2015 - ] ).

   OK

   DTC B2312 is not output.

Result:

NG

GO TO DTC B2312

(Refer to DTC B2312: Power Window Switch Malfunction [08/2015 - ] )

Result:

OK

See step  2

1. Use the Data List to check if the multiplex network master switch is functioning properly. (Refer to DATA LIST / ACTIVE TEST [08/2019 - 08/2022] ).
   D-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   D Door P/W Up SW	Driver side power window manual up signal / ON or OFF	ON: Driver side power window manual up switch operated OFF: Driver side power window switch not operated	-
   D Door P/W Down SW	Driver side power window manual down signal / ON or OFF	ON: Driver side power window manual down switch operated OFF: Driver side power window switch not operated	-

   OK

   On tester screen, each item changes between ON and OFF according to above chart.

Result:

NG

See step  4

Result:

OK

See step  3

1. Select the Active Test, use the Techstream to generate a control command, and then check that power window regulator motor operates. (Refer to DATA LIST / ACTIVE TEST [08/2019 - 08/2022] ).
   D-DOOR MOTOR



   Tester Display	Test Part	Control Range	Diagnostic Note
   Power Window	Driver side power window	OFF/UP/DOWN	-

   OK

   The power window regulator motor operates normally.

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

(Refer to REMOVAL [08/2019 - ] )

Result:

NG

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (FOR DRIVER DOOR)

(Refer to REMOVAL [08/2015 - ] )

1. Disconnect the h1 multiplex network master switch assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   h1-11 (B) - Body ground	Always	11 to 14 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   h1-12 (GND) - Body ground	Always	Below 1 Ω

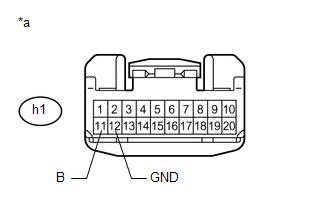

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Multiplex Network Master Switch Assembly)

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

1. Disconnect the I2 power window regulator motor assembly LH (for driver door) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   I2-2 (B) - Body ground	Always	11 to 14 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I2-1 (GND) - Body ground	Always	Below 1 Ω

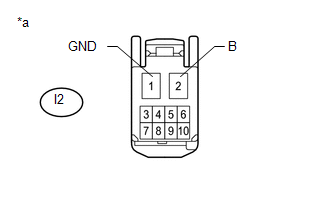

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Power Window Regulator Motor Assembly LH (for Driver Door))

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  6

1. Disconnect the h1 multiplex network master switch assembly connector.
2. Disconnect the I2 power window regulator motor assembly LH (for driver door) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   h1-20 (UP) - I2-10 (UP)	Always	Below 1 Ω
   h1-15 (DOWN) - I2-7 (DOWN)	Always	Below 1 Ω
   h1-20 (UP) - Body ground	Always	10 kΩ or higher
   h1-15 (DOWN) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  7

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the power window regulator motor assembly LH (for driver door). (Refer to REMOVAL [08/2015 - ] ).
2. Check that the window regulator motor moves smoothly as follows.
   NOTE:

   • Do not apply positive (+) battery voltage to any terminal other than terminal 2 (B) to avoid damaging the pulse sensor inside the motor.

   • Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor to the door.

   OK

   Measurement Condition	Specified Condition
   Connect the positive (+) battery terminal to terminal 2 (B), and connect the negative (-) battery terminal to terminal 1 (GND), and keep them connected for 3 seconds or more. With terminals 2 (B) and 1 (GND) connected to the battery, connect the negative (-) battery terminal to terminal 10 (UP). Disconnect and reconnect the negative (-) battery terminal to terminal 10 (UP) within 1 second.	Motor gear rotates clockwise (Up)
   Connect the positive (+) battery terminal to terminal 2 (B), and connect the negative (-) battery terminal to terminal 1 (GND), and keep them connected for 3 seconds or more. With terminals 2 (B) and 1 (GND) connected to the battery, connect the negative (-) battery terminal to terminal 7 (DOWN). Disconnect and reconnect the negative (-) battery terminal to terminal 7 (DOWN) within 1 second.	Motor gear rotates counterclockwise (Down)

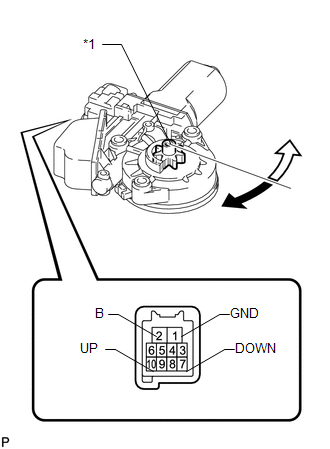

   TEXT IN ILLUSTRATION



   *1	Motor Gear
   	Clockwise
   	Counterclockwise

Result:

OK

REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

(Refer to REMOVAL [08/2015 - ] )

Result:

NG

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (FOR DRIVER DOOR)

(Refer to REMOVAL [08/2015 - ] )
